Description

Download Product Datasheet

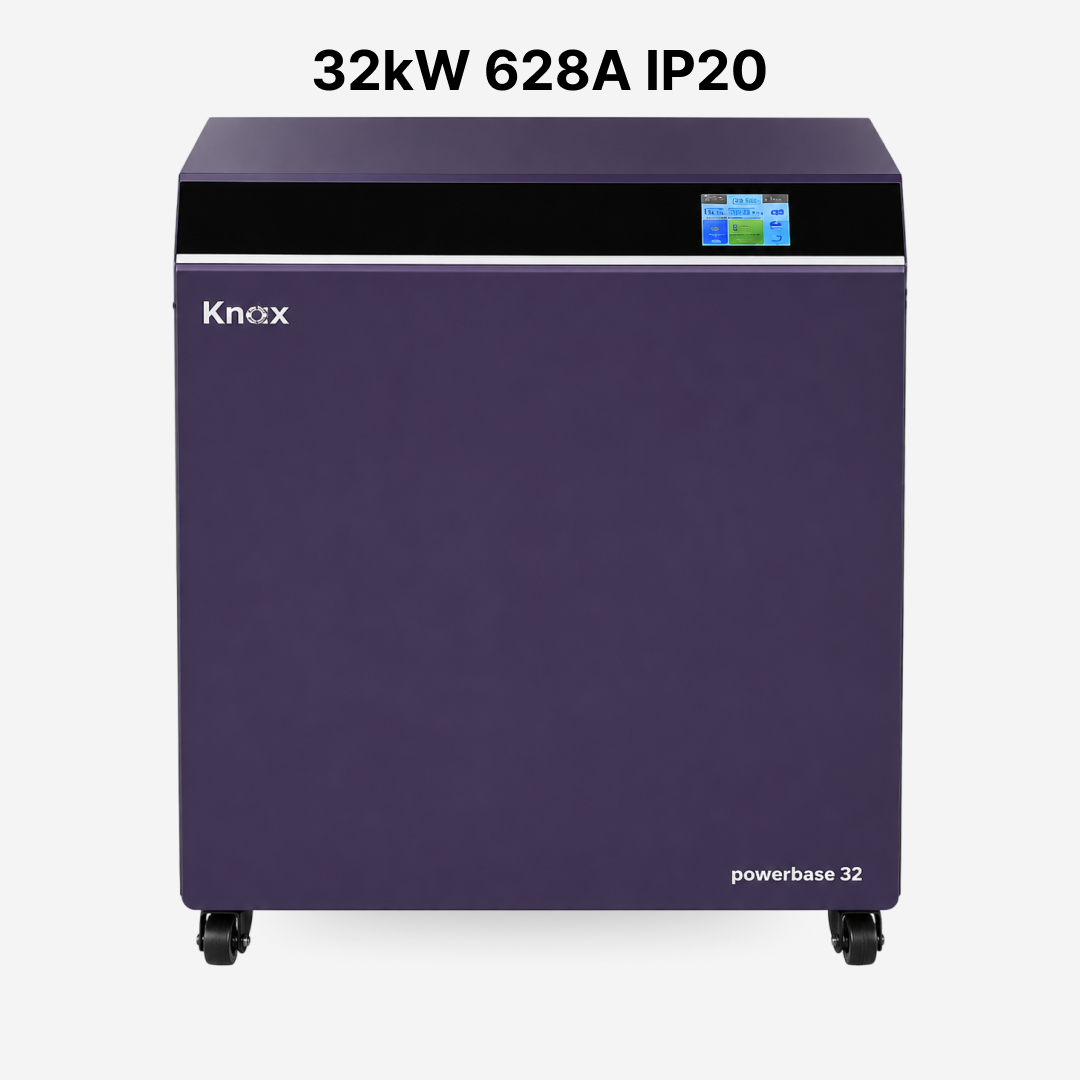

Powerbase 32 - 51.2V 628Ah LiFePO4 Battery

Overview

The Powerbase 32 is a high-capacity Lithium Iron Phosphate (LiFePO4) battery built for reliable, long-term energy storage. With a 628Ah capacity and A-grade brand new prismatic LFP cells, it delivers safe, stable power backed by an intelligent BMS and an easy-to-read touchscreen display.

Key Features

  • A-Grade Prismatic LFP Cells - Brand new cells with built-in cell balancing for consistent performance
  • 8000+ Cycle Life - Built to last, with a 5-year manufacturer warranty
  • PACE BMS Protection - Guards against overcharge, over-discharge, overheating, low temperature, overcurrent, and short circuits
  • 4.3" HMI Touchscreen - Low power consumption, high brightness, and clear visibility from a distance
  • Parallel Connection - Connect up to 8 units together for expanded capacity
  • Metal Casing - Durable design with excellent heat dissipation for added safety
  • Certified Safety - UN38.3 and MSDS certified

Technical Specifications

Electrical Parameters

Spec Value
Battery Type LiFePO4 (LFP)
Nominal Voltage 51.2 V
Nominal Capacity 628 Ah
Energy 32,153.6 Wh
Charge Cut-off Voltage 58.4 V
Discharge Cut-off Voltage 43.2 V
Open Circuit Voltage 50.88 ~ 53.6 V
Max. Charge Current 150 A
Max. Discharge Current 150 A
Continuous Discharge Current 300 A
Recommended Discharge Current 300 A
Peak Discharge Current 400 A (500ms)
Charge/Discharge Rate 0.5C

Performance

Spec Value
Cycle Life 8000+ cycles
Warranty 5 years
Parallel Units Up to 8
Communication RS485, RS232, CAN
Display 4.3" HMI Touchscreen

Environmental Parameters

Spec Value
Charge Temperature 0°C ~ +55°C
Discharge Temperature -20°C ~ +60°C
Storage Temperature -5°C ~ 0°C / 35°C ~ 45°C (up to 2 months); 5°C ~ 35°C (up to 3 months, optimum); 15°C ~ 35°C (up to 6 months)
Relative Humidity 60% ± 20% RH
Ingress Protection IP20

Mechanical Parameters

Spec Value
Connection Terminal Quick Plug
Dimensions (L x W x H) 760 x 400 x 760 mm
Weight 248 kg
Certificates UN38.3, MSDS
Warranty 5 years
