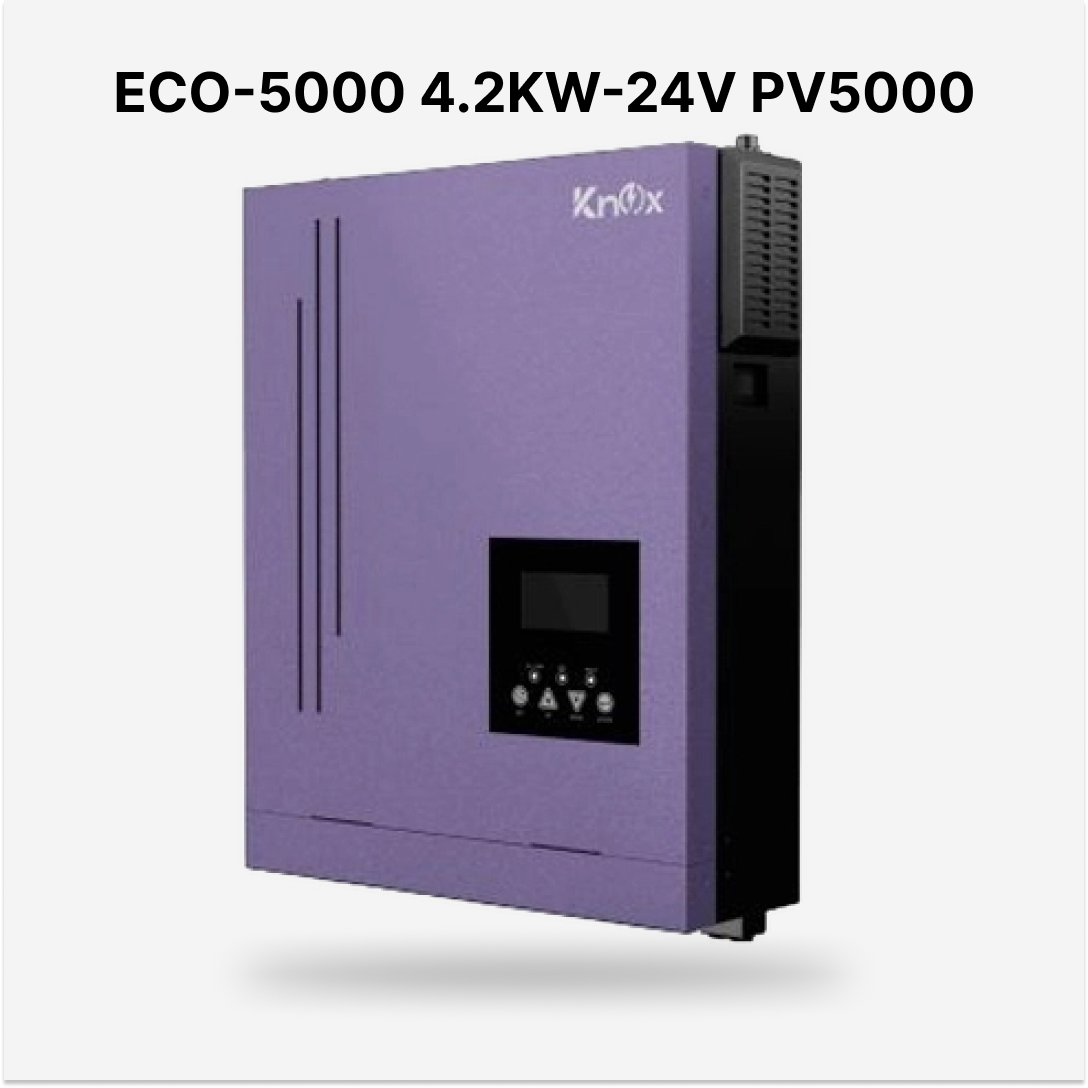

Knox Krypton ECO-5000 4.2KW-24V PV5000

Download Product Datasheet

Knox Krypton Eco 5000 | 4.2kW Hybrid Solar Inverter (24VDC)

Smart Hybrid Inverter with Batteryless Operation & Dual Output

The Knox Krypton Eco 5000 is a 4.2kW smart hybrid solar inverter designed for modern solar systems. With support for batteryless operation, advanced MPPT solar control, dual AC output, and intelligent energy management, it’s ideal for homes and small businesses seeking reliable solar power with or without batteries.

Key Features

• Rated Power: 5000VA / 5000W

• Batteryless Operation: Run directly on solar + grid without batteries

• Pure Sine Wave Output: Safe for sensitive electronics

• Dual Output Support:

  • Smart Load Output: Priority for essential loads

  • Heavy Load Output: Non-priority loads disconnected during outages

• Advanced PV Controller: 18A MPPT charge controller with smart protections

• Intelligent Load Management: Automatically balances power between grid, solar, and load

• Grid Feed Support: Enables net metering (if available)

• Battery Equalization: Improves performance & lifespan

• Smart Battery Management System: Prevents overcharge, deep discharge & overheating

• Anti-Dust Kit: Designed for harsh environments

Communication Interfaces

• Communication Ports: RS232 / RS485

• Optional Connectivity: Built-in Wi-Fi

• Reserved Port: For external Battery Management System (BMS)

Charging Capabilities

• Max Combined Charging Current: Up to 100A

  • Solar Input: 80A

  • AC Input: 80A

• Wide PV Input Range: 30V – 400V

Technical Specifications

• Model: Krypton Eco 5000 (4kW-24-pV5000-TWIN)

• Battery Voltage: 24VDC

• Surge Power Capacity: 8400VA

• Efficiency: 93%

• Dimensions (mm): 115 × 300 × 435

• Weight: 9 kg
