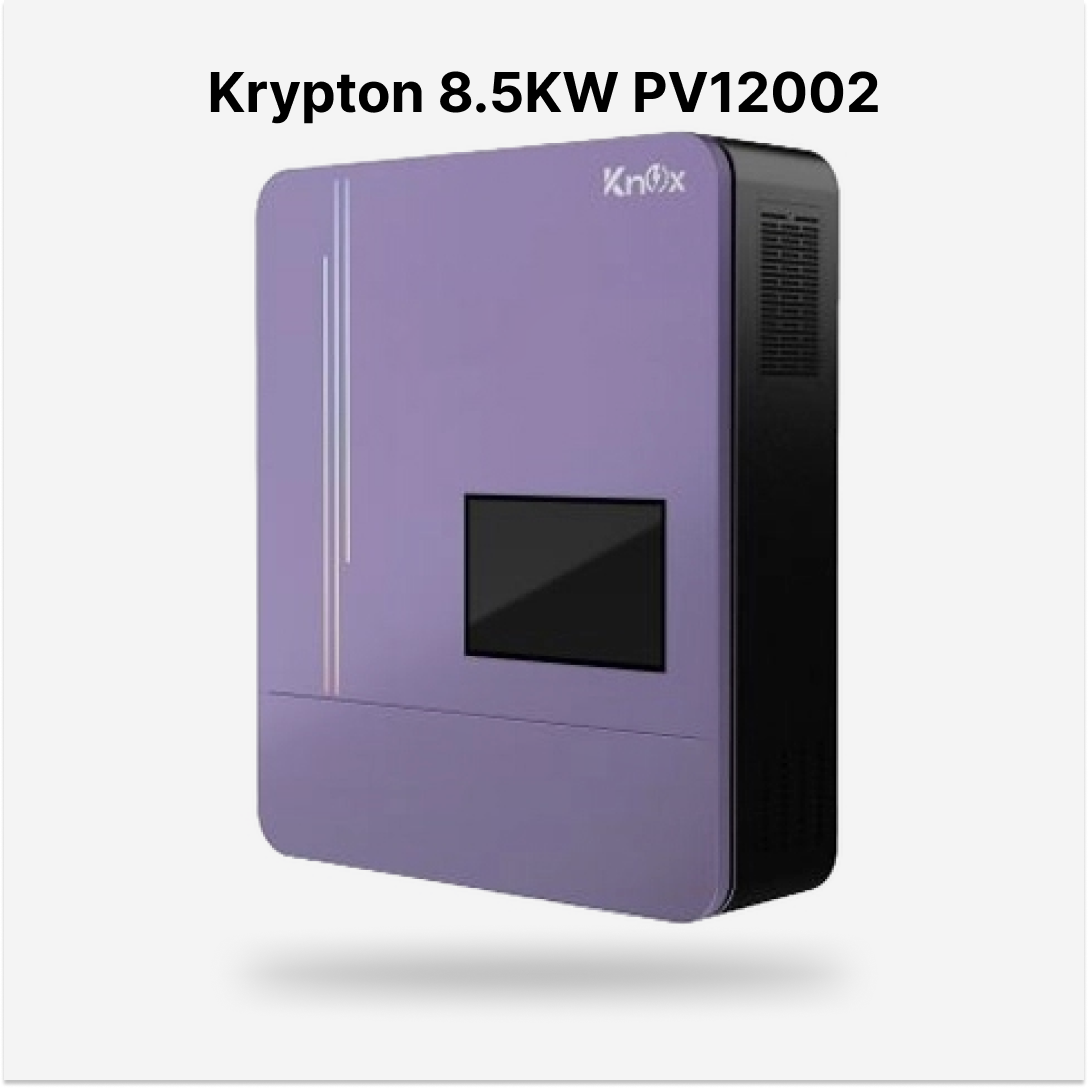

Knox Krypton 8.5kw PV12002 IP21 Hybrid Solar Inverter

Download Product Datasheet

Knox Krypton 12002 | 8.5kW Hybrid Solar Inverter

High-Power Smart Inverter with Dual MPPT & Intelligent Load Control

The Knox Krypton 12002 is a next-generation 8.5kW hybrid solar inverter built for large homes and commercial spaces. With dual MPPT, advanced energy control, and real-time smart features, it offers maximum flexibility, battery independence, and future-ready integration—all in a sleek, touch-controlled design.

Key Features

• Rated Power: 8.5kW

• Dual MPPT: Allows independent tracking of two PV arrays

• Wide PV Input Range: 90VDC – 450VDC

• High PV Input Current: Up to 30A per MPPT

• Batteryless Operation: Run directly on solar + grid power

• Dual AC Outputs:

  • Priority Load Output – Always powered

  • Heavy Load Output – Cut off during low power

• Built-in Wi-Fi: Real-time mobile monitoring via iOS & Android

• RGB Status Lights: At-a-glance system health indicators

• Touchscreen Control: Large 7” HMI display

• USB OTG Support: For firmware updates and data transfer

• Built-in DC Output: Run DC devices (fans, LEDs, routers) without external converters

Smart System Compatibility

• Communication Ports: RS485, CAN-BUS, RS232

• Generator Compatible: Auto-switching between solar, grid, or generator

• Parallel Operation: Connect up to 6 units for higher capacity systems

Durability & Maintenance

• Anti-Dust Kit: Protects internal components

• Replaceable Cooling Fan: Tool-free maintenance
