Download Product Datasheet

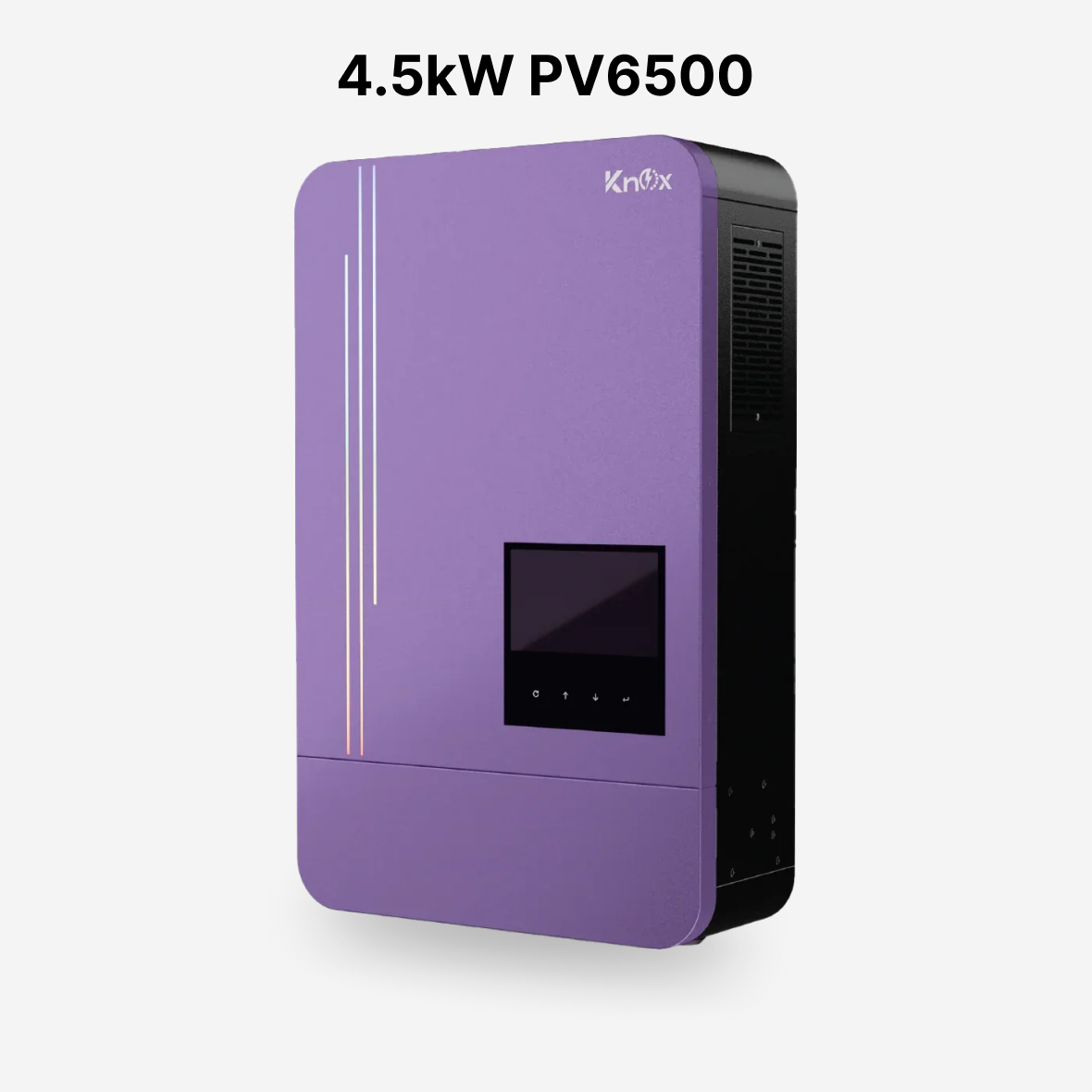

KNOX Krypton 6500 4.5kW Hybrid Solar Inverter

Description

The KNOX Krypton 6500 4.5kW Hybrid Solar Inverter (4.5kW-24-pV6500-TWIN) is a single-phase on-grid inverter with energy-storage functionality, designed for residential and small commercial solar applications. It supports up to 6,500W of PV input, with a wide PV voltage range and MPPT technology for efficient solar energy harvesting.

The Krypton 6500 features dual outputs for intelligent load management, built-in Wi-Fi monitoring, battery-independent operation, grid-feeding capability, configurable AC/PV output priorities, and compatibility with utility mains or generator input. Its built-in anti-dust kit, replaceable fan and BMS communication support make it practical for long-term system operation.

Key Features

• 4.5kW rated output power
• 6,500W maximum PV input power
• Single-phase operation
• Dual outputs for smart load management
• MPPT solar charging
• Wide PV input voltage range
• Maximum PV input current up to 27A
• Built-in Wi-Fi for mobile monitoring
• Android/iOS app support
• USB On-the-Go functionality
• Battery-independent operation
• Grid-feeding capability
• Compatible with utility mains or generator input
• Configurable AC/PV output usage, timer and prioritization
• Reserved RS485 BMS communication
• Replaceable fan for easy maintenance
• Built-in anti-dust kit
• Built-in DC output for DC fans, LED bulbs, routers and similar loads
• Pure sine wave output
• Parallel operation is not specified in the provided datasheet

Product Specifications

Product Details

The KNOX Krypton 6500 4.5kW Hybrid Solar Inverter provides a flexible combination of solar generation, battery energy storage and grid interaction. With 6.5kW PV input capacity and up to 120A solar charging current, it is designed to make efficient use of available solar power.

Its intelligent load-management features allow users to configure AC/PV output priorities, while built-in Wi-Fi enables convenient mobile monitoring. The inverter also supports generator input, RS485 BMS communication and a built-in DC output for essential low-power DC devices.
