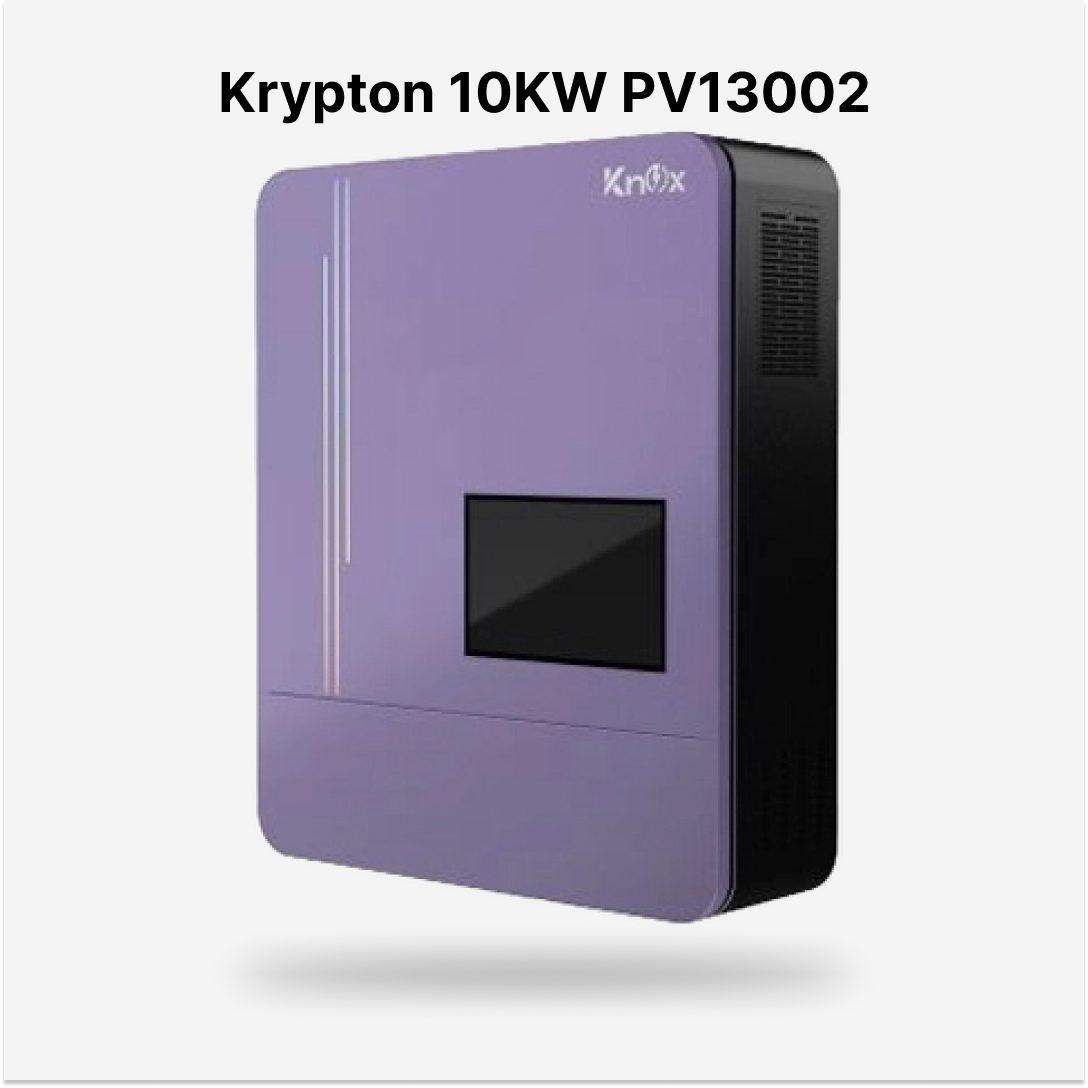

Knox Krypton 10kw PV13002 IP21 Hybrid Solar Inverter

Download Product Datasheet

Knox Krypton 13002 | 10kW Hybrid Solar Inverter
High-Performance Smart Inverter with Dual MPPT & Load Prioritization

The Knox Krypton 13002 is a 10kW hybrid solar inverter designed for high-demand residential and commercial energy systems. With intelligent load management, dual MPPT input, and full remote monitoring via Wi-Fi, it delivers powerful, flexible energy control. Its RGB lighting, wide PV input, and battery-independent operation make it a future-proof solution for clean energy users.

Key Features

• Rated Power: 10kW

• Dual MPPT: Efficient tracking for two independent solar arrays

• Wide PV Input Range: 90VDC – 450VDC

• High PV Current: Up to 30A per MPPT

• Batteryless Operation: Run on solar + grid without batteries

• Dual AC Outputs:

  • Smart Load Output – Continuous power for essentials

  • Heavy Load Output – Shut off to conserve battery/solar

• 7” Touch HMI Screen: Full inverter control and visualization

• Built-in Wi-Fi Monitoring: Real-time tracking via mobile app

• USB OTG Support: For data and firmware upgrades

• DC Output Ports: Run low-voltage DC appliances directly

Advanced Compatibility

• Communication: RS485, RS232, CAN-BUS (BMS & future expansion)

• Supports Utility + Generator Inputs

• Parallel Ready: Expandable up to 6 units for higher loads

Durability & Maintenance

• Tool-Free Replaceable Fan Design

• Built-in Anti-Dust Kit: Protection in harsh environments
