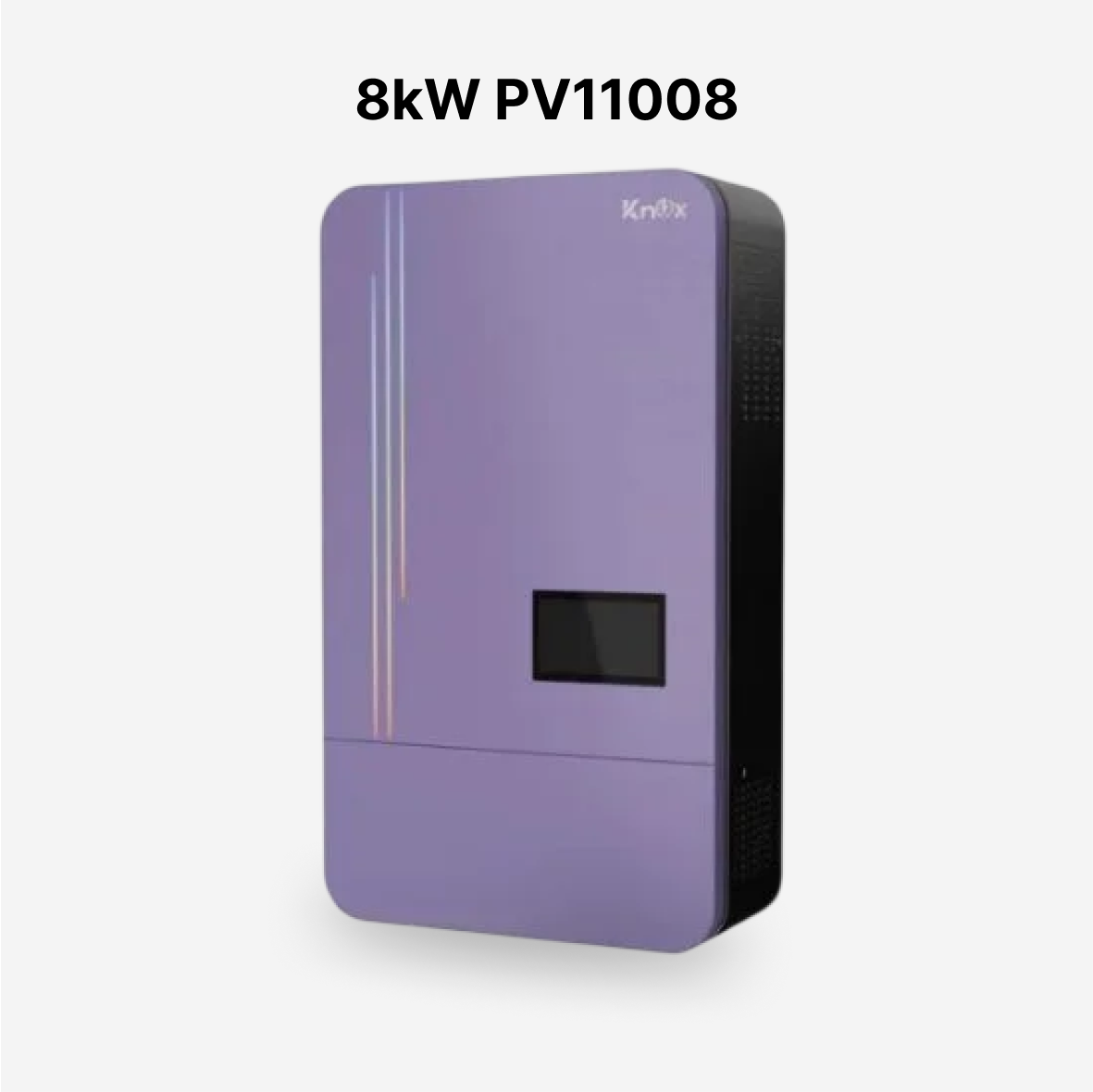

KNOX Krypton 11008 8kW Single-Phase Hybrid Solar Inverter

Description

The KNOX Krypton 11008 8kW Hybrid Inverter is a reliable single-phase hybrid inverter designed for residential and small commercial solar energy systems. With 12,000W maximum PV input power, dual MPPT technology, and a wide PV input voltage range, it efficiently manages solar generation while supporting grid and generator integration.

The Krypton 11008 features dual outputs for intelligent load management, built-in Wi-Fi for mobile monitoring, a large HMI touch screen, batteryless operation, configurable AC/PV output priorities, and grid-feeding capability. It also supports parallel operation of up to 9 units, providing excellent scalability for higher-power installations.

Key Features

• 8kW rated output power
• 12,000W maximum PV input power
• Dual MPPT technology
• 2 × 22A maximum PV input current
• 2 × 30A PV short-circuit current
• MPPT voltage range of 120VDC–430VDC
• Wide PV input voltage range of 90VDC–450VDC
• Dual outputs for intelligent load management
• Grid-feeding capability
• Batteryless operation
• Compatible with utility mains or generator input
• Built-in Wi-Fi for mobile monitoring
• Large HMI touchable screen
• RGB status indication
• USB-A OTG for firmware upgrades
• Reserved BMS communication port
• RS485, CAN-BUS and RS232 communication
• Replaceable fan for easier maintenance
• CT function for self-consumption control (optional)
• Parallel operation of up to 9 units
• Built-in anti-dust kit
• Configurable AC/PV output usage, timer and prioritization

Product Specifications

Product Details

The KNOX Krypton 11008 8kW Hybrid Solar Inverter combines high PV capacity, dual MPPT tracking and flexible energy-management functions in a compact single-phase design. Its 12kW PV input capacity allows additional solar generation to be connected to maximize energy harvesting.

The inverter supports 48V battery systems, MPPT solar charging up to 150A, and AC charging up to 120A. Its dual-output architecture enables intelligent load prioritization, while grid-feeding and generator compatibility provide flexibility for different energy-system configurations.

For larger installations, up to 9 Krypton 11008 units can operate in parallel. Built-in Wi-Fi, touchscreen HMI, BMS communication and multiple communication interfaces provide convenient monitoring, configuration and system integration.
