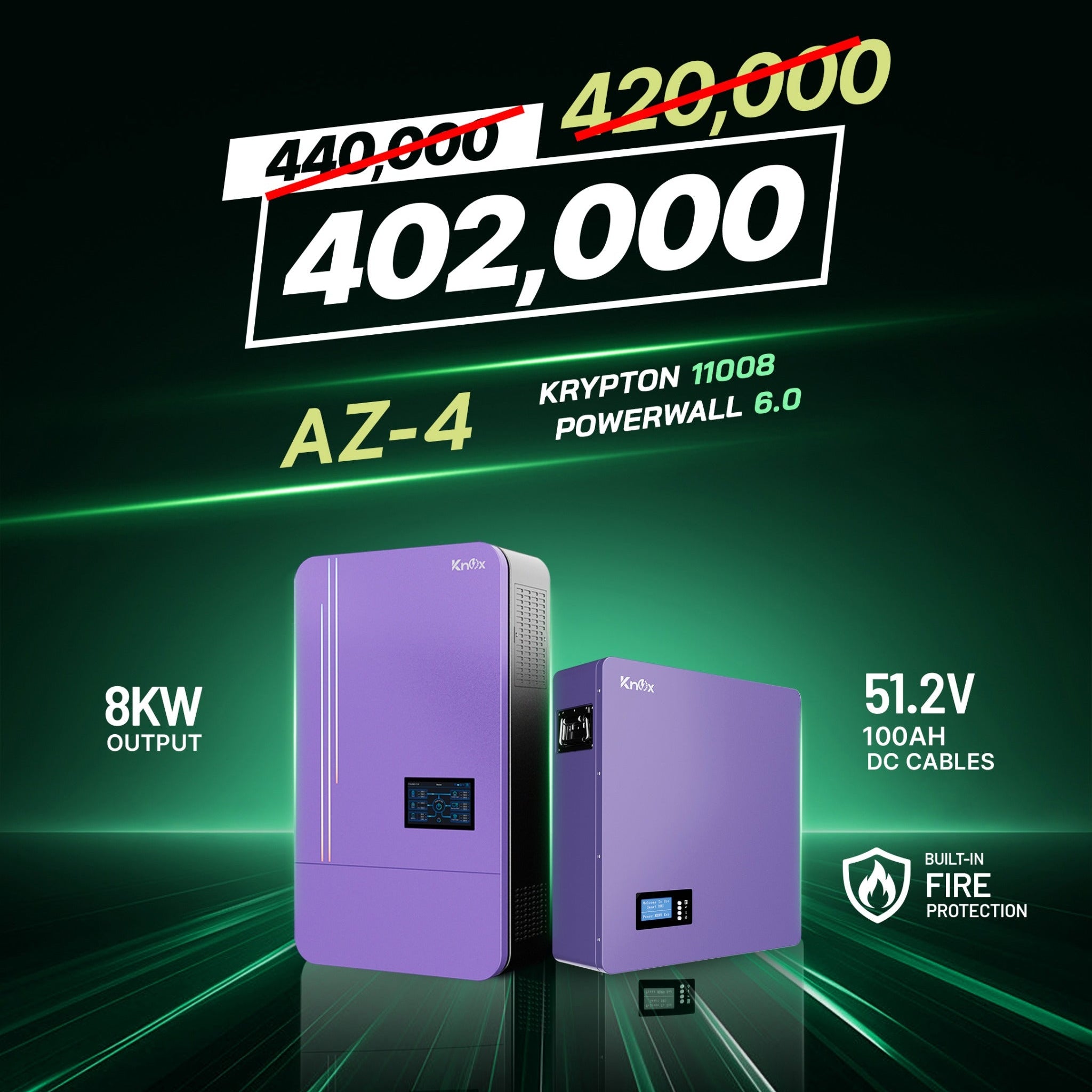

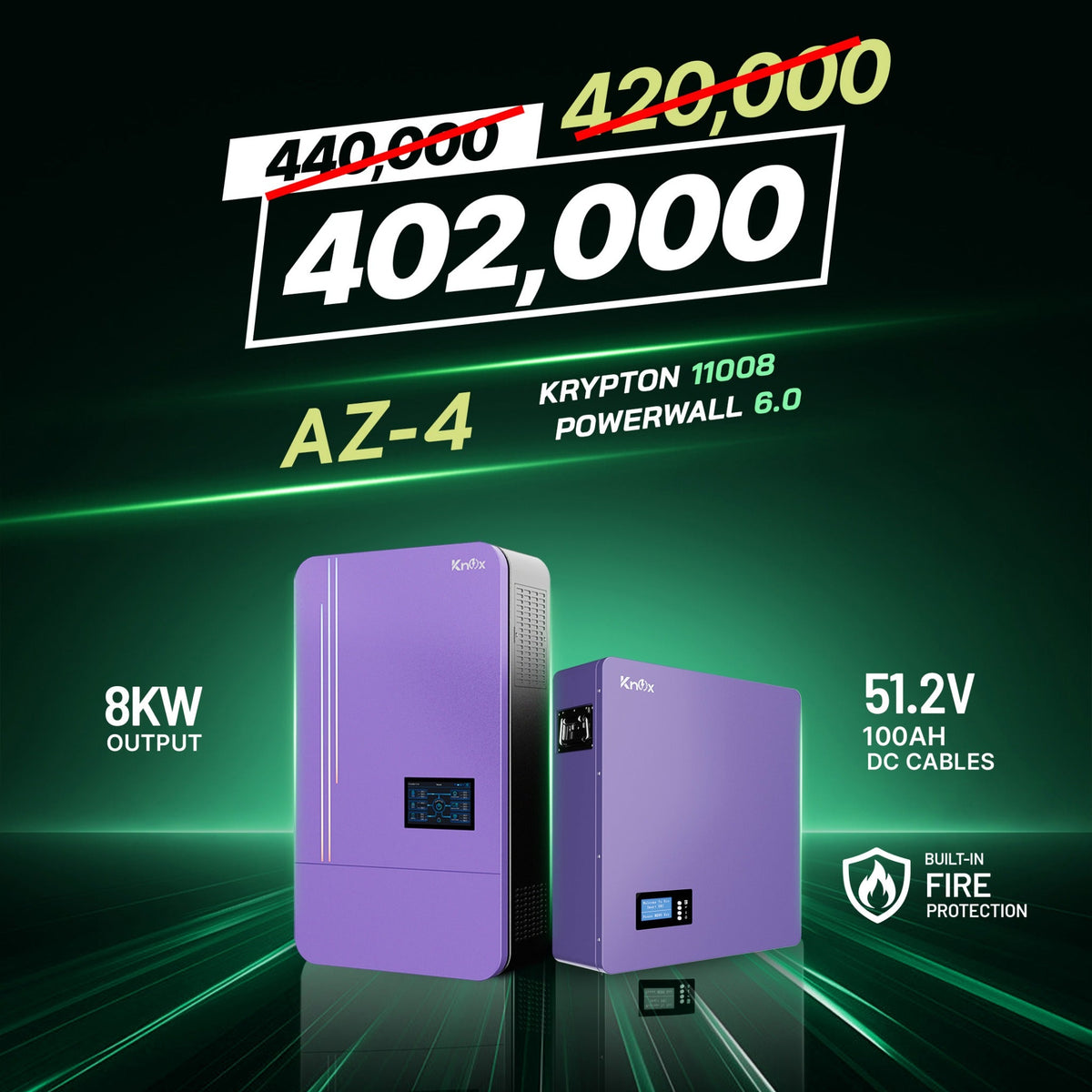

Krypton 11008 8kW Hybrid Solar Inverter with Grid Feeding (PV12000 Twin MPPT)

Key Features:

• 8kW rated output power

• Supports up to 12,000W solar PV input

• Dual MPPT with 22A input current per tracker

• Wide PV voltage range: 90VDC–450VDC

• Battery-independent operation

• Grid-feeding functionality

• Intelligent dual output for smart load management

• Built-in Wi-Fi for remote monitoring via Android and iOS

• Large touchscreen HMI display with RGB status indicators

• USB OTG firmware upgrade support

• Configurable AC and PV output priority

• Compatible with utility grid and generator input

• Built-in anti-dust protection

• Optional CT function for self-consumption

• Parallel operation with up to 9 inverters

• Replaceable cooling fan for easy maintenance

• Reserved BMS communication ports (RS485, CAN Bus, RS232)

Technical Specifications

PV Input

• Maximum PV Input Power: 12,000W

• Maximum DC Voltage: 500VDC

• MPPT Voltage Range: 120VDC–430VDC

• Start-up Voltage: 120VDC

• Initial Feeding Voltage: 150VDC

• MPPT Trackers: 2

• Maximum Input Current: 2 × 22A

• Maximum Short Circuit Current: 2 × 30A

AC Output

• Rated Output Power: 8,000W

• Output Voltage: 220V / 230V / 240V AC

• Nominal Output Current: 34.8A

• Pure Sine Wave Output

• Power Factor: Greater than 0.99

• Maximum Conversion Efficiency: 95%

• DC to AC Efficiency: 93%

Battery & Charging

• Battery Voltage: 48VDC

• Floating Charge Voltage: 54VDC

• Overcharge Protection: 63VDC

• Solar Charging Current: Up to 150A

• AC Charging Current: Up to 120A

• Maximum Charging Current: 120A

Backup Performance

• Surge Power: 13,000VA

• Transfer Time:

  • 10ms for computers

  • 20ms for home appliances

Communication

• Built-in Wi-Fi

• USB

• RS232

• RS485

• Dry Contact

• BMS Communication Support

Physical Specifications

• Dimensions: 140 × 295 × 468 mm

• Weight: 13.5 kg

Operating Conditions

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -15°C to 60°C

• Humidity: 0–90% RH (Non-condensing)

Certifications

• IEC 62109-1

• IEC 62109-2

• IEC 61683

• IEC 61682

• Low Voltage Directive 2014/35/EU


  Powerwall 6.0 | LIO 5.20-IP20 Lithium-ion Battery:
  Key Features:

  Category	Details
  Model	LIO 5.20-IP20
  Battery Type	LiFePO₄
  Nominal Voltage	51.2V
  Nominal Capacity	100Ah
  Total Energy	5120Wh
  Configuration	16S1P
  Max Charge Voltage	57.6V
  Discharge Cut-off Voltage	41.6V
  Max Charge/Discharge Current	100A
  Peak Discharge Current	120A @ 2s
  Recommended Discharge Current	100A
  Recommended Depth of Discharge	80%
  Cycle Life	>6000 (80% DoD @ 25°C, 0.5C)
  Display	LED
  Communication Ports	RS485, RS232, CAN
  Mounting	Wall-mounted
  Enclosure Rating	IP20
  Terminal Type	M6
  Dimensions (L×W×H)	533 × 500 × 150 mm
  Weight	45.1 ± 0.5 kg
  Operating Temp. (Charge)	0°C to +55°C
  Operating Temp. (Discharge)	-20°C to +60°C
  Storage Temp. (Optimal)	5°C to 35°C
  Humidity Range	40% – 80% RH
  Certifications	UN38.3, MSDS
