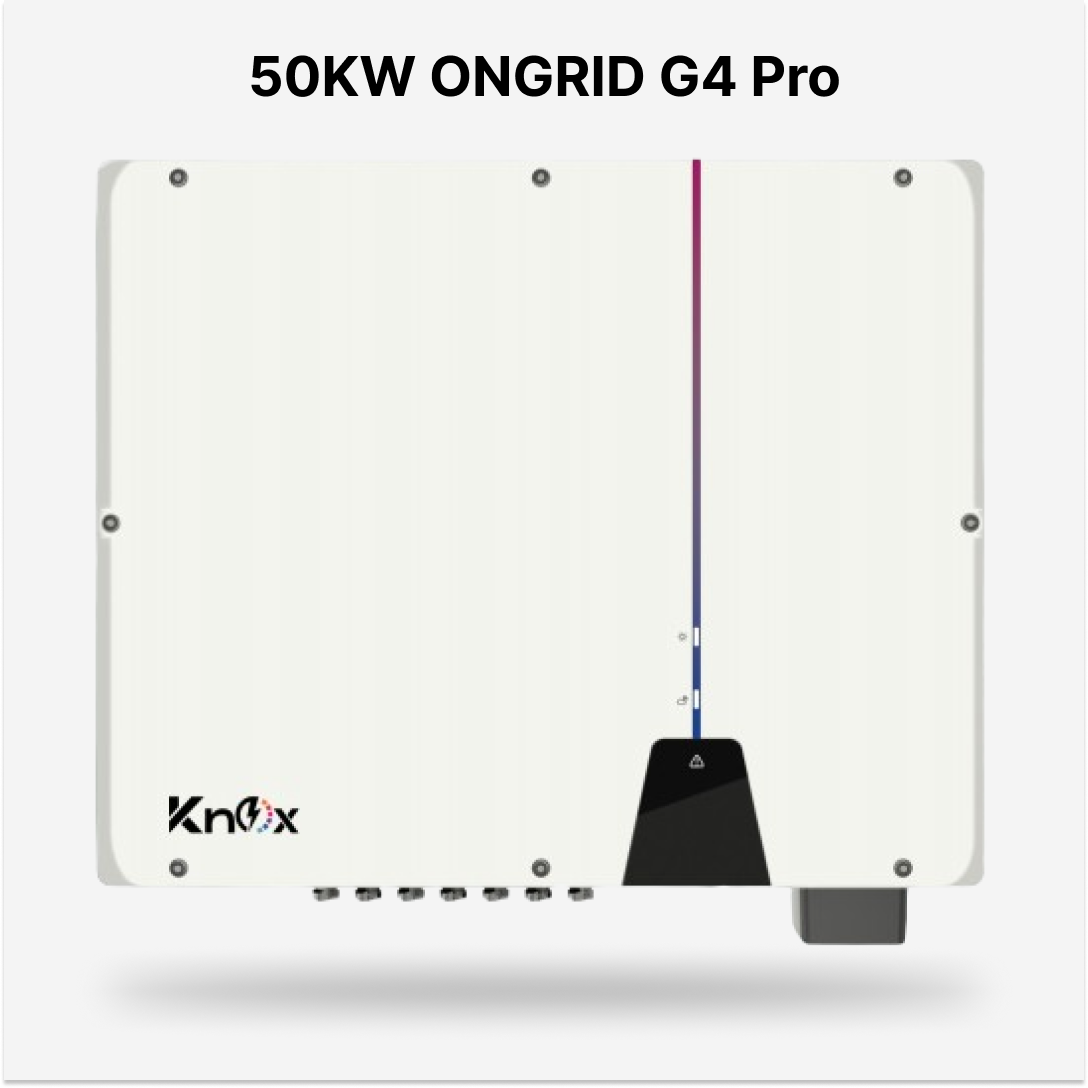

Knox 50KW G4 Pro Ongrid Solar Inverter

Download Product Datasheet

@kamalsolarhouse Knox OnGrid Solar Inverter 40kw 50kw 60kw G4 pro-Model Ready stock available at Kamal Solar House Multan | Best affordable solar inverter for Industries, Poultry sheds, Tubewells, or Flour Mills #kamalsolarhouse #solarinverter #solarsystem #solarpanels #knoxsolar #knoxinverter ♬ original sound - Kamal Solar House

Xerox G4 Pro 50kW Three Phase Inverter

High-Capacity, Smart Inverter for Large-Scale Solar Installations

The Xerox G4 Pro 50kW is a powerful and intelligent three-phase inverter tailored for commercial and industrial solar energy systems. Built to deliver high conversion efficiency and operational reliability, it offers intelligent features for remote control, flexible installation, and robust energy output management.

Key Features:

• Supports 150% PV array oversizing for better energy yield

• Wide MPPT voltage range: 180V to 1000V

• ShadeSol technology enhances generation under partial shading

• IP66 design suitable for both indoor and outdoor installations

• Quick setup, monitoring, and commissioning via AI Solar App

• Compact, wall-mounted design for space efficiency

• Smart communication with built-in RS485, Wi-Fi, LAN, and 4G options

• Meets international performance and safety standards

Technical Highlights:

• Rated Output Power: 50000W

• Rated Apparent Power: 50000VA

• Max PV Input (STC): 75000Wp

• MPP Voltage Range: 180V – 1000V

• Rated Input Voltage: 630V

• Max Input Voltage: 1100V

• Initial Feed-in Voltage: 200V

• Minimum Input Voltage: 160V

• AC Nominal Voltage: 230V / 400V

• AC Frequency Range: 50Hz (adjustable 45–55Hz)

• Max Output Current: 72.5A

• Rated Output Current: 79.7A

• Max Efficiency: 98.7%

• Euro Efficiency: 98.3%

• Power Factor Range: 0.8 leading to 0.8 lagging

• THD: < 3%

Protection & Safety:

• Ground fault monitoring

• Integrated DC switch

• All-pole residual current monitoring

• Anti-islanding protection

• Surge protection: Type II

• DC reverse polarity protection

• AC short circuit protection

• Protection Class: I (AC), II (DC)

Design & Build:

• Topology: Non-isolated

• Cooling Method: Active cooling

• Self Consumption (Night): < 1W

• Environmental Category: 4K4H (non-condensing)

• Protection Rating: IP66

• Operating Temperature: -25°C to +60°C

• Max Installation Altitude: 3000m

• Dimensions (W x H x D): 574 × 513.5 × 234.5 mm

• Weight: 30.5 kg

• Mounting: Wall-mounted bracket

Communication & Monitoring:

• Interface Options: RS485, Wi-Fi, LAN, 4G

• LED Indicators: Status, Fault, Communication

• Smart Monitoring with AI Solar App
