Jinko 585W N-Type Topcon Double Glass Solar Panel

Download Product Datasheet

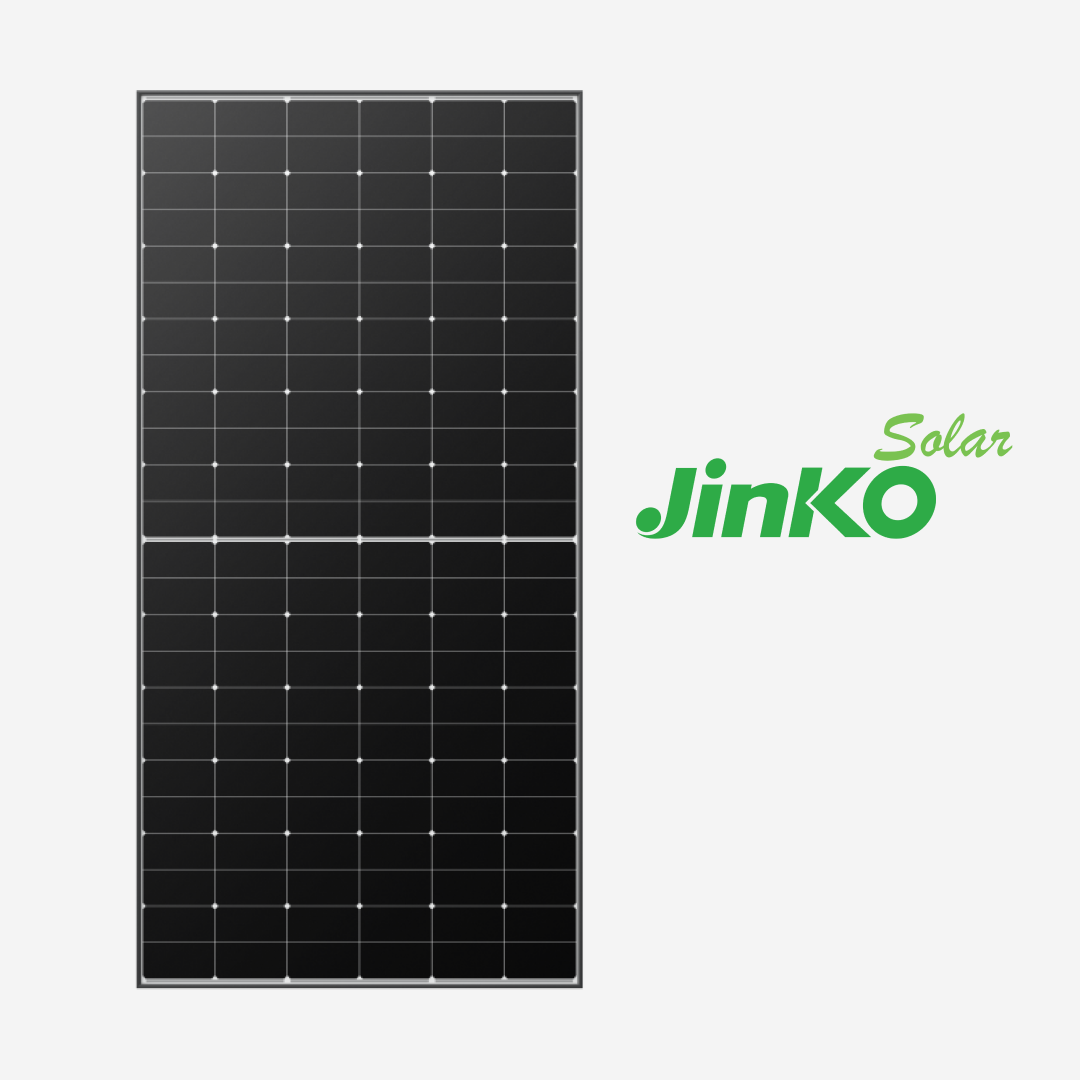

Jinko 585W Tiger Neo N-Type Solar Panel

The Jinko Tiger Neo 585W is a high-performance N-Type monocrystalline solar panel designed for residential, commercial, and utility-scale solar installations. It features SMBB technology for improved light trapping, current collection, power output, and long-term reliability.

Key Features

• Power Output: 585W

• Cell Technology: N-Type Monocrystalline

• Cell Configuration: 144 cells (6 × 24)

• Module Type: Bifacial with Dual Glass

• Module Efficiency: Up to approximately 22.6%

• Power Tolerance: 0 to +3%

• Front Glass: 2.0mm anti-reflection coated glass

• Back Glass: 2.0mm heat-strengthened glass

• Dimensions: 2278 × 1134 × 30 mm

• Maximum System Voltage: 1500V DC

• Maximum Series Fuse Rating: 30A

• IP68 Rated Junction Box

• Wind Load: Up to 2400 Pa

• Snow Load: Up to 5400 Pa

• Operating Temperature: -40°C to +85°C

Warranty and Performance

The module comes with a 12-year product warranty and a 30-year linear power warranty. It has an annual degradation rate of only 0.40% over 30 years, supporting reliable long-term energy production.

The Tiger Neo series incorporates Hot 2.0 technology and PID resistance to improve module reliability and reduce degradation under demanding operating conditions.

Suitable for solar systems requiring high power output, reliable performance, and long-term energy generation.
