Download Product Datasheet

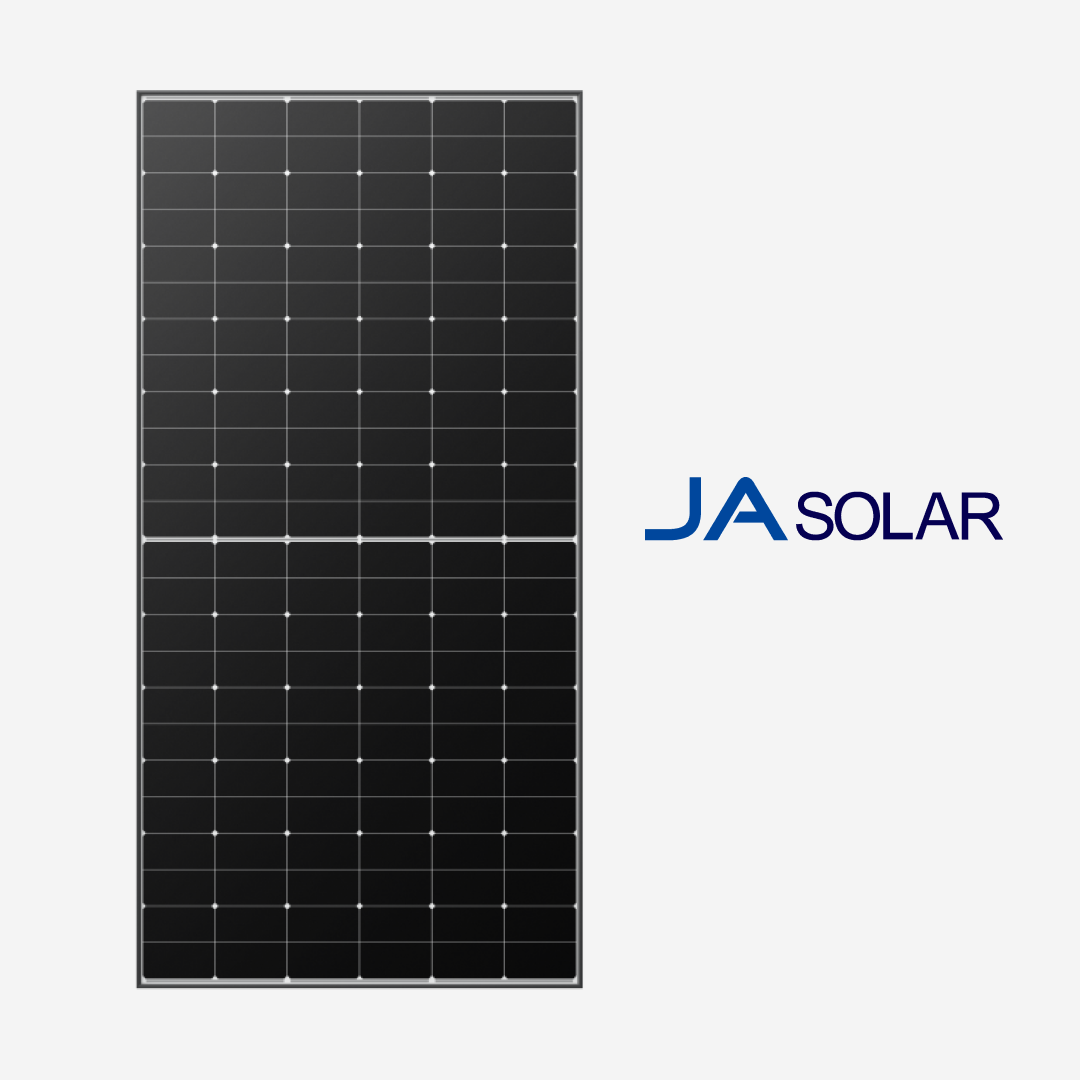

JA Solar Deep Blue 3.0 585W JAM72S30-585/LR Solar Panel

Description

The JA Solar Deep Blue 3.0 585W JAM72S30-585/LR Solar Panel is a high-efficiency N-type? Wait, datasheet says P-type monofacial. It uses MBB half-cell technology to deliver high power output, lower resistive losses, and improved shading performance. With a rated output of 585W and module efficiency of 22.1%, it is designed for reliable energy generation in residential, commercial, and utility-scale solar installations.

The panel features 144 monocrystalline cells, a durable 3.2mm front glass, and a robust construction designed to withstand challenging environmental conditions. It supports a maximum system voltage of 1000V/1500V DC and operating temperatures from -40°C to +85°C, providing dependable performance across a wide range of climates.

Key Features

• 585W maximum power output
• JA Solar Deep Blue 3.0 series
• JAM72S30-585/LR model
• P-type monocrystalline solar cells
• MBB half-cell technology
• 22.1% module efficiency
• Monofacial solar panel
• Lower resistive losses
• Better shading tolerance
• 144 cells (6 × 24)
• 0 to +3% power tolerance
• 25-year linear power output warranty
• 12-year product warranty
• High mechanical load tolerance
• Suitable for residential, commercial, and utility-scale installations

Product Specifications

Product Details

The JA Solar Deep Blue 3.0 585W Solar Panel combines MBB half-cell technology with high-efficiency monocrystalline cells to provide strong power generation and reduced resistive losses. The 585W version achieves a module efficiency of 22.1%, making it suitable for installations where high power output and efficient use of available space are important.

Its 3.2mm front glass, IP68-rated junction box, and high mechanical load capacity provide reliable operation in demanding outdoor environments. The panel is rated for operation between -40°C and +85°C and supports a maximum system voltage of 1000V/1500V DC.

JA Solar provides a 12-year product warranty and 25-year linear power output warranty, supporting long-term performance and reliability. The datasheet also lists IEC 61215, IEC 61730, UL 61215, and UL 61730 certifications.
