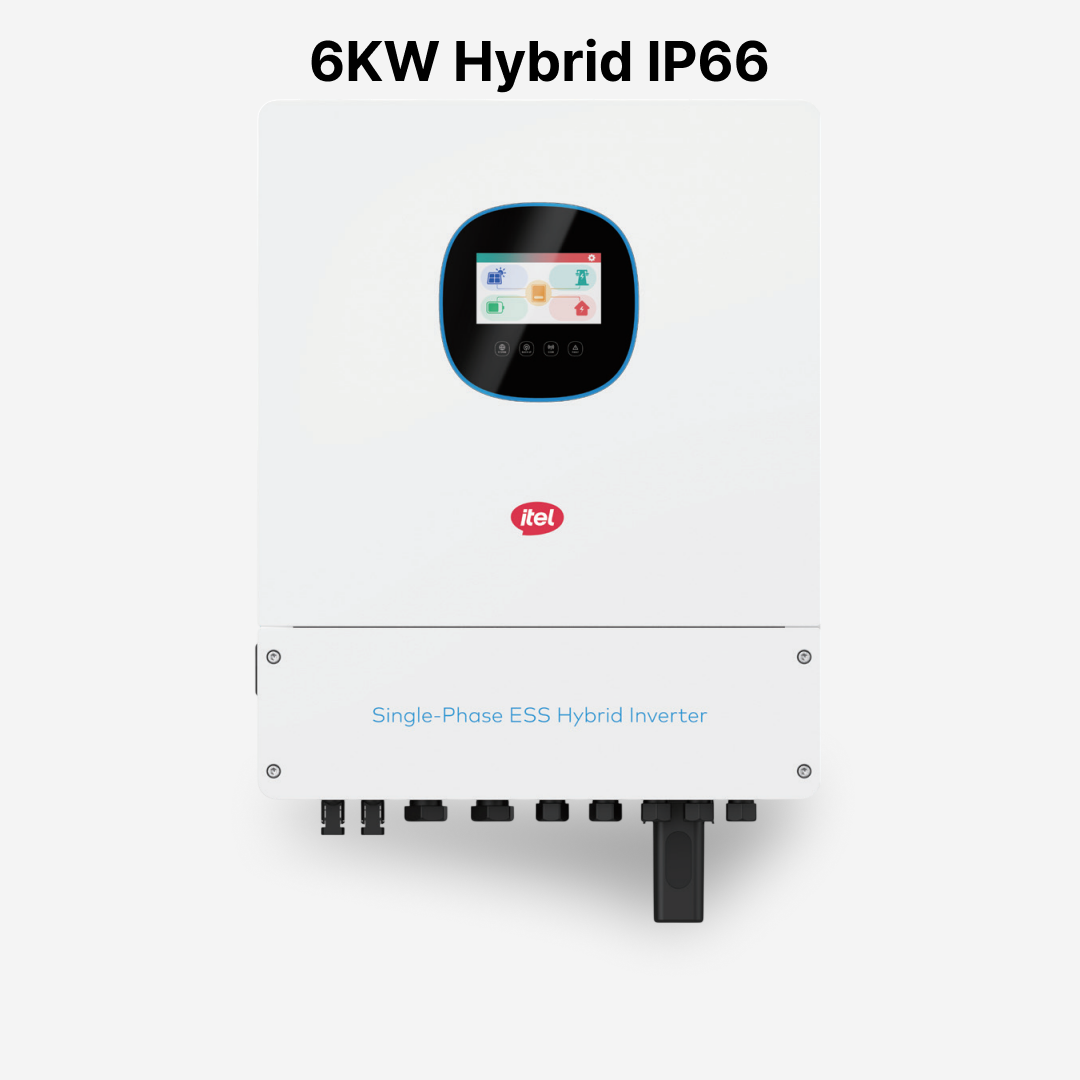

IHY-6KL1A – 6kW Hybrid Inverter (Single Phase, IP66)

Detailed Technical Specifications

General Overview

• Model: IHY-6KL1A
• Type: Hybrid Inverter (Single Phase)
• Rated Output Power: 6 kW
• Max Apparent Power: 6 kVA
• Ingress Protection: IP66 (fully dustproof & waterproof)
• Parallel Support: Up to 12 units

Efficiency

• MPPT Tracking Efficiency: ≥99.9%
• Max PV Conversion Efficiency: 97.6%
• European Efficiency: 97.0%
• Battery Mode Efficiency: ≥97%

PV (Solar Input)

• Max PV Input Power: 12,000 W
• Max DC Input Voltage: 500 V
• Start-up Voltage: 125 V
• MPPT Voltage Range: 150 – 450 V
• Max Input Current: 18A / 18A
• MPPT Trackers: 2

AC Input / Output (On-Grid)

• Rated Output Power: 6000 W
• Max Apparent Power: 6000 VA
• Nominal Voltage: 220 / 230 V AC
• Max Output Current: 27 A
• Max Grid Input Voltage: 380 V
• Voltage Range: 180 – 280 V
• Frequency Range: 45 – 65 Hz
• Power Factor: 0.8 Leading to 0.8 Lagging
• THDi: <3%

Backup Output (UPS Mode)

• Rated Power: 6000 W
• Max Apparent Power: 6000 VA
• Peak Power: 12,000 VA (15 sec)
• Voltage: 230 V AC
• Frequency: 50 / 60 Hz
• Switch Time: 10 ms
• THDv: <3%
• Overload Capacity: 200% (15 sec)

Battery

• Battery Type: Lead-acid / Lithium-ion / User-defined
• Rated Voltage: 48 V
• Voltage Range: 40 – 60 V
• Max MPPT Charging Current: 120 A
• Max AC Charging Current: 120 A
• Max Discharging Current: 120 A

General Specifications

• Operating Temperature: -25°C to +60°C
  • (>45°C derating applies)
• Altitude: up to 4000 m
  • (>2000 m derating applies)
• Cooling: Natural convection (fanless, silent)
• Noise Level: <40 dB

Physical Specifications

• Dimensions (D × W × H): 198 × 427 × 554 mm
• Weight: 20 kg

Communication & Smart Features

• Interfaces: WiFi / RS485 / CAN / Dry Contact
• Generator Support: Yes
• Smart Load Support: Yes
• Multi-function Output:
  • On-grid
  • Backup load
  • Smart load

Protection Features

• IP66 enclosure protection
• PV reverse polarity protection
• Insulation impedance detection
• Residual current monitoring
• Overvoltage protection
• Overload protection
• Short circuit protection
• Over temperature protection
• Surge Protection: DC Type II / AC Type III
