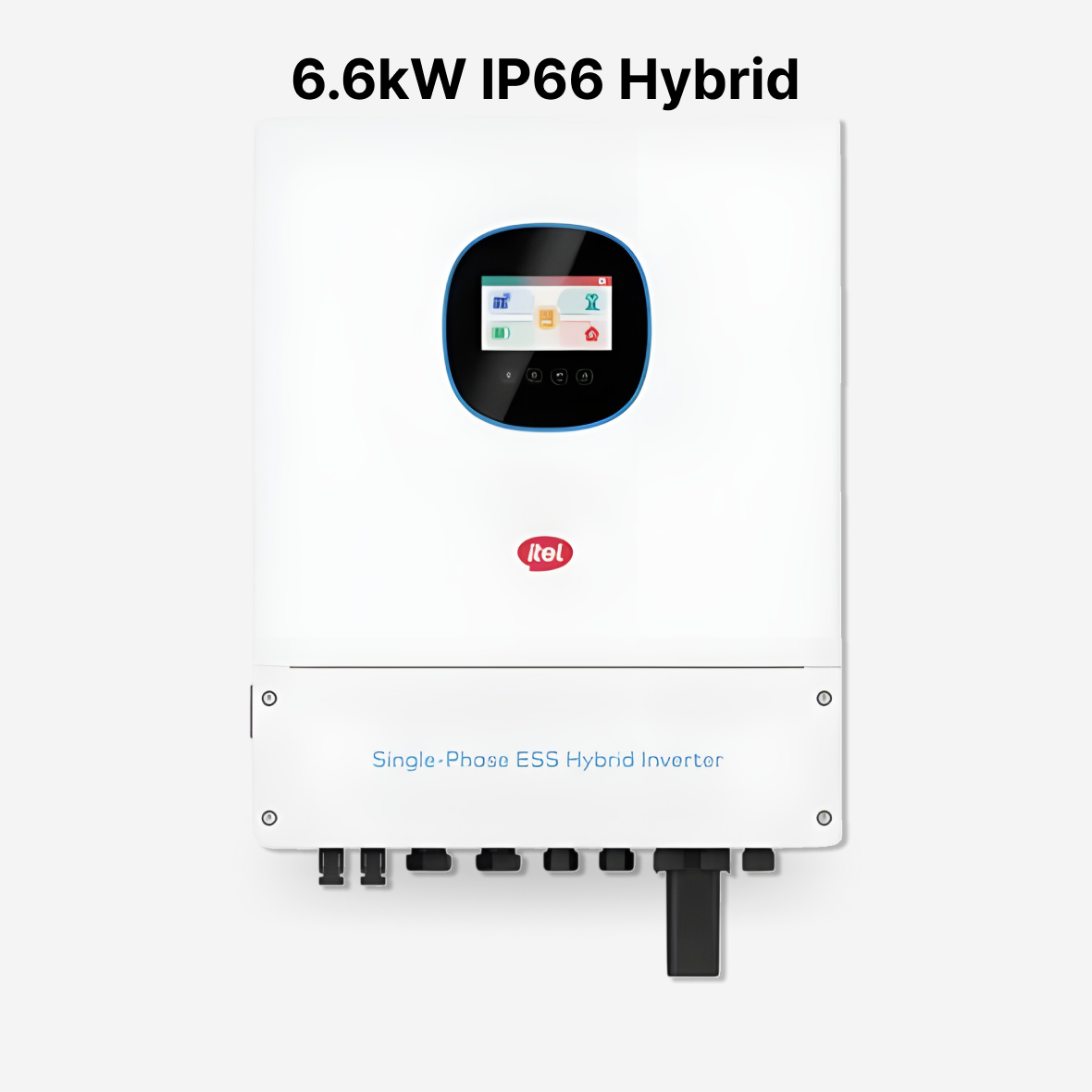

ITEL 6.6kW SP-HYBRID IHY-6K6L1C Hybrid Inverter

Description

The ITEL 6.6kW SP-HYBRID IHY-6K6L1C Hybrid Inverter is a high-performance single-phase hybrid inverter designed for residential and commercial solar energy systems. With dual MPPT technology, up to 13,200W PV input power, and 99.90% MPP tracking efficiency, it is engineered to maximize solar energy harvesting and provide reliable power management.

The inverter supports On-Grid, Smart Load, and Backup Load operation, providing flexible energy management for different system requirements. Its IP66 protection design offers resistance against dust and water, making it suitable for outdoor installation.

With a 6.6kW hybrid output, 110% continuous load capacity, up to 140A solar charging current, and <20ms switching time, the IHY-6K6L1C delivers fast and reliable backup performance. It also supports up to 12 units in parallel, allowing the system to be expanded for higher power requirements.

Key Features

• 6.6kW single-phase hybrid inverter
• Dual MPPT technology
• MPP tracking efficiency up to 99.90%
• Maximum PV input power of 13,200W
• Maximum PV input voltage of 500V
• MPPT voltage range of 60–425V
• Maximum solar charging current of 140A
• Supports lead-acid, lithium-ion, and user-defined batteries
• 48V battery system
• Maximum battery discharge current of 140A
• Supports On-Grid, Smart Load, and Backup Load
• 110% continuous load capacity
• Smart TOU for intelligent load shifting
• Maximum 12 units in parallel
• IP66 dust and waterproof protection
• Wi-Fi, RS485, CAN, and Dry Contact communication
• Smart LCD touch display
• Intelligent fan cooling
• Low-noise operation
• DC Type II and AC Type III surge protection
• Maximum battery mode conversion efficiency above 93%
• Less than 20ms switch time
• 6-year replacement and service warranty

Product Specifications

Product Details

The ITEL IHY-6K6L1C 6.6kW Hybrid Inverter combines high PV input capacity, advanced MPPT technology, battery management, and flexible load control in a compact single-phase system. It can accept up to 13,200W of solar PV input and features dual MPPT with a maximum tracking efficiency of 99.90%.

The inverter supports a 48V battery system with lead-acid, lithium-ion, and user-defined battery compatibility. It provides up to 140A solar charging current and 140A maximum discharge current, making it suitable for high-demand backup and solar storage applications.

Designed for demanding environments, the IHY-6K6L1C features IP66 protection, intelligent fan cooling, and an operating temperature range of -40°C to +60°C. It also supports Wi-Fi, RS485, CAN, and Dry Contact communication for system monitoring and control.

For larger installations, up to 12 units can be connected in parallel. The inverter also supports Smart Load functionality, TOU energy management, and backup operation, providing flexible power management for modern solar systems.
