| Specification | Details |
|---|---|

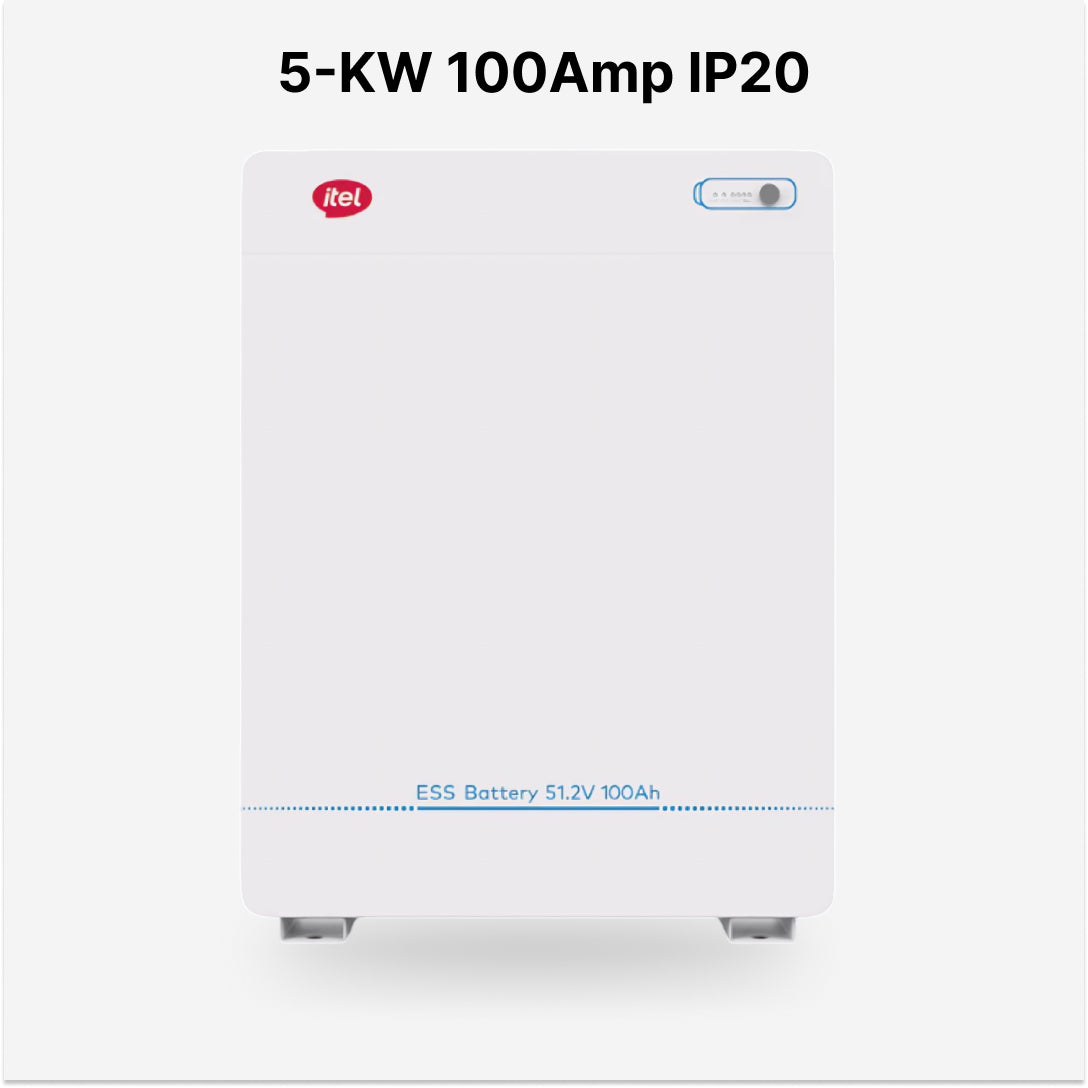

| Model | IPL-51100 |
| Brand | itel |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Battery Type | Solar energy storage battery |
| Application | Residential / commercial solar backup |
| Design Life | 10 years |
| Cycle Life | 6000+ cycles |
| Specification | Value |
|---|---|
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh |
| Operating Voltage Range | 40 V – 58.4 V |
| Cut-off Charging Voltage | 58.4 V |
| Cut-off Discharge Voltage | 40 V |
This means the battery stores 5.12 kilowatt-hours of energy.
Example:
1 battery ≈ 5 units of electricity
| Specification | Value |
|---|---|
| Standard Charging Current | 50 A |
| Max Continuous Charging Current | 100 A |
| Cut-off Charging Current | 2 A |
The battery automatically stops charging when voltage reaches the safety limit.
| Specification | Value |
|---|---|
| Standard Discharge Current | 100 A |
| Max Continuous Discharge Current | 100 A |
| Max Pulse Discharge Current | 150 A |
This allows the battery to handle high-power loads like AC, motors, or pumps.
| Specification | Value |
|---|---|
| Dimensions | 450 × 510 × 153 mm |
| Weight | 50 kg |
| Shell Material | Metal casing |
| Cooling | Natural cooling |
The metal body improves durability and heat dissipation.
| Specification | Value |
|---|---|
| Communication Ports | RS485 / CAN / RS232 |
| Display | LED indicators |
These communication ports allow the battery to connect with hybrid solar inverters and battery management systems (BMS).
| Specification | Value |
|---|---|
| Parallel Connection | Up to 15 batteries |
Example system sizes:
| Batteries | Total Storage |
|---|---|
| 1 | 5.12 kWh |
| 2 | 10.24 kWh |
| 4 | 20.48 kWh |
| 10 | 51.2 kWh |
This makes it scalable for homes or businesses.
| Specification | Value |
|---|---|
| Charging Temperature | 0°C to 55°C |
| Discharging Temperature | -20°C to 60°C |
| Humidity | 10% – 95% |
| Maximum Altitude | 2000 m |
The battery can operate in very hot and cold environments.
The battery includes multiple protection systems:
| Protection Feature |
|---|
| Current limiting |
| Pre-charge protection |
| Over-charge protection |
| Over-discharge protection |
| Voltage cut-off protection |
| Temperature protection |
These protect both the battery and connected inverter system.
| Specification | Value |
|---|---|
| IP Rating | IP20 |
Meaning:
Protected from solid objects
Not waterproof
So it should be installed indoors.
The battery complies with international safety standards:
| Certification |
|---|
| IEC62619 |
| UN38.3 |
| MSDS |
| DGM |
These certifications confirm safety for transport and operation.
