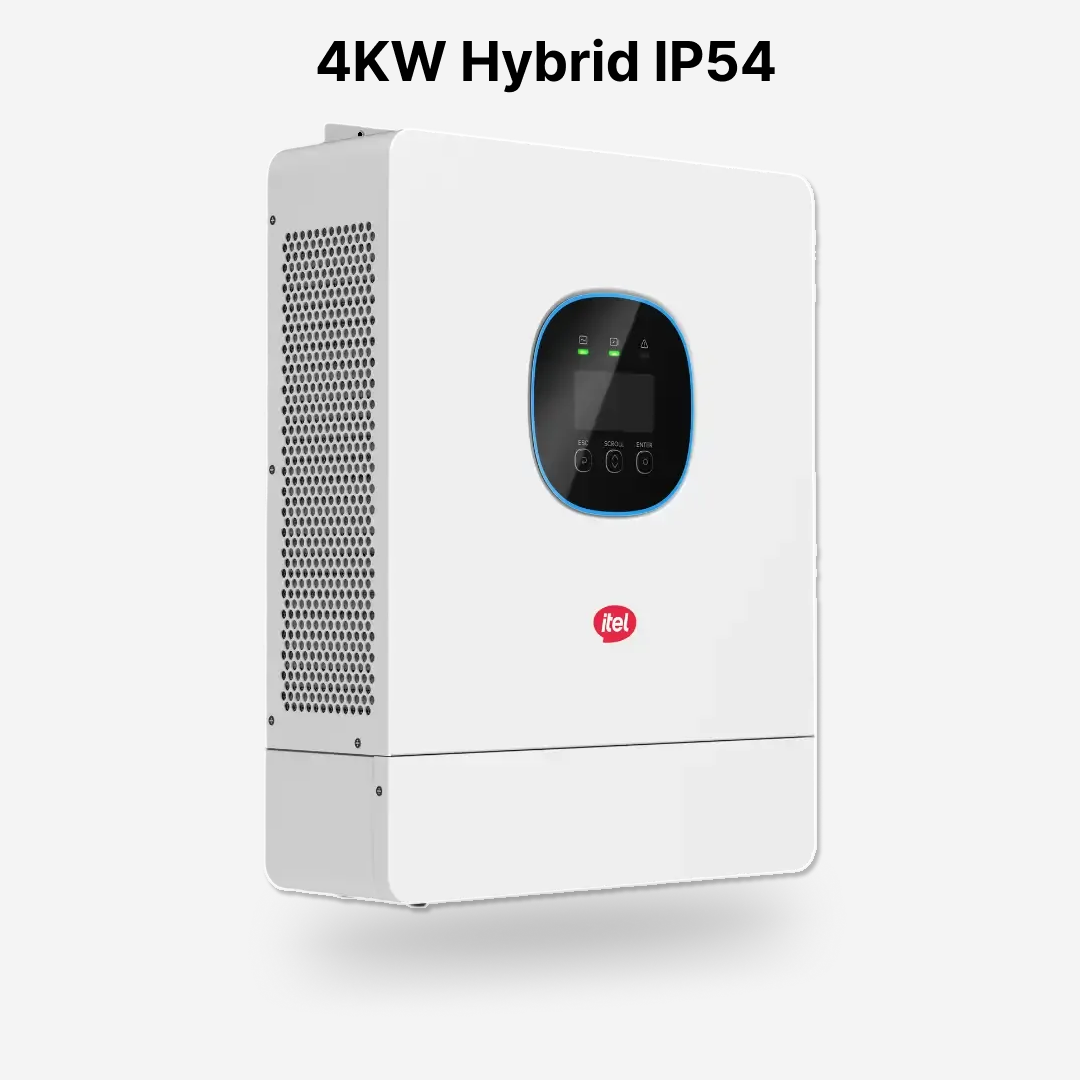

IPV-4K24U Pro – 4kW Hybrid Inverter (Single Phase)

Detailed Technical Specifications

General Overview

• Model: IPV-4K24U Pro
• Type: Hybrid Inverter (Single Phase)
• Rated Output Power: 4 kW
• Topology: Transformer-based
• Ingress Protection: IP54 (dust & splash resistant)

Key Features

• Dual output (Smart Load + Main Load)
• MPPT efficiency ≥99.9%
• Battery mode efficiency ≥93%
• Supports lithium & lead-acid batteries
• UPS switching supported

PV (Solar Input)

• Max PV Power: 6000 W
• Max PV Voltage: 500 V
• Start-up Voltage: 80 V
• MPPT Voltage Range: 85 – 450 V
• Max Input Current: 15 A
• MPPT Trackers: 1

Battery

• Battery Type: Lead-acid / Lithium-ion
• Rated Voltage: 24 V
• Voltage Range: 20 – 30 V
• Max MPPT Charging Current: 120 A
• Max AC Charging Current: 100 A
• Max Discharge Current: 160 A

AC Input

• Nominal Voltage: 230 V AC
• Input Voltage Range: 90 – 280 V
• Max Input Current: 28 A (Bypass Mode)
• Frequency: 50 / 60 Hz

AC Output

• Rated Power: 4000 W
• Apparent Power: 4000 VA
• Voltage: 220 / 230 / 240 V
• Frequency: 50 Hz
• THD: <3%

Performance

• Switch Time:
  • 10 ms (UPS mode)
  • 20 ms (Appliances)
• Surge Power: 8000 W (5 sec)
• Overload Capacity:
  • 105%–150% → 10 sec
  • 150%–200% → 5 sec

General Specifications

• Operating Temperature: -10°C to +55°C
• Altitude: up to 4000m (derating >2000m)
• Cooling: Intelligent fan cooling
• Noise: <60 dB

Physical

• Dimensions: 120 × 347 × 445 mm
• Weight: 9.2 kg

Communication

• WiFi / RS485 / RS232 / Dry Contact
• Generator Support: Yes
• Smart Load: Yes
• Parallel Support: No

Protection

• Overvoltage: Yes
• Overload: Yes
• Short Circuit: Yes
• Over Temperature: Yes
• Surge Protection: DC Type II / AC Type II
