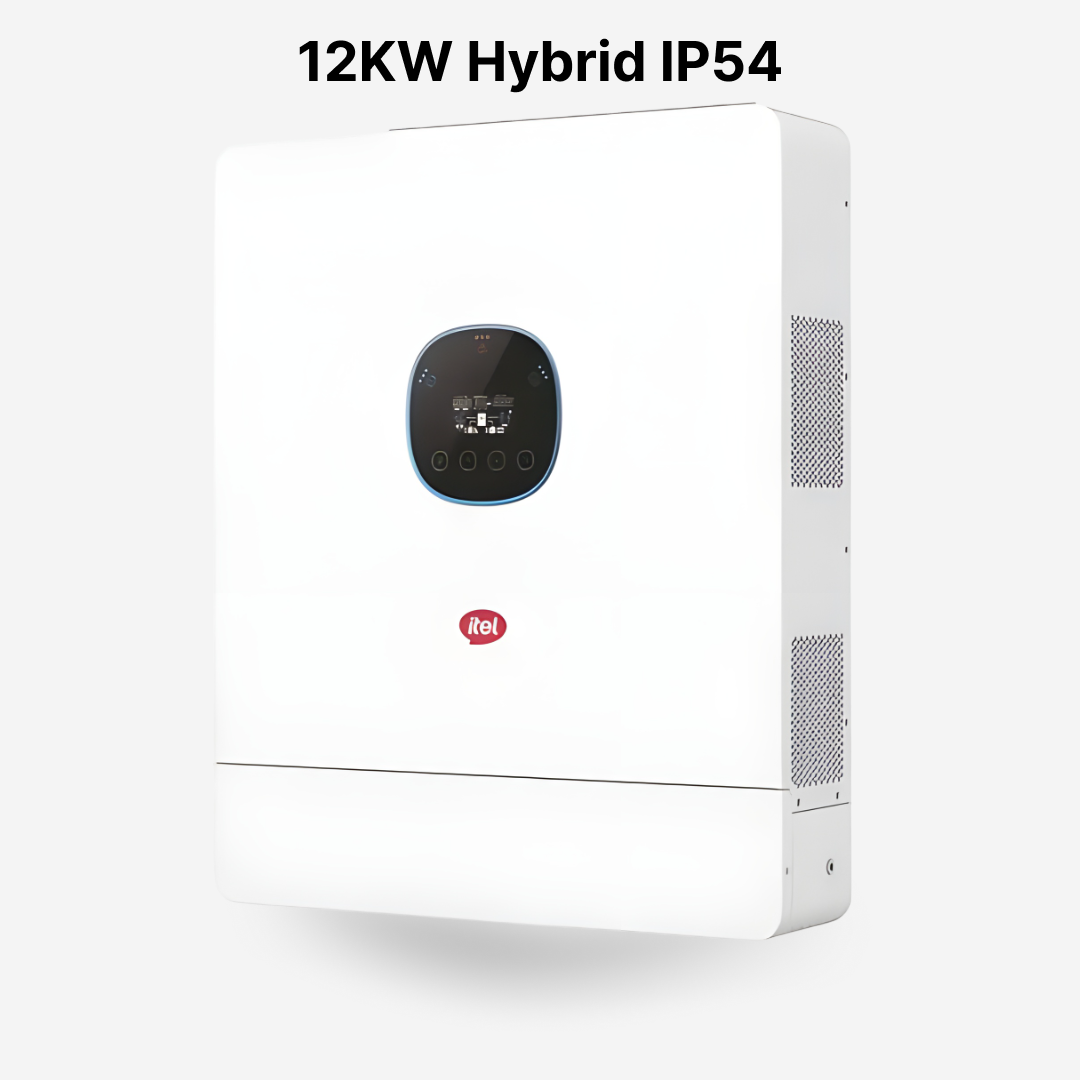

IPV-12K48U – 12kW Hybrid Inverter (Single Phase, IP54)

Detailed Technical Specifications

General Overview

• Model: IPV-12K48U
• Type: Hybrid Inverter (Single Phase)
• Rated Output Power: 12 kW
• Ingress Protection: IP54
• Parallel Support:
  • Single-phase: up to 6 units
  • Three-phase system: up to 12 units

Efficiency

• MPPT Tracking Efficiency: ≥99.5%
• Battery Mode Efficiency: ≥95%

PV (Solar Input)

• Max PV Input Power: 16,000 W
• Max PV Voltage: 500 V
• Start-up Voltage: 75 V
• MPPT Voltage Range: 85 – 450 V
• Max Input Current: 27A + 27A
• MPPT Trackers: 2

AC Input

• Max Grid Input Voltage: 380 V
• Nominal Voltage: 220 / 230 / 240 V
• Input Voltage Range: 90 – 280 V
• Max AC Input Current: 90 A (Bypass Mode)
• Frequency: 50 / 60 Hz
• THDi: <3%

AC Output

• Rated Output Power: 12,000 W
• Max Apparent Power: 12 kVA
• Output Voltage: 220 / 230 / 240 V
• Frequency: 50 Hz
• THDv: <3%
• Switch Time:
  • 10 ms (UPS mode)
  • 20 ms (Appliances)
• Surge Power: 24 kW (5 sec)
• Overload Capacity:
  • 105–150% (10 sec)
  • 150–200% (5 sec)

Battery

• Battery Type: Lithium-ion / Lead-acid / User-defined
• Rated Voltage: 48 V
• Voltage Range: 40 – 60 V
• Max MPPT Charging Current: 210 A
• Max AC Charging Current: 210 A
• Max Discharge Current: 250 A

General Specifications

• Operating Temperature: -10°C to +55°C
• Altitude: up to 4000 m
• Cooling: Intelligent fan cooling
• Noise: <60 dB

Physical Specifications

• Dimensions (D × W × H): 125 × 525 × 630 mm
• Weight: 28.5 kg

Communication & Smart Features

• WiFi / RS485 / CAN / RS232 / Dry Contact
• Generator Support: Yes
• Smart Load: Yes
• Dual output system supported

Protection

• Same full protection suite as 8kW
• IP54 protection
• Surge Protection: DC Type III / AC Type III
