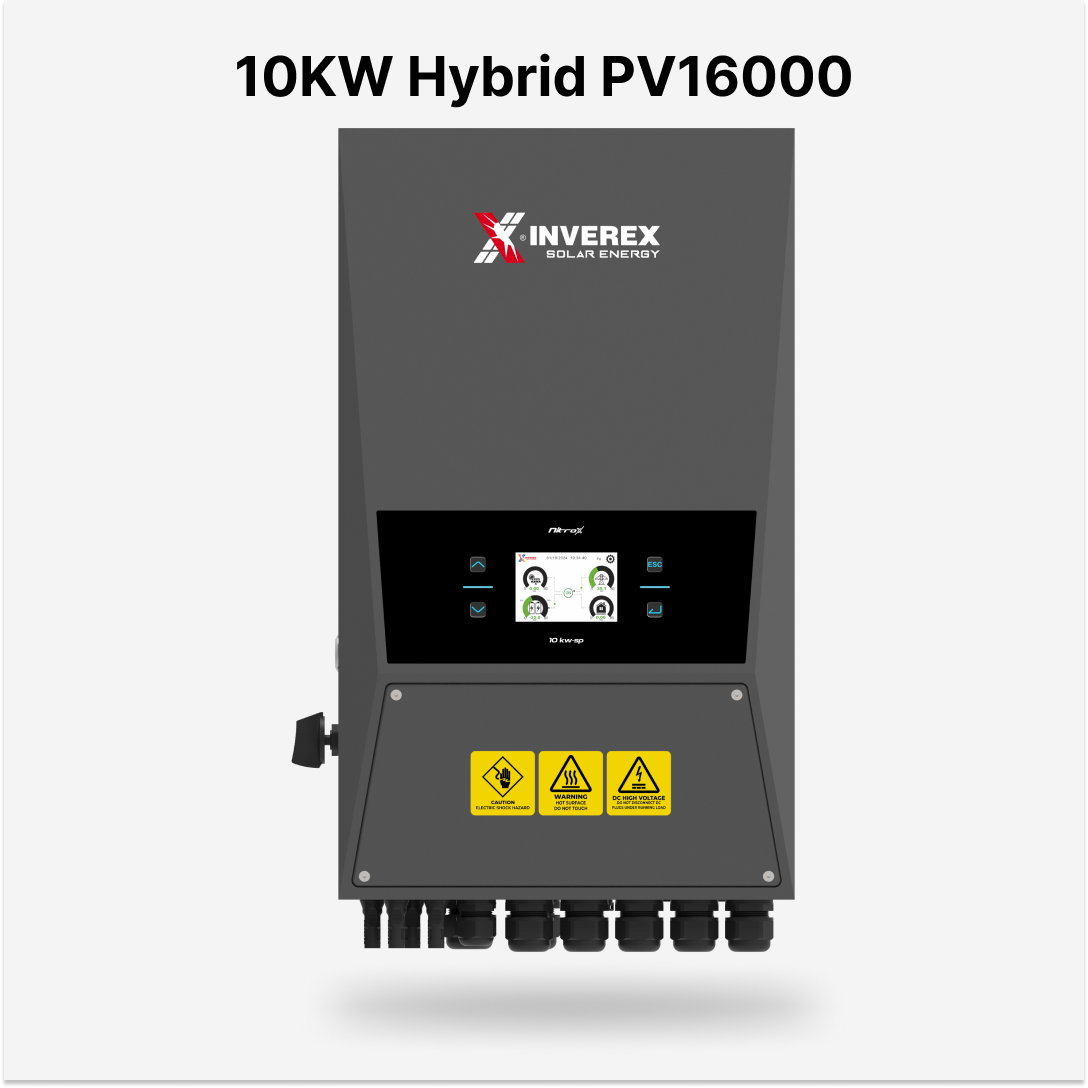

Inverex NitroX 10KW SP Hybrid Inverter

High-Performance Hybrid Inverter for Advanced Solar Systems

The Inverex NitroX 10KW SP Hybrid Inverter is designed for serious energy users looking to maximize their solar investment. Built with robust components and smart energy management features, it supports large residential, commercial, and hybrid applications with efficiency and reliability.

Key Features:

• Ultra-High PV Capacity: Supports up to 16,000W PV input with a wide operating voltage range of 150V–425V DC

• Dual MPPT Technology: Two independent MPPTs with 34A+34A input current handling provide maximum energy harvesting from different PV arrays

• High Charge/Discharge Rate: 210A for both charging and discharging, ensuring faster battery cycles and higher power delivery

• Scalable System: Parallel operation capability up to 16 units for expanding system capacity

• Powerful Output: Delivers 10KW continuous power with 11KVA peak for surge loads

• Smart Display: 4.3” color LCD with an IP65 outdoor-rated interface

• Flexible Integration: Supports AC coupling for retrofitting existing on-grid systems

• Advanced Battery Scheduling: Configurable for 6 different charging/discharging time slots

• Generator Compatibility: Works seamlessly with diesel generators for extended backup

• High Conversion Efficiency: Inverter efficiency up to 97.6%, MPPT efficiency >99%, DC ripple <0.5%

• Wide Environmental Range: Operates from -40°C to +60°C, suitable for diverse climate zones

• Low Noise: Operates quietly with noise levels below 30 dB

Protection & Monitoring:

• Built-in protections: RCD, surge protection, reverse polarity, thermal overload, and more

• Communication ports: RS485, RS232, CAN

• Optional remote monitoring via WiFi, Bluetooth, LAN, or 4G connectivity
