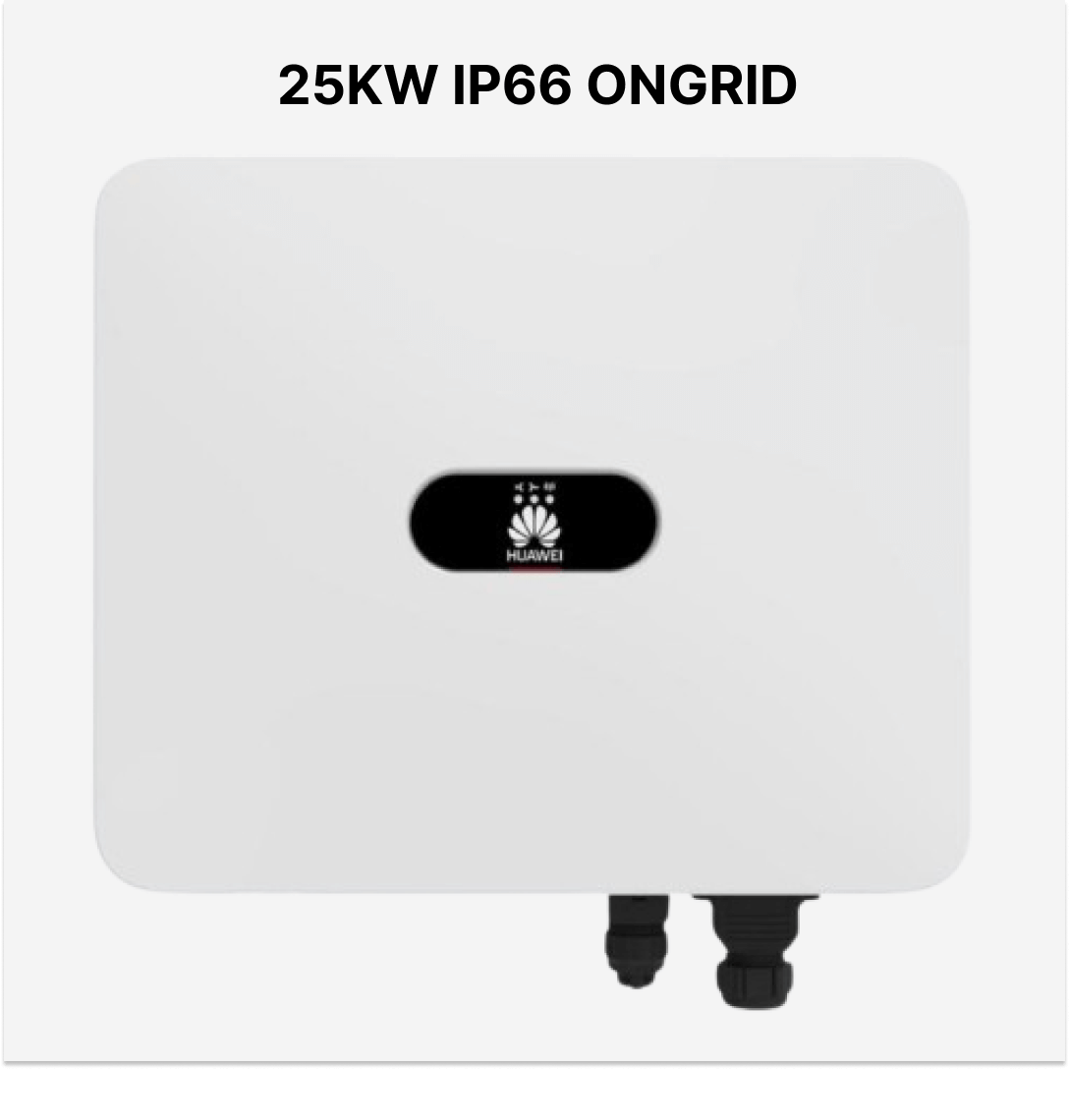

The Huawei SUN2000-25KTL-M5 is a 25 kW three-phase on-grid solar inverter, primarily designed for medium to large commercial and industrial solar installations. Here's a detailed breakdown of its key features and specifications:
Key Features:
-
3-Phase Inverter: Provides 22,000 VA of power output, suitable for large-scale installations.
-
High Efficiency: Achieves up to 98.65% efficiency, optimizing energy conversion from solar panels.
-
Multiple MPPTs: Equipped with 2 independent MPPT trackers to enhance power output under various sunlight conditions.
-
Enhanced Safety: Incorporates AI-powered Arc Fault Circuit Interruption (AFCI) technology to detect and mitigate electrical arcs, minimizing fire risks.
-
Robust Design: Rated IP66, making it dust-tight and resistant to water jets, suitable for outdoor installations.
-
Flexible Communication: Supports WLAN, Fast Ethernet, and 4G communication options for easy monitoring via the FusionSolar app or web portal.
Technical Specifications:
-
DC Input:
-
Maximum Voltage: 1,080 V
-
MPPT Voltage Range: 470–850 V
-
Number of Inputs: 4
-
Number of MPPT Trackers: 2
-
AC Output:
-
Rated AC Power: 25,000 W
-
Maximum Apparent Power: 27,500 VA
-
Rated Output Voltage: 220/380 V, 230/400 V, or 240/415 V (3-phase, configurable)
-
Maximum AC Current: 40.5 A
-
Frequency: 50/60 Hz
-
Power Factor: 0.8 (adjustable)
-
Total Harmonic Distortion (THD): <3%
-
General Specifications:
-
Operating Temperature Range: -25°C to +60°C
-
Humidity: 0–100%
-
Altitude: Up to 4,000 m
-
Dimensions: 546 mm x 460 mm x 228 mm
-
Weight: 21 kg
-
Communication: RS485, WLAN
Protection Features:
- Anti-Islanding Protection
- Overvoltage Protection
- Overcurrent Protection
- Residual Current Device (RCD)
- Reverse Polarity Protection
- Isolation Monitoring
