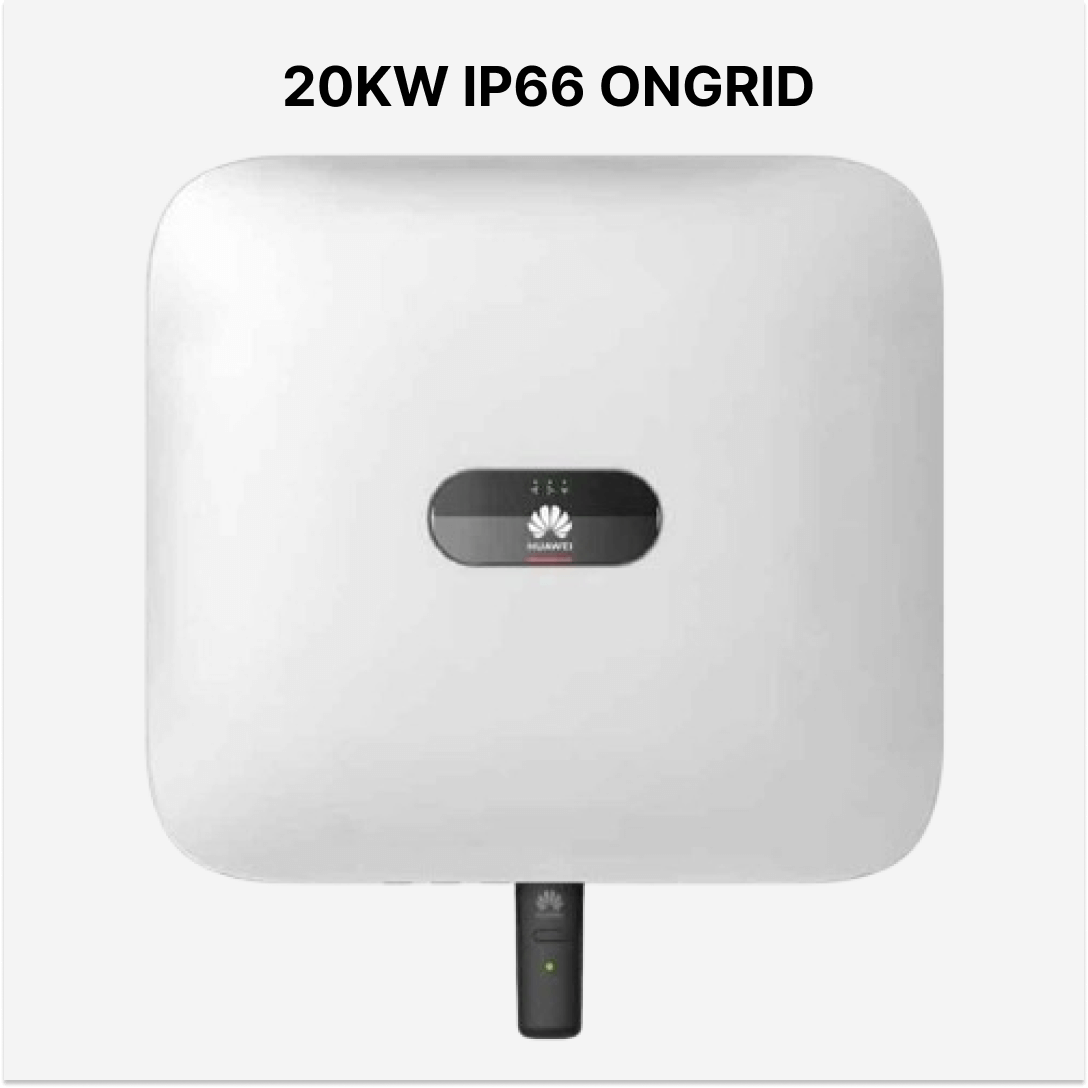

The Huawei SUN2000-20KTL-M0 is a robust 20kW on-grid solar inverter designed for high-efficiency solar energy conversion. It comes with several features to ensure optimized performance and maximum safety. Here’s an overview:
Key Features:
-
Power Capacity: 20,000W (20kW) – Ideal for large residential or commercial solar installations.
-
MPPT Trackers: Equipped with 2 independent MPPTs for optimized solar energy capture from multiple arrays.
-
PID Recovery: Integrated PID (Potential Induced Degradation) recovery to maintain panel performance.
-
Surge Protection: DC and AC surge protection to safeguard the system from voltage spikes.
-
Arc Fault Protection (AFCI): Ensures safety by detecting potential arc faults in the system.
-
Protection Class: Designed for safety with multiple protective features like DC reverse polarity, AC over-voltage, and short-circuit protection.
Technical Specifications:
-
Model: SUN2000-20KTL-M0
-
Max Efficiency: 98.65%, ensuring high performance and lower energy loss.
-
Max Input Voltage: 1080V
-
MPPT Operating Range: 480V-850V
-
Number of MPPTs: 2 (Independent tracking for flexibility)
-
Rated Output Power: 20,000W (20kW)
-
Output Voltage: 220V/380V or 230V/400V (3-phase, depending on the setup)
-
Max Output Current: 33.5A
Additional Benefits:
-
Efficiency: With a high European Weighted Efficiency of 98.30%, it ensures consistent power generation and greater yields.
-
Advanced Protection: Equipped with protection features like arc fault and surge protection, ensuring the safety and longevity of the system.
-
Cost-Effective: Optimizes power generation for a better ROI and lower maintenance costs.
-
Smart Integration: Part of Huawei's Fusion Solar Smart PV Solution, which combines digital and internet technologies for ease of operation and monitoring
