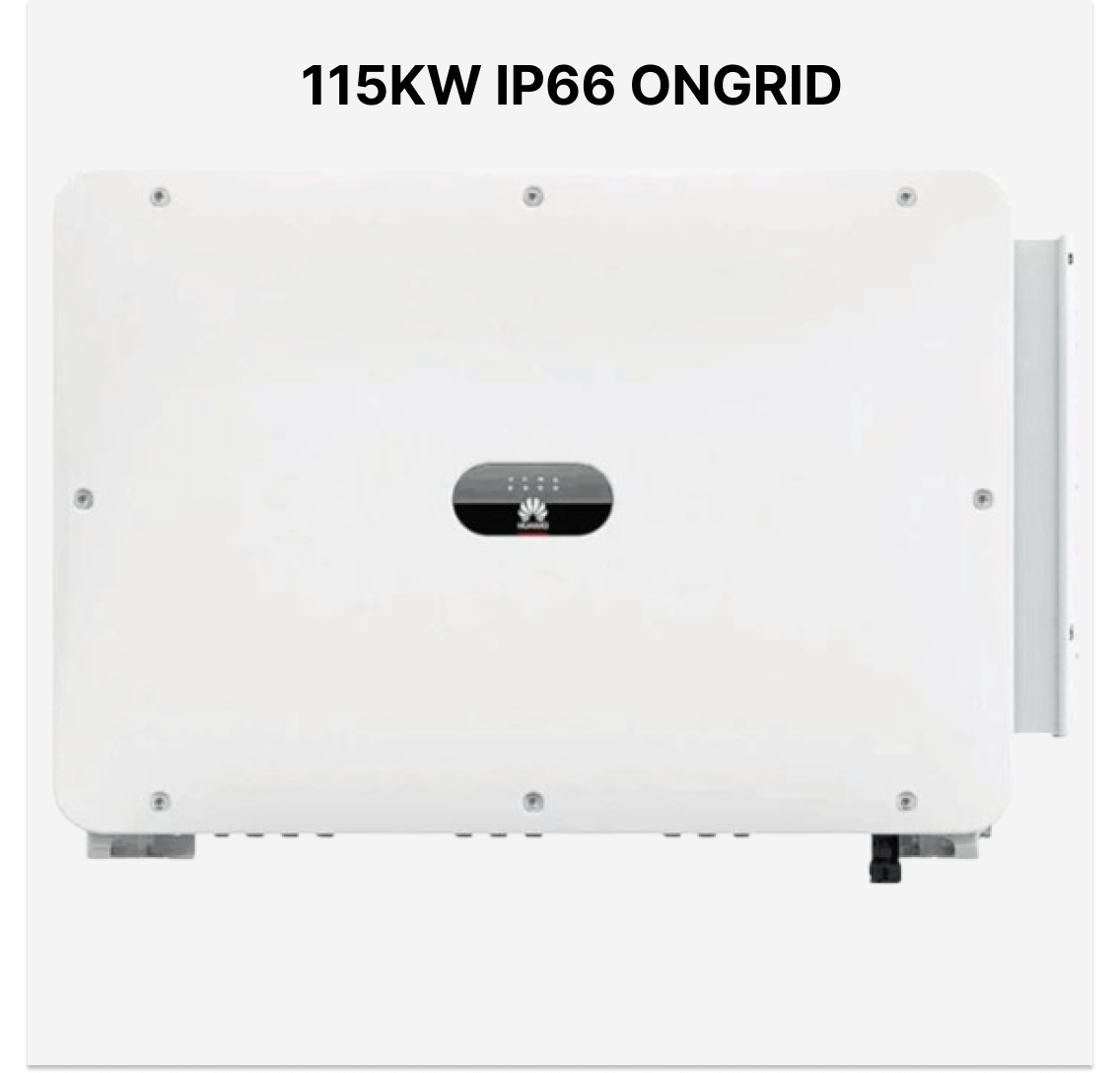

HUAWEI 115KW solar inverter ongrid

The Huawei SUN2000-115KTL-M2 is a three-phase solar inverter, specifically designed for large-scale solar installations. Here’s a breakdown of its features and specifications:

Key Features:

• Design: Compact and lightweight (weighs only 93 kg), making installation easier and more space-efficient.
• Safety: Includes two DC inputs with residual current protection for enhanced safety.
• High Efficiency: Max. Efficiency of 98.8% (at 480V) for optimal energy conversion.
• Monitoring & Management: Features string-level management, smart I-V curve diagnosis, and MBUS support for seamless monitoring.
• Fuse-Free Design: Reduces maintenance requirements.
• Surge Protection: Surge arresters for both DC and AC offer additional protection.
• Environmental Protection: IP66 protection rating, ensuring it can withstand harsh environmental conditions.

Technical Specifications:

• Dimensions: 1035 mm x 700 mm x 365 mm.
• Operating Temperature: -25°C to +60°C.
• Transformerless Design: This inverter is transformerless for improved efficiency.
• Power Consumption at Night: <3.5 W, ensuring low energy consumption when not in use.
