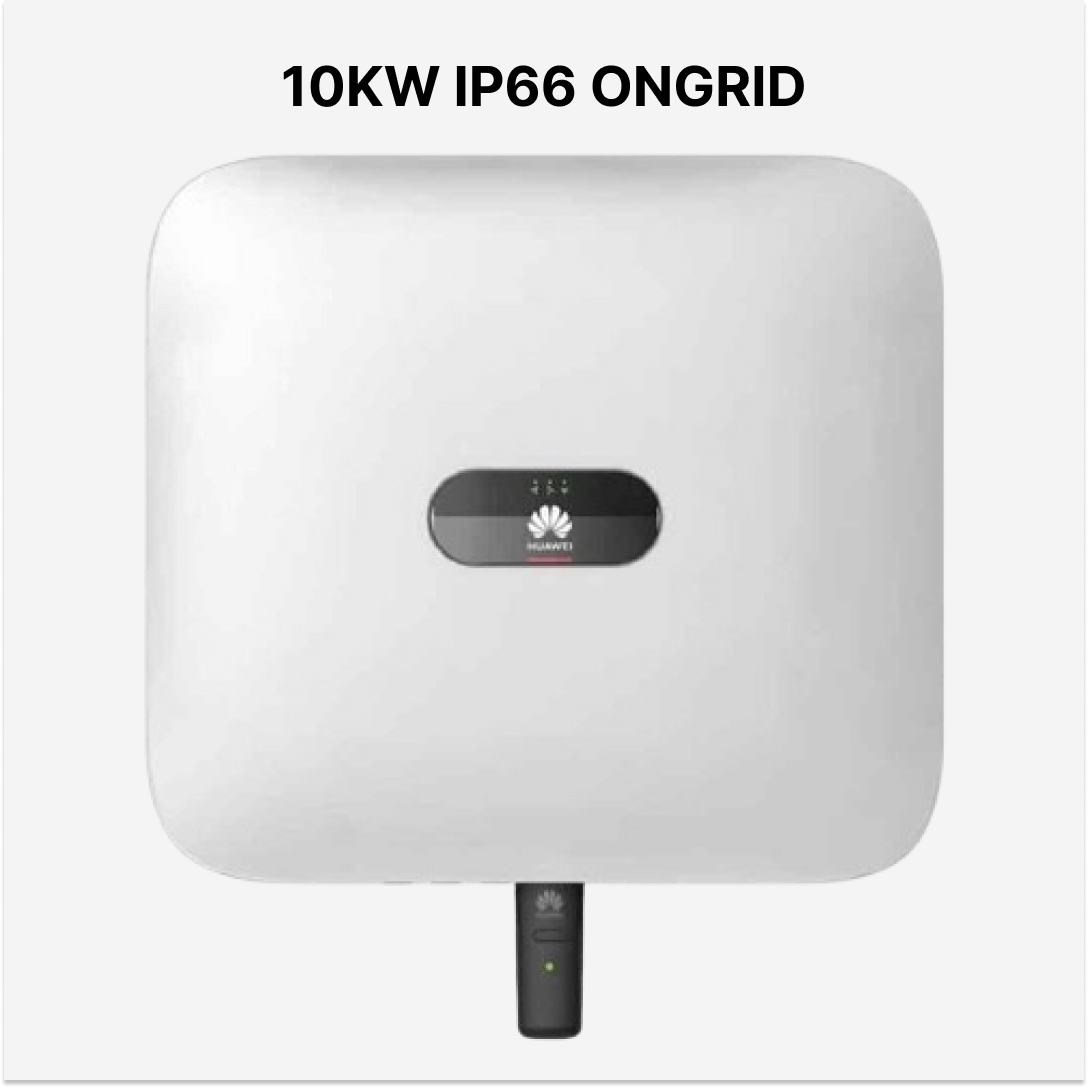

HUAWEI 10KW solar inverter ongrid

The Huawei 10kW On-Grid Sun2000-10KTL-M0 solar inverter offers robust features designed for efficient and safe solar power generation. Here’s a breakdown of its key highlights and specifications:

Main Features:

• Anti-Islanding Protection: Ensures safety by disconnecting from the grid in case of a power outage.
• DC Reverse Polarity Protection: Prevents damage from incorrect wiring.
• Insulation Monitoring: Monitors the insulation of the system to prevent potential failures.
• DC & AC Lightning Protection: Provides safety from lightning strikes.
• Residual Current Monitoring: Detects any leakage current and prevents faults.
• AC Short-Circuit Protection & Over-Voltage Protection: Protects the inverter and connected devices from short-circuit and over-voltage scenarios.
• Ripple Receiver Control & Arc Fault Protection (AFCI): Enhances safety and operational efficiency.
• Integrated PID Recovery: Improves the overall performance of the solar system over time.

Technical Specifications:

• Model: SUN2000-10KTL-M0
• Max. Efficiency: 98.65%
• Chinese Efficiency: 98.60%
• Max. Input Voltage: 1100V
• Start Voltage: 200V
• MPPT Operating Voltage Range: 160V - 1000V
• Rated Input Voltage: 600V
• Max. Input Current per MPPT: 11A
• Number of MPPTs: 2 (Multi-String Optimization)
• Rated Output Power: 10,000W (10kW)
• Output Voltage: 230Vac / 400Vac, 3W/N+PE
• Output Frequency: 50Hz / 60Hz
• Max Output Current: 13.6A
• Adjustable Power Factor: 0.8 LD to 0.8 LG
• Max. Total Harmonic Distortion (THD): ≤ 3%

Key Benefits:

1. Efficient Power Conversion: With an impressive efficiency of up to 98.65%, the inverter ensures high energy yield.
2. Safety & Durability: Built-in protections and monitoring features safeguard your system.
3. Easy Integration: Features plug-and-play battery interface for potential future integration with storage solutions.
4. User-Friendly: Designed for easy setup and integration, making it an ideal choice for both residential and small commercial applications.

Ideal For:

• Residential homes with three-phase electricity.
• Small to medium-sized commercial solar setups.
