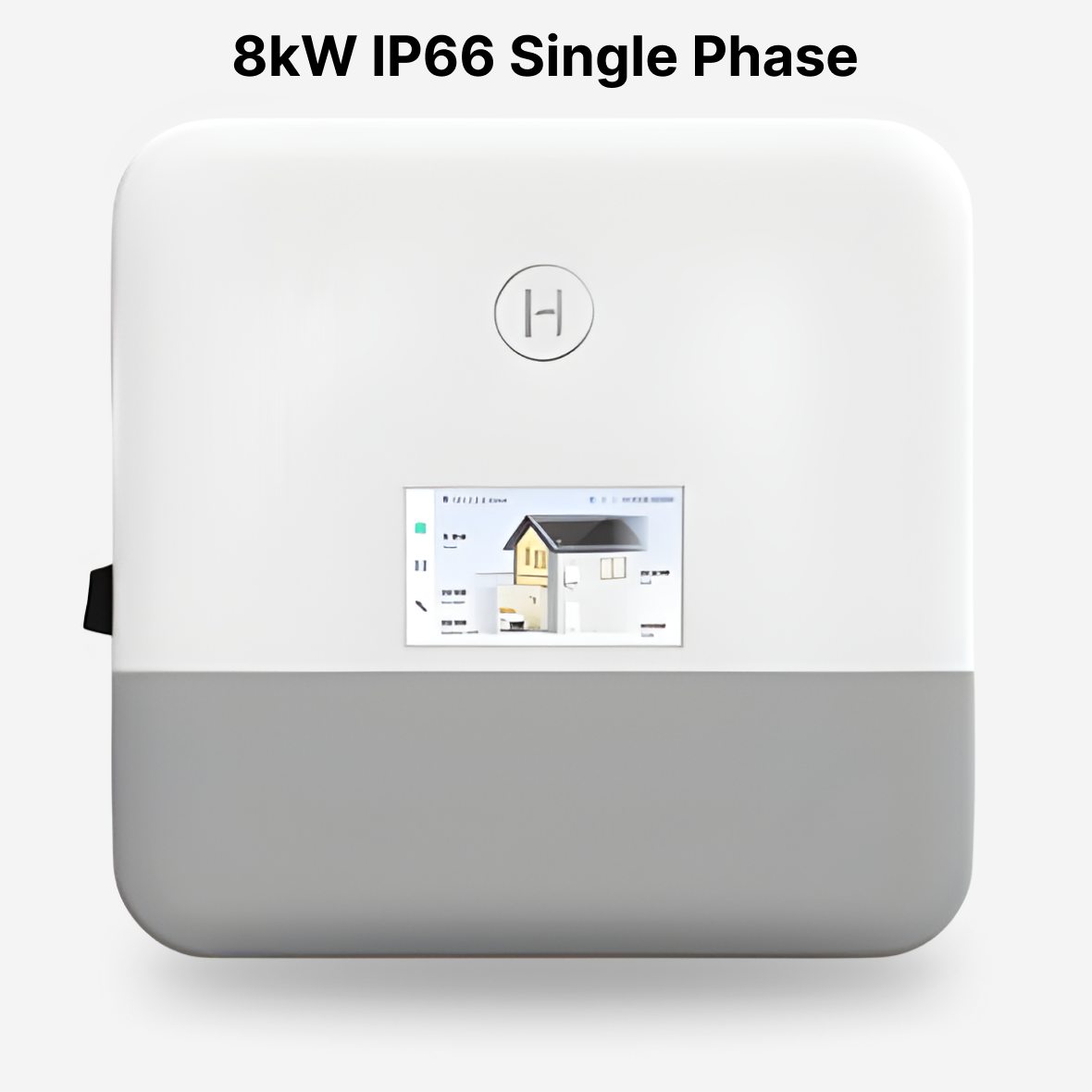

Hoymiles 8kW Single Phase Dual Mppt Hybrid Solar Inverter
Download Product Datasheet Hoymiles HIS-8L-G3S 8kW Single-Phase Hybrid Inverter Description The Hoymiles HIS-8L-G3S is an 8kW single-phase...
- Rs.285,000.00
- Rs.285,000.00
- Unit price
- per
Please hurry! Only 15 left in stock
Subtotal:
Rs.285,000.00
10 customers are viewing this product
Couldn't load pickup availability
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
Hoymiles HIS-8L-G3S 8kW Single-Phase Hybrid Inverter
Description
The Hoymiles HIS-8L-G3S is an 8kW single-phase hybrid inverter designed for high-performance residential solar and energy-storage applications. It supports multiple intelligent operating modes, including self-consumption, economy, backup, peak shaving, and time-of-use operation.
With 16kW recommended maximum PV power, 140A maximum battery charge/discharge current, dual MPPT, and 0ms backup switching, the HIS-8L-G3S provides flexible energy management and uninterrupted backup operation.
Key Features
- 8kW rated output
- Up to 16kW recommended PV power
- Dual MPPT
- 18A maximum PV input current per MPPT
- 140A maximum battery charge/discharge current
- 0ms backup switching
- 16kVA backup peak power for 10 seconds
- Li-ion / lead-acid compatible
- Peak Shaving and TOU modes
- Integrated AI energy management
- Generator, heat pump and smart-load support
- Up to 10 units in parallel
- IP66 protection
- LCD/App user interface
Product Specifications
| Specification | Details |
|---|---|
| Brand | Hoymiles |
| Model | HIS-8L-G3S |
| Rated Output Power | 8,000W |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60V |
| Max Charge/Discharge Current | 140A / 140A |
| Max Charge/Discharge Power | 8,000W / 8,400W |
| Recommended Max PV Power | 16,000W |
| Max PV Input Voltage | 550V |
| Rated PV Voltage | 360V |
| Start-up Voltage | 100V |
| MPPT Voltage Range | 90–500V |
| Max PV Input Current | 18A / 18A |
| MPPT | 2 |
| Rated AC Output | 8,000W |
| Max Apparent Power | 8,000VA |
| Max Output Current | 36.4A |
| Backup Output | 8,000W |
| Backup Peak Power | 16,000VA for 10s |
| Backup Switching Time | 0ms |
| MPPT Efficiency | 99.90% |
| Maximum Efficiency | 97.70% |
| IP Rating | IP66 |
| Dimensions | 506 × 495 × 120mm |
| Weight | 20kg |
| Cooling | Smart fan |
| Communication | RS485, Wi-Fi/Ethernet optional |
