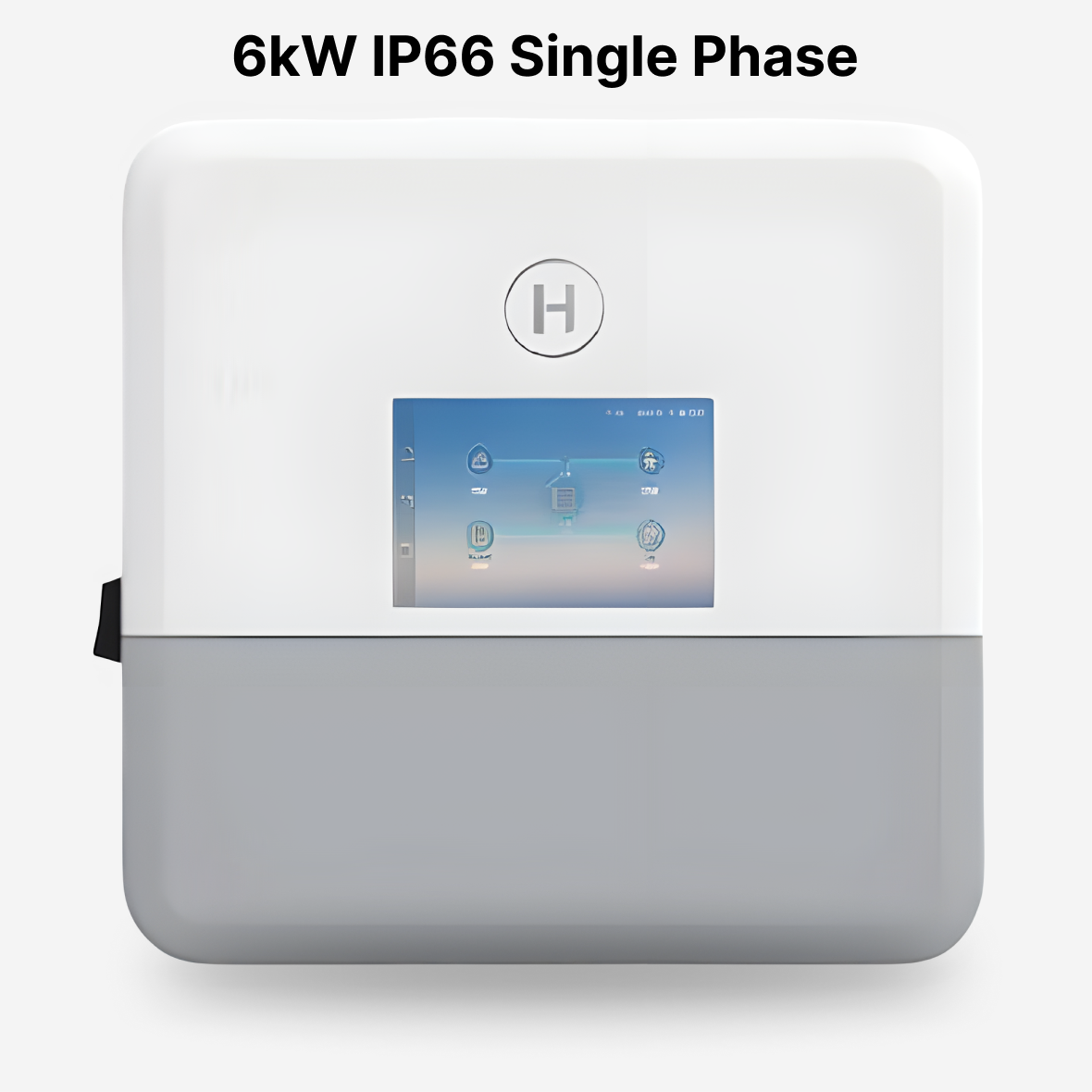

Hoymiles 6kW Single Phase Dual Mppt Hybrid Solar Inverter
Download Product Datasheet Hoymiles HIS-6L-G3S 6kW Single-Phase Hybrid Inverter Description The Hoymiles HIS-6L-G3S is a 6kW single-phase...
- Rs.204,000.00
- Rs.204,000.00
- Unit price
- per
Please hurry! Only 15 left in stock
Subtotal:
Rs.204,000.00
10 customers are viewing this product
Couldn't load pickup availability
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
Hoymiles HIS-6L-G3S 6kW Single-Phase Hybrid Inverter
Description
The Hoymiles HIS-6L-G3S is a 6kW single-phase hybrid inverter designed for residential solar and energy-storage systems. It provides dual MPPT tracking, intelligent energy management, and UPS-level backup performance with 0ms switching time.
The inverter supports up to 12kW recommended PV power, 135A maximum battery charge/discharge current, and parallel operation of up to 10 units.
Key Features
- 6kW rated output
- 12kW recommended maximum PV power
- Dual MPPT
- 18A MPPT input current
- 135A maximum charge/discharge current
- 0ms backup switching
- Li-ion / lead-acid compatible
- 40–60V battery range
- Peak Shaving and TOU modes
- Integrated AI energy management
- Up to 10 units in parallel
- IP66 protection
- Natural convection cooling
Product Specifications
| Specification | Details |
|---|---|
| Model | HIS-6L-G3S |
| Rated Output Power | 6,000W |
| Battery Voltage Range | 40–60V |
| Max Charge/Discharge Current | 135A / 135A |
| Recommended Max PV Power | 12,000W |
| Max PV Voltage | 550V |
| MPPT Range | 90–500V |
| MPPT | 2 |
| Max PV Input Current | 18A / 18A |
| Max Output Apparent Power | 6,600VA |
| Max Output Current | 30A |
| Backup Output | 6,000W |
| Backup Peak Power | 12,000VA for 10s |
| Backup Switching | 0ms |
| Max Efficiency | 97.70% |
| IP Rating | IP66 |
| Dimensions | 506 × 495 × 99mm |
| Weight | 17kg |
| Cooling | Natural convection |
| Communication | RS485, Wi-Fi/Ethernet optional |
