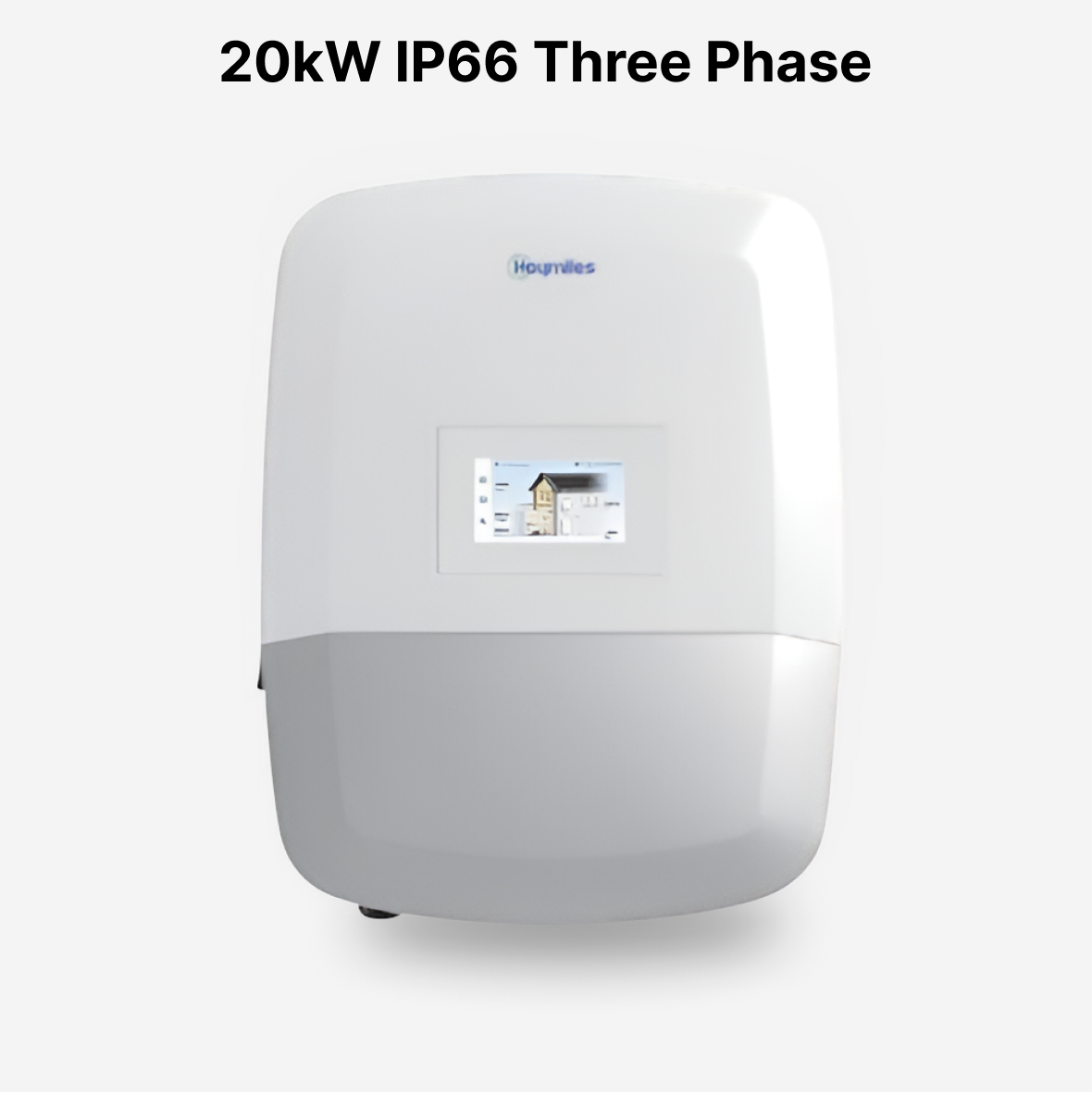

Hoymiles 20kW Three Phase 4 Mppts Hybrid Solar Inverter
Download Product Datasheet Hoymiles HIT-20L-G3S 20kW Three-Phase Hybrid Inverter Description The Hoymiles HIT-20L-G3S is a high-capacity 20kW...
- Rs.655,000.00
- Rs.655,000.00
- Unit price
- per
Please hurry! Only 15 left in stock
Subtotal:
Rs.655,000.00
10 customers are viewing this product
Couldn't load pickup availability
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product
Hoymiles HIT-20L-G3S 20kW Three-Phase Hybrid Inverter
Description
The Hoymiles HIT-20L-G3S is a high-capacity 20kW three-phase hybrid inverter designed for demanding solar energy-storage applications. It provides four MPPTs, up to 200% DC/AC oversizing, 100% unbalanced output, intelligent energy management, and scalable parallel operation.
With 40kW recommended maximum PV power, 350A maximum battery charge/discharge current, and up to 40kVA backup apparent power for 10 seconds, the HIT-20L-G3S provides a high-power platform for advanced three-phase energy systems.
Key Features
- 20kW rated output
- Three-phase hybrid inverter
- 40kW recommended maximum PV power
- Four MPPTs
- 20A input current per MPPT
- Up to 200% DC/AC oversizing
- 350A maximum charge/discharge current
- 100% unbalanced output
- Maximum 50% rated power per phase
- Peak Shaving and 8×24h TOU support
- Up to 10 units in parallel
- Integrated AI energy management
- Generator, heat pump and smart-load support
- IP66 protection
- 50A AC bypass
- <10ms backup switching
Product Specifications
| Specification | Details |
|---|---|
| Brand | Hoymiles |
| Model | HIT-20L-G3S |
| Rated Output Power | 20,000W |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60V |
| Max Charge/Discharge Current | 350A / 350A |
| Recommended Max PV Power | 40,000W |
| Max PV Input Voltage | 1,000V |
| Rated PV Voltage | 720V |
| Start-up Voltage | 150V |
| MPPT Voltage Range | 150–900V |
| Max PV Input Current | 20A × 4 |
| MPPT | 4 |
| Rated On-Grid Output | 20,000W |
| Max Apparent Power | 22,000VA |
| Rated Output Current | 28.9A |
| Max Output Current | 33.3A |
| Backup Output | 20,000W |
| Backup Peak Power | 40,000VA for 10s |
| Backup Switching Time | <10ms |
| AC Bypass Current | 50A |
| MPPT Efficiency | 99.9% |
| Maximum Efficiency | 98.5% |
| Battery-to-AC Efficiency | 95.7% |
| IP Rating | IP66 |
| Dimensions | 539 × 696 × 232mm |
| Weight | 41kg |
| Cooling | Smart fan |
| Communication | RS485, Wi-Fi/Ethernet/4G optional |
