Hoymiles HIT-15L-G3S 15kW Three-Phase Hybrid Inverter
Description

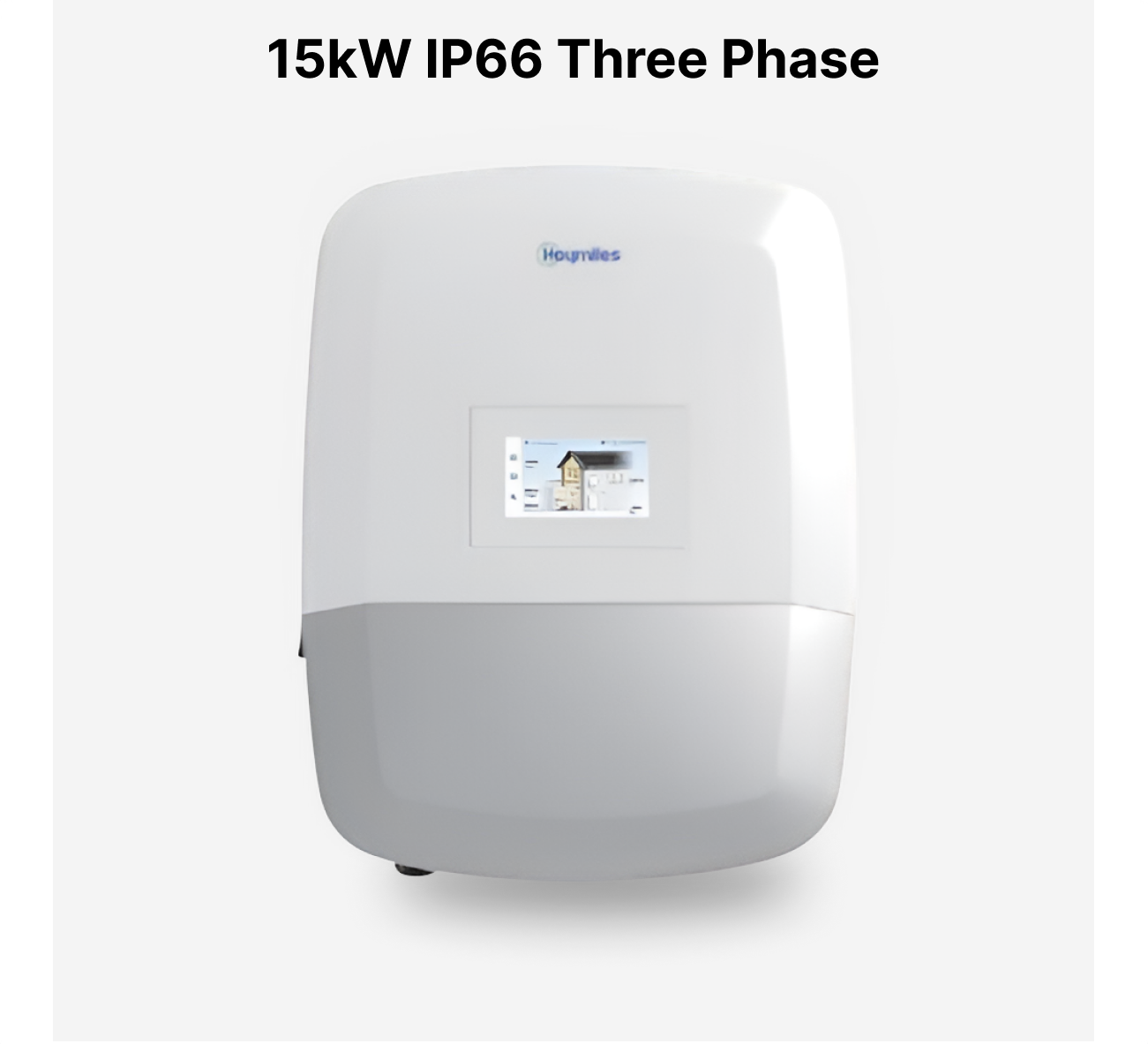

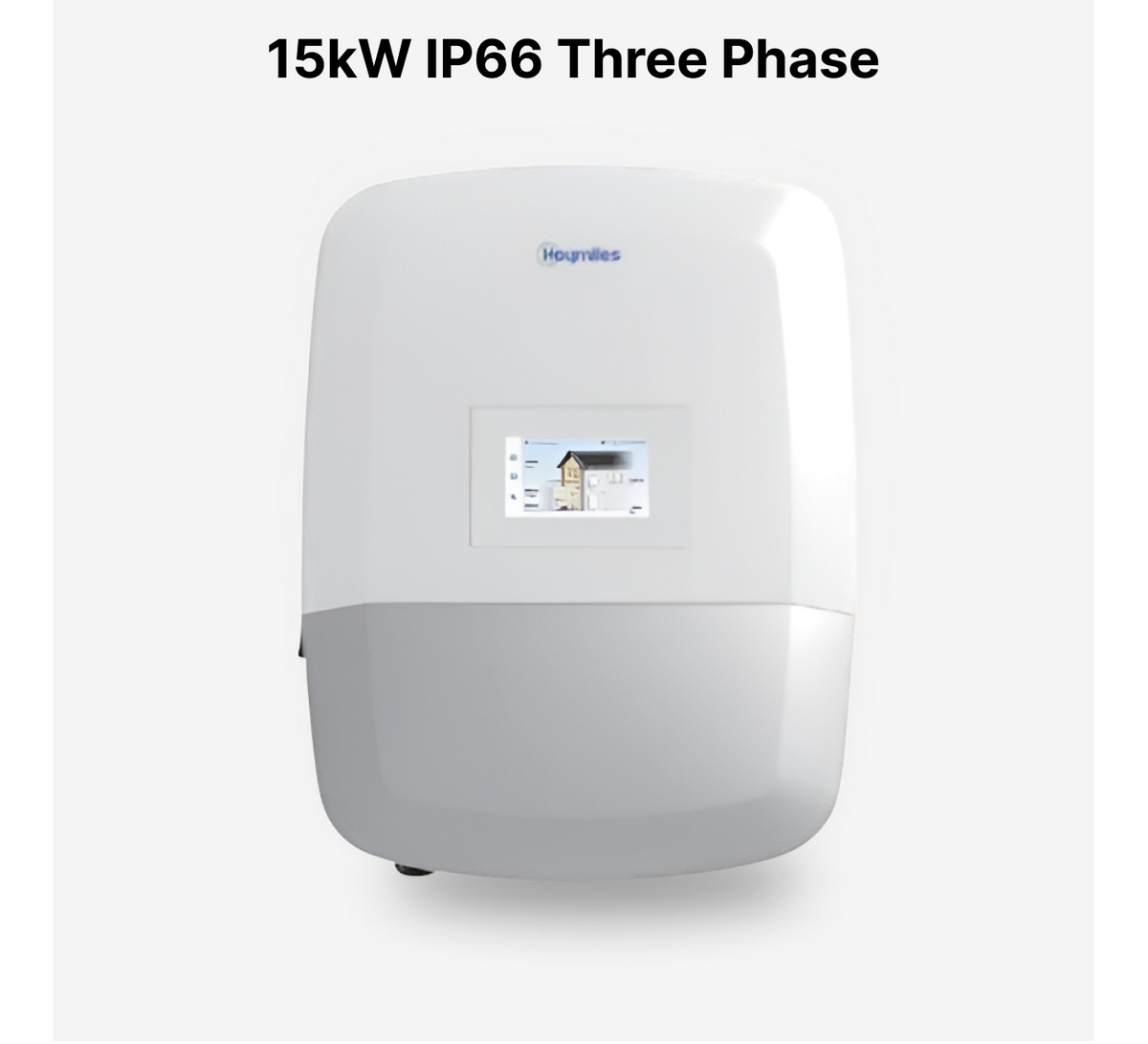

The Hoymiles HIT-15L-G3S is a 15kW three-phase hybrid inverter designed for advanced solar and battery energy-storage systems. It combines four MPPTs, high PV oversizing capability, intelligent energy-management modes, and flexible three-phase backup operation.
The inverter supports up to 30kW recommended PV power, 300A maximum battery charge/discharge current, 100% unbalanced output, and up to 10 units in parallel.
Key Features
- 15kW rated output
- Three-phase hybrid inverter
- 30kW recommended maximum PV power
- Four MPPTs
- 20A input current per MPPT
- Up to 200% DC/AC oversizing
- 300A maximum charge/discharge current
- 100% unbalanced output
- Peak Shaving and TOU support
- Up to 10 units in parallel
- AI energy management
- Generator, heat pump and smart-load integration
- IP66 protection
- 50A maximum AC bypass
- <10ms backup switching
Product Specifications
| Specification | Details |
|---|---|
| Brand | Hoymiles |
| Model | HIT-15L-G3S |
| Rated Output Power | 15,000W |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60V |
| Max Charge/Discharge Current | 300A / 300A |
| Recommended Max PV Power | 30,000W |
| Max PV Input Voltage | 1,000V |
| Rated PV Voltage | 720V |
| Start-up Voltage | 150V |
| MPPT Voltage Range | 150–900V |
| Max PV Input Current | 20A × 4 |
| MPPT | 4 |
| Rated On-Grid Output | 15,000W |
| Max Apparent Power | 16,500VA |
| Rated Output Current | 21.7A |
| Max Output Current | 25A |
| Backup Output | 15,000W |
| Backup Peak Power | 30,000VA for 10s |
| Backup Switching Time | <10ms |
| AC Bypass Current | 50A |
| MPPT Efficiency | 99.9% |
| Maximum Efficiency | 98.5% |
| Battery-to-AC Efficiency | 95.7% |
| IP Rating | IP66 |
| Dimensions | 539 × 696 × 232mm |
| Weight | 41kg |
| Cooling | Smart fan |
| Communication | RS485, Wi-Fi/Ethernet/4G optional |
