Hoymiles 12kW Three Phase 4 Mppts Hybrid Solar Inverter
Download Product Datasheet Hoymiles HIT-12L-G3S 12kW Three-Phase Hybrid Inverter Description The Hoymiles HIT-12L-G3S is a high-performance 12kW...
- Rs.485,000.00
- Rs.485,000.00
- Unit price
- per
Please hurry! Only 15 left in stock
Subtotal:
Rs.485,000.00
10 customers are viewing this product
Couldn't load pickup availability
Shipping
You have to pay Partial Payment for order confirmation
Estimated Shipping Time: 24 to 72 Hours
100% Original & Official Product

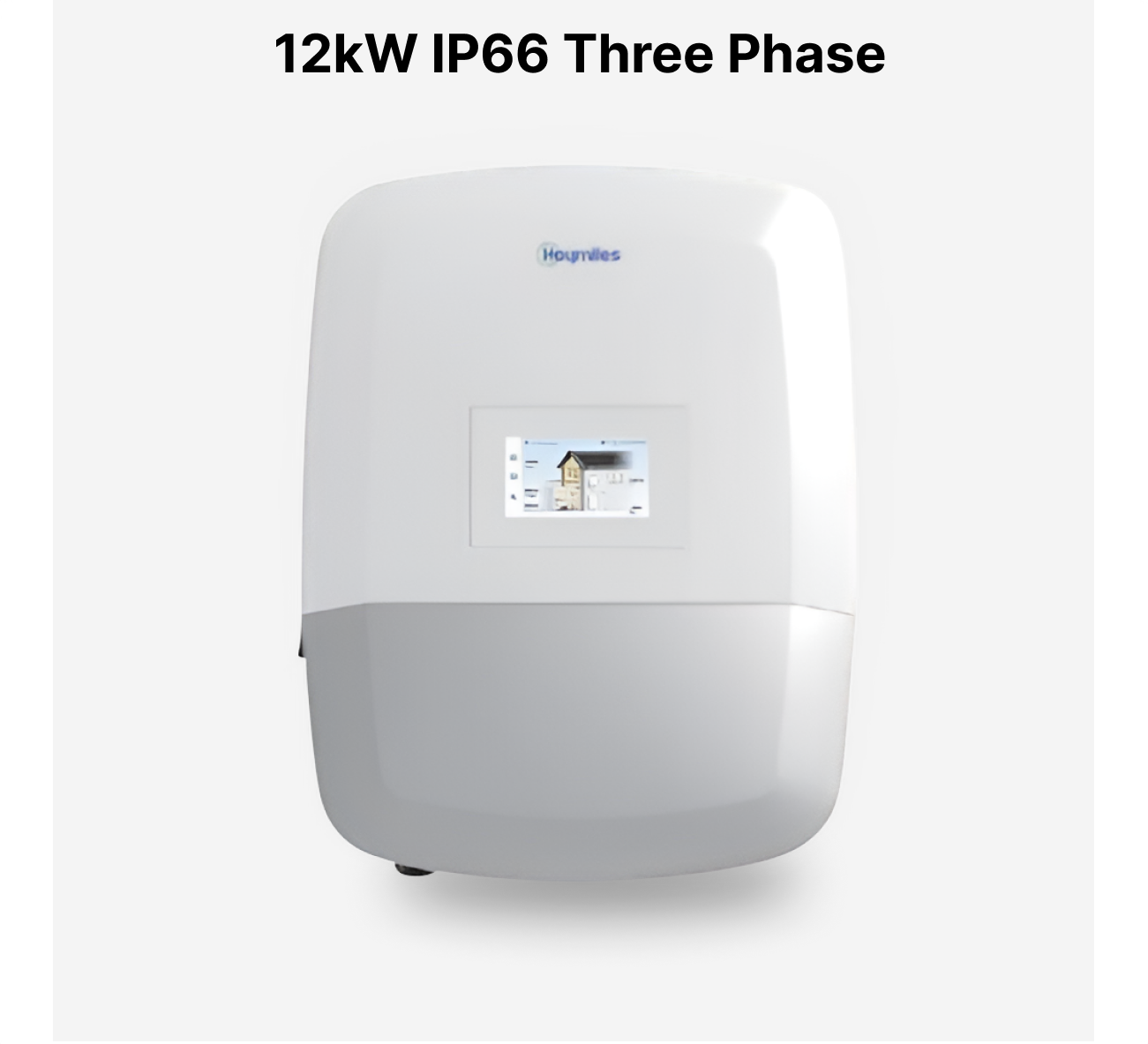

Hoymiles HIT-12L-G3S 12kW Three-Phase Hybrid Inverter
Description
The Hoymiles HIT-12L-G3S is a high-performance 12kW three-phase hybrid inverter designed for residential, commercial, and energy-storage applications. It features four MPPTs, 100% unbalanced output capability, intelligent energy-management modes, and support for both on-grid and off-grid operation.
The inverter supports up to 24kW recommended PV power, 250A maximum battery charge/discharge current, and parallel operation of up to 10 units.
Key Features
- 12kW rated output
- Three-phase hybrid inverter
- 24kW recommended maximum PV power
- 4 MPPTs
- 20A input current per MPPT
- Up to 200% DC/AC oversizing
- 250A maximum battery charge/discharge current
- 100% unbalanced output
- Maximum 50% rated power per phase
- Peak Shaving and 8×24h TOU support
- Up to 10 units in parallel
- AI energy management
- Generator, heat pump and smart-load support
- IP66 protection
- Up to 50A AC bypass
- <10ms backup switching
Product Specifications
| Specification | Details |
|---|---|
| Brand | Hoymiles |
| Model | HIT-12L-G3S |
| Rated Output Power | 12,000W |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60V |
| Max Charge/Discharge Current | 250A / 250A |
| Recommended Max PV Power | 24,000W |
| Max PV Input Voltage | 1,000V |
| Rated PV Voltage | 720V |
| Start-up Voltage | 150V |
| MPPT Voltage Range | 150–900V |
| Max PV Input Current | 20A × 4 |
| MPPT | 4 |
| Rated On-Grid Output | 12,000W |
| Max Apparent Power | 13,200VA |
| Rated Output Current | 17.3A |
| Max Output Current | 20A |
| Backup Output | 12,000W |
| Backup Peak Power | 24,000VA for 10s |
| Backup Switching Time | <10ms |
| AC Bypass Current | 50A |
| MPPT Efficiency | 99.9% |
| Maximum Efficiency | 98.5% |
| Battery-to-AC Efficiency | 95.7% |
| IP Rating | IP66 |
| Dimensions | 539 × 696 × 232mm |
| Weight | 41kg |
| Cooling | Smart fan |
| Communication | RS485, Wi-Fi/Ethernet/4G optional |
