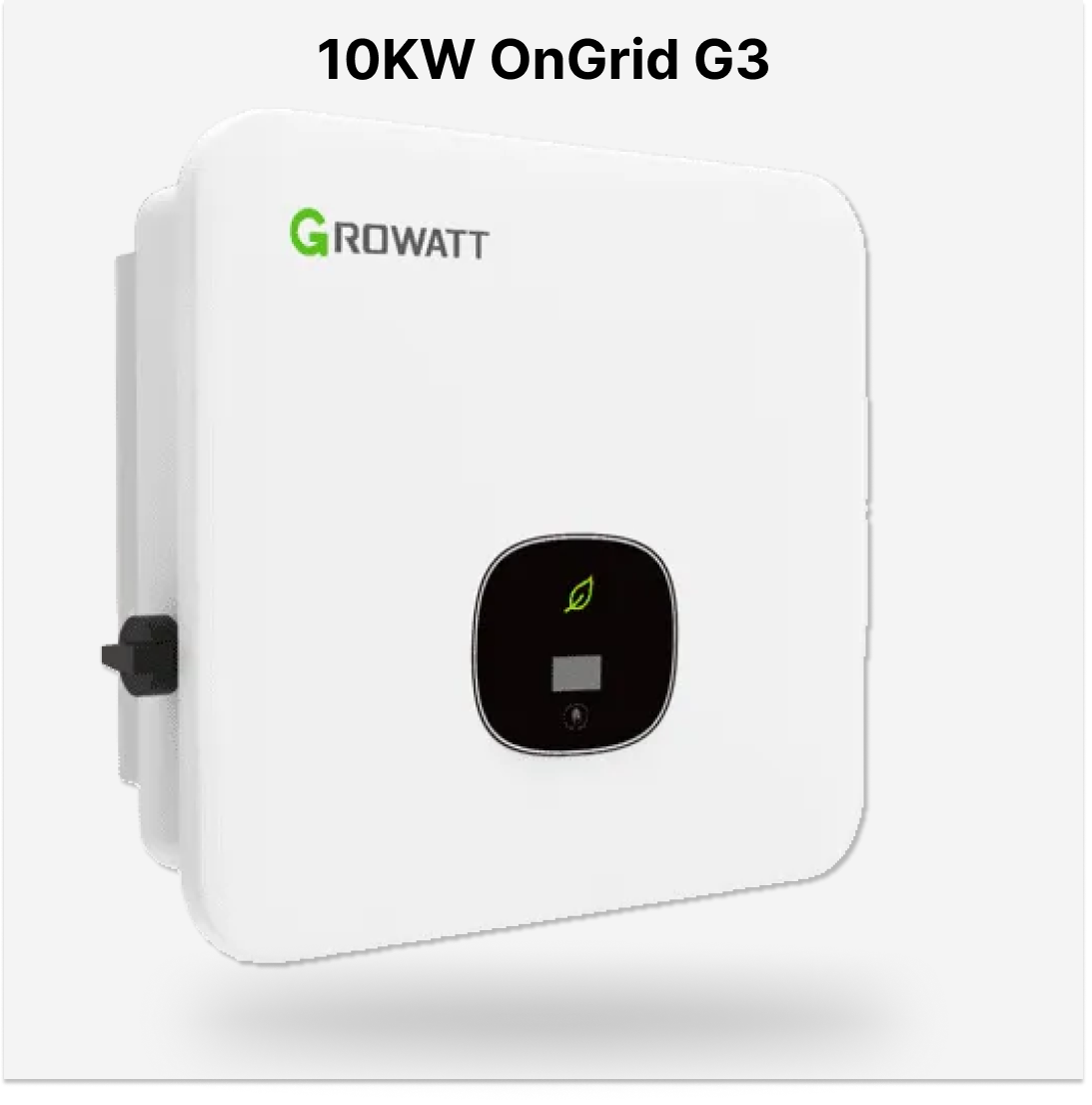

The Growatt MOD 10KTL3-XH (BP) is a battery-ready and backup-capable 10kW three-phase inverter, designed to maximize solar efficiency while ensuring energy security. With dual MPPT trackers, high conversion efficiency, and integrated active arcing protection, it is engineered for reliable residential and small commercial solar systems.
Backup Ready – Compatible with SYN 50-XH-30 for backup output
Battery Ready, Future Proof – Works with APX HV Battery System (5kWh–30kWh)
Dual MPPT Trackers – Flexible solar string design for optimal performance
High Efficiency – Up to 98.6% max. efficiency, 98.1% European efficiency
Active Arcing Protection (AFCI) – Safer system operation
Type II SPD on DC & AC Side – Enhanced surge protection
24h Self-Consumption Monitoring – Real-time usage tracking via OLED + LED display and WiFi/App
Robust Outdoor Design – IP66 protection and natural convection cooling
| Specification | Details |
|---|---|
| AC Nominal Power | 10,000W |
| Max. AC Apparent Power | 11,000VA |
| Max. Recommended PV Power | 20,000W |
| Max. Output Current | 16.7A |
| MPPT Trackers / Strings | 2 / 1 |
| MPPT Efficiency | 99.9% |
| Max. DC Voltage | 1100V |
| Nominal DC Voltage | 600V |
| MPPT Voltage Range | 140V – 1000V |
| Start Voltage | 160V |
| AC Nominal Voltage | 220V/380V, 230V/400V |
| AC Grid Frequency | 50/60Hz |
| THDi | <3% |
| Topology | Transformerless |
| Efficiency (Max. / Euro) | 98.6% / 98.1% |
| Battery Compatibility | APX HV Battery (5–30kWh) |
| Battery Voltage Range | 600V – 950V |
| Max. Charge Power | 10,000W |
| Max. Discharge Power | 10,000W |
| Backup Output (BP Version) | Supported via SYN 50-XH-30 |
| Cooling | Natural convection |
| Protection Degree | IP66 |
| Operating Temp. Range | -25°C ~ +60°C |
| Nighttime Power Consumption | < 5.5W |
| Weight | 14 kg |
| Dimensions (W × H × D) | 425 × 387 × 178 mm |
| Display & Monitoring | OLED + LED / WiFi + App |
| Interfaces | USB / RS485 / WiFi / LAN / GPRS / RF (optional) |
DC reverse polarity protection
Type II surge protection (AC & DC)
Active Arcing Protection (AFCI)
DC switch & AC short-circuit protection
Residual-current monitoring unit
Insulation resistance monitoring
Ground fault monitoring
Anti-islanding protection
String fault monitoring
The Growatt MOD 10KTL3-XH (BP) delivers 10kW of reliable power, future-proof battery integration, and backup readiness, making it an ideal inverter for homes and businesses that want both efficiency and energy security.
