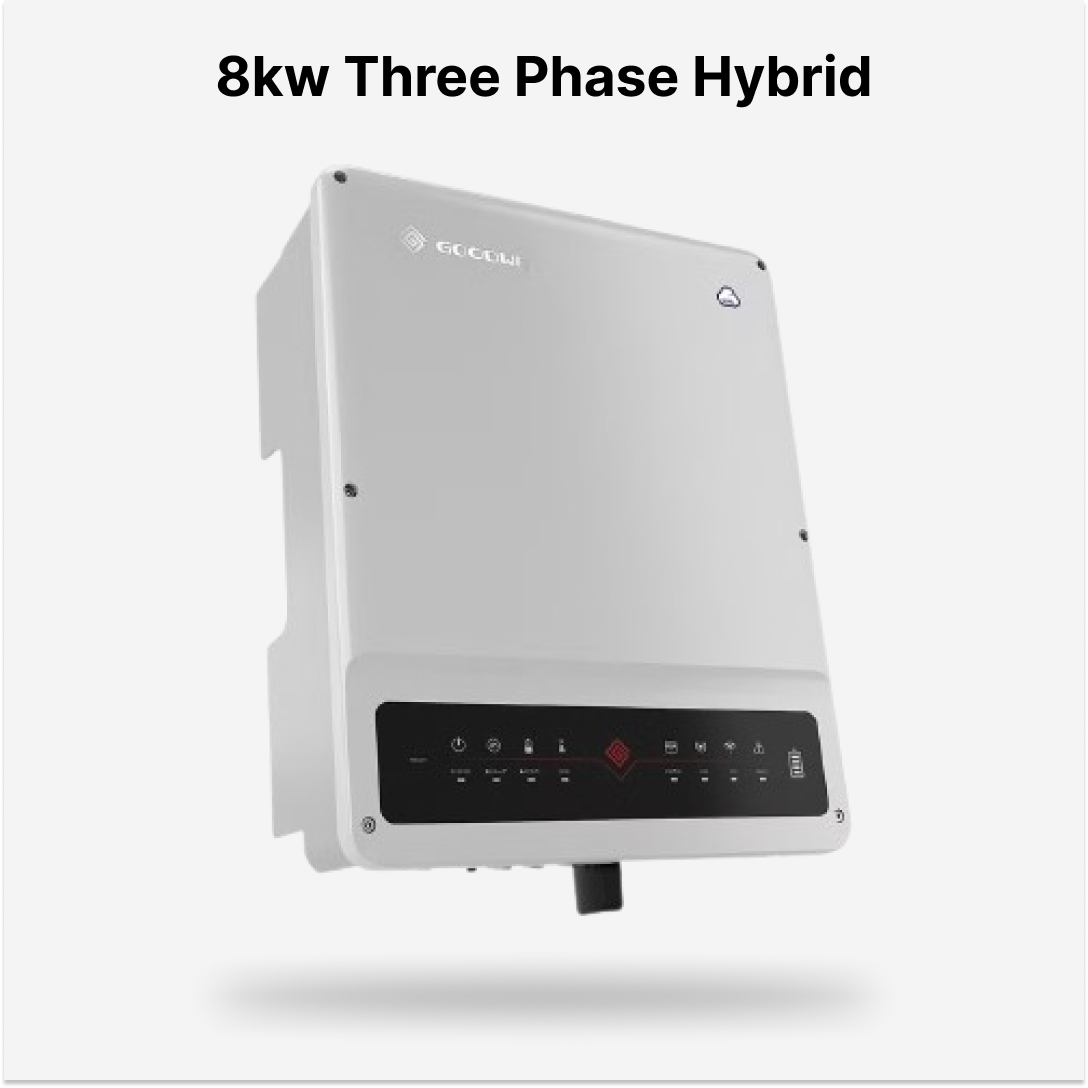

Goodwe 8KW Three Phase Hybrid Solar Inverter

Download Product Datasheet

GoodWe ET PLUS+ Series 8KW Three Phase Hybrid Inverter

Model: GW8KN-ET
Smart Control | Quiet Operation | Reliable Energy Storage Solution

The GoodWe ET PLUS+ 8KW hybrid inverter is engineered to support modern three-phase residential solar energy systems with high efficiency and quiet performance. With a maximum PV input of 12,000W and dual MPPT trackers, it ensures optimized power generation even in variable conditions. This model offers seamless on-grid and backup power functionality, maximizing self-consumption and minimizing grid reliance.

It comes equipped with advanced safety features, peak shaving capabilities, and smart load control—making it ideal for households with dynamic energy needs. Thanks to its fanless, natural convection design and IP66 protection, it performs reliably in both indoor and outdoor environments.

Key Features:

• High Power Output: 8000W nominal output with 8800VA max grid-tied capacity

• PV Input Flexibility: Dual MPPTs, 16A input current per string, up to 12,000W PV input

• Battery Compatibility: Supports lithium-ion batteries (180–600V), 25A max charge/discharge

• Backup Power Ready: Provides 8KW continuous power off-grid with 16,000VA surge capacity

• Smart Energy Management: Peak shaving and dry contact support for smart load control (e.g., heat pumps)

• Durable & Safe: IP66 rating, Type II DC & Type III AC surge protection, built-in protections

• Fanless Cooling: Silent, maintenance-free natural convection design

• Modern Communication: RS485, CAN, Wi-Fi (with optional LAN & 4G)

• User Interface: LED indicators and app support for real-time monitoring
