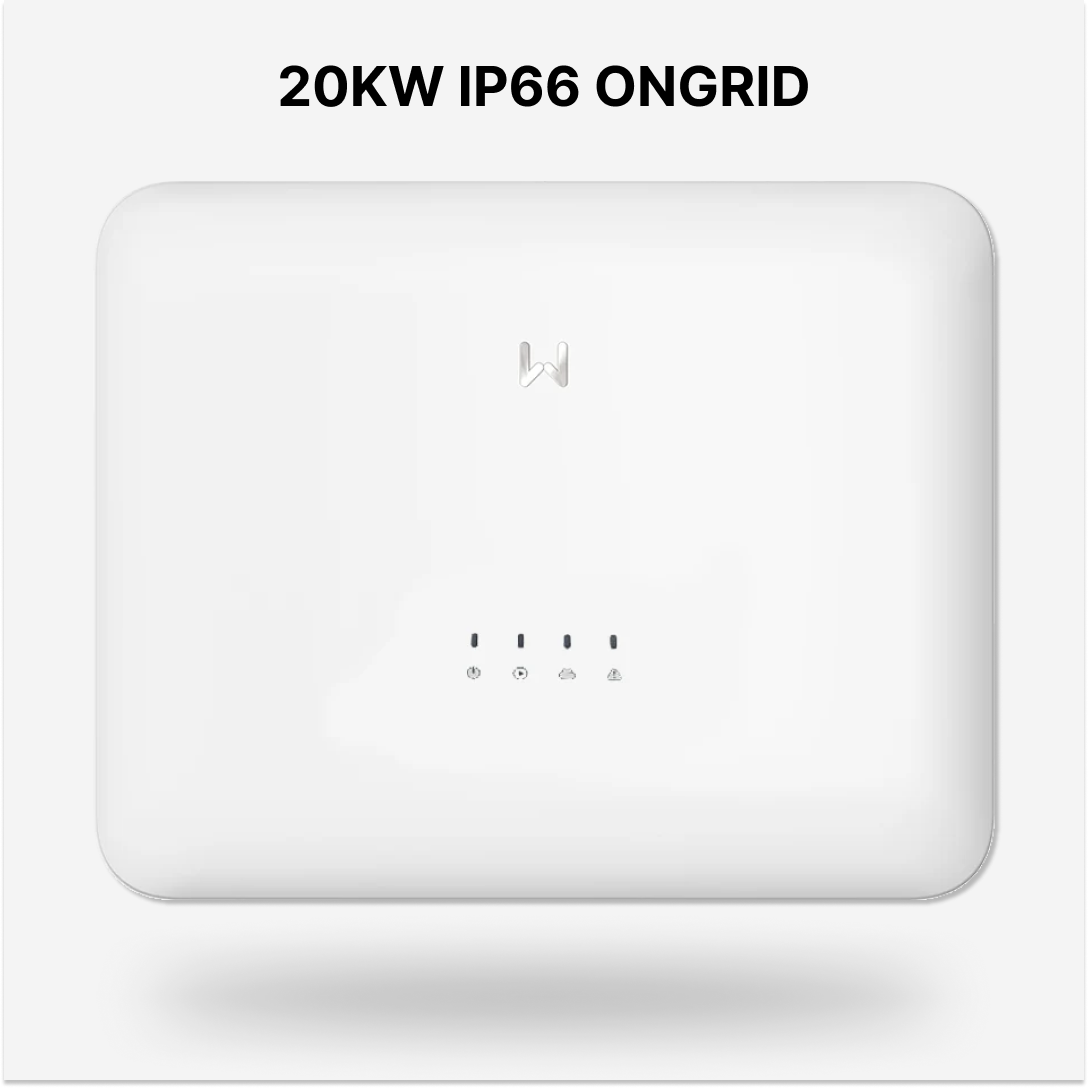

GoodWe 20KW Ongrid solar inverter

The GoodWe GW20K-SDT-30 G3 is a highly efficient three-phase on-grid solar inverter, designed for residential and small commercial applications. It offers advanced safety features, flexible power capabilities, and robust performance for diverse energy needs.

Key Features:

• Wide Power Range: Suitable for installations with capacities from 8KW to 30KW.
• 150% DC Oversizing: Maximizes energy harvesting from the solar panels.
• 110% AC Overloading: Provides reliable performance even during high-demand periods.
• Lightweight & Easy Installation: Simplifies setup, reducing installation time.
• Three-Phase Design: Ideal for residential and small commercial projects requiring efficient energy management.
• Advanced Safety Features:
  • PV String Monitoring: Real-time tracking of solar panel performance.
  • Anti-Islanding Protection: Ensures system safety during grid outages.
  • Input Reverse Polarity Protection: Safeguards the inverter from incorrect wiring.
  • Residual Current Monitoring: Prevents electrical leakage for added protection.

Specifications:

• Input Voltage: Max 1100V, MPPT range from 140V to 1000V.
• Output Power: 20KW nominal, with a max output of 22KW.
• Grid Connection: Compatible with 3L/N/PE, 180–280V AC grid voltage, and 50/60Hz grid frequency.
• Max. Output Current: 33.3A, adjustable power factor from 0.8 leading to 0.8 lagging.
• Cooling: Smart fan cooling system, suitable for altitudes up to 4000m.

The GoodWe GW20K-SDT-30 G3 provides a reliable, efficient, and scalable energy solution, making it an excellent choice for larger residential and small commercial on-grid solar systems.
