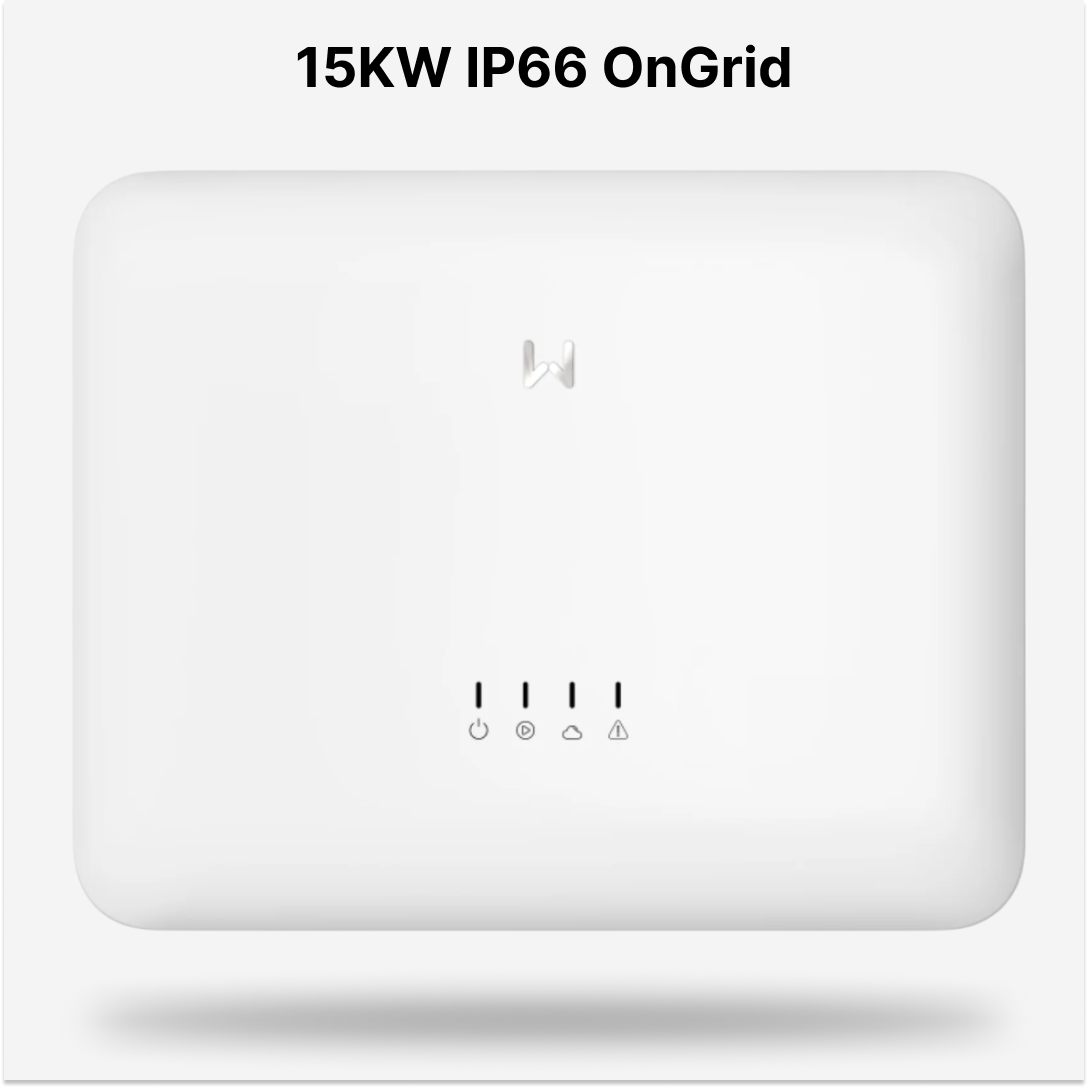

GoodWe 15KW OnGrid Solar Inverter

GoodWe GW15K-SDT-30 G3 (15KW Three Phase On-Grid Inverter)

Brand: GoodWe
Type: Solar Inverter (Three Phase – On-Grid)
Model: GW15K-SDT-30

Key Features:

• Efficiency: Max. 98.5%, Euro 98.2%

• Input Voltage Range: 140V ~ 1000V

• Max. Input Voltage: 1100V

• MPPT: 2 Trackers, 1 String per Tracker

• Max. Input Current: 22A per MPPT

• Output Power: 15,000W nominal / 16,500W peak

• Max. Output Current: 25A

• Power Factor: Adjustable from 0.8 lagging to 0.8 leading

• THDi: <3%

Protection & Safety:

• PV string current monitoring

• Reverse polarity & insulation resistance detection

• Residual current monitoring (RCMU)

• AC overcurrent, short circuit & overvoltage protection

• Anti-islanding protection

• DC & AC surge protection (Type III, Type II optional)

• AFCI, Emergency Shutdown (optional)

Build & Interface:

• Cooling: Smart Fan

• Ingress Protection: IP66

• Communication: RS485, WiFi, LAN, 4G/Bluetooth (optional)

• User Interface: LED / LCD (optional) + App

• Weight: 16.2kg

• Dimensions: 530 × 413 × 227 mm

• Noise: <45dB

• Altitude: Max. 4000m
