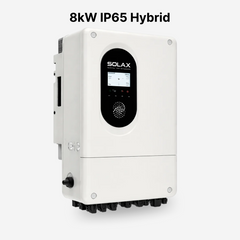

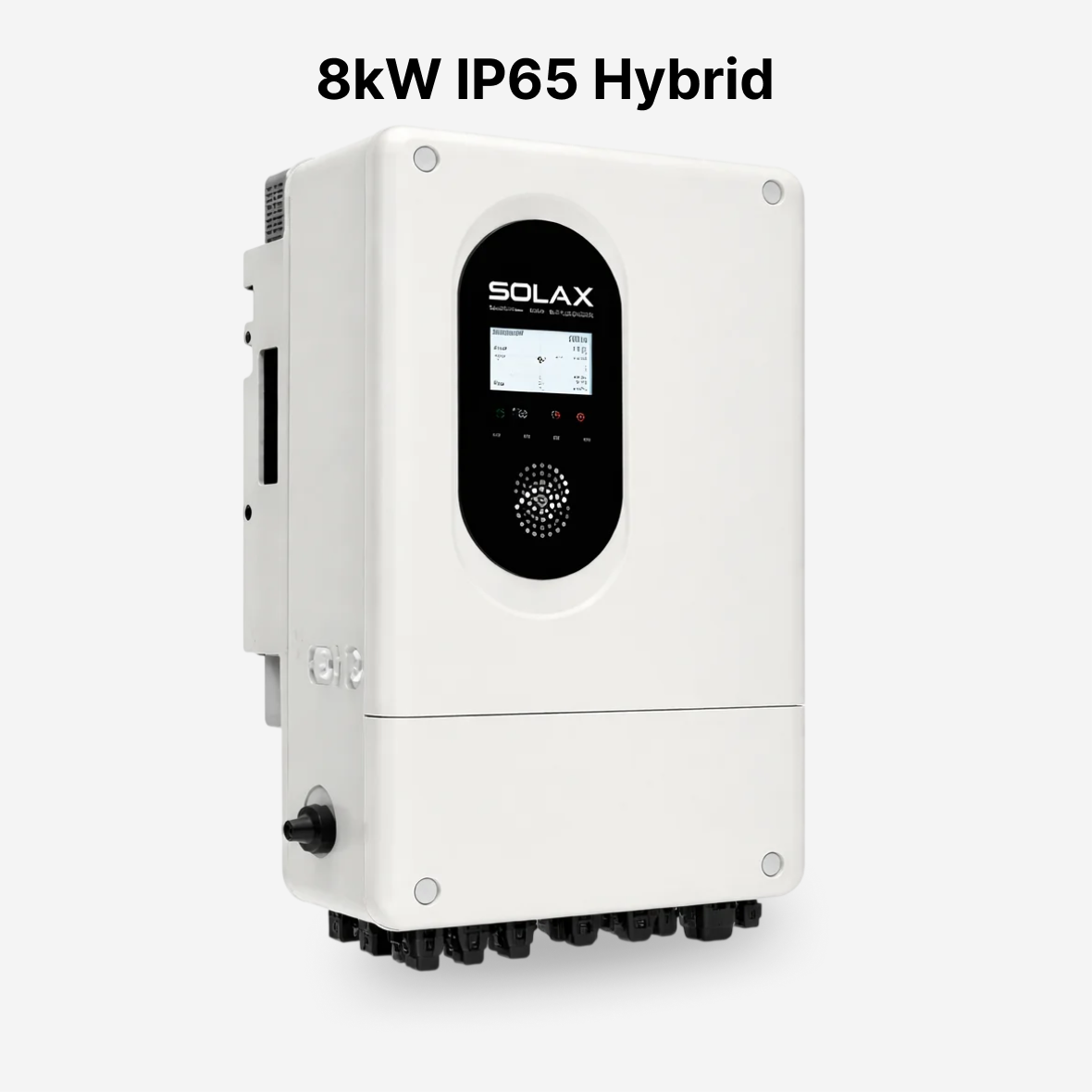

SolaX X1-Lite-LV 8kW Single-Phase Low-Voltage Hybrid Inverter

Description

The SolaX X1-Lite-LV 8kW Hybrid Inverter is a high-performance single-phase low-voltage hybrid inverter designed for residential solar energy systems. With support for up to 200% PV oversizing, it can accommodate a recommended PV array of up to 16kWp, helping maximize solar generation throughout the day.

The X1-Lite-LV 8kW features dual MPPTs with up to 32A input current per string, making it optimized for modern high-power solar panels. It also provides up to 110% AC output and 200% peak EPS power for 10 seconds, delivering strong performance for both normal and backup operation.

With a maximum battery charging and discharging current of 220A, support for Lithium and Lead-Acid batteries, and a single-unit UPS-level switchover time of less than 8ms, the inverter provides fast and reliable backup power. It also supports smart load management, built-in shadow tracking, and microgrid and generator functions for flexible system operation.

Key Features

• 8kW single-phase low-voltage hybrid inverter
• Up to 200% PV oversizing
• Maximum recommended PV array power of 16kWp
• Up to 110% AC output
• Dual MPPT technology
• Up to 32A input current per string
• Optimized for high-power solar panels
• 200% peak EPS power for 10 seconds
• Maximum 220A battery charging/discharging current
• Supports Lithium and Lead-Acid batteries
• Low start-up voltage
• Built-in shadow tracking
• Smart load management
• UPS-level switchover time below 8ms
• Microgrid and generator function
• Up to 10 units parallel operation
• IP65 protection rating
• Type II SPD on DC and AC sides
• Optional AFCI protection
• LED + LCD display
• Wi-Fi and LAN communication
• Suitable for on-grid and off-grid applications

Product Specifications

Product Details

The SolaX X1-Lite-LV 8kW Hybrid Inverter is engineered to provide efficient solar energy conversion and dependable battery backup for residential applications. Its 16kWp recommended PV capacity and 200% PV oversizing capability allow a larger solar array to be connected to maximize daily energy harvesting.

The inverter provides an 8kW rated output, with up to 8.8kW maximum output apparent power. Its dual MPPT configuration supports 32A per MPPT, making it suitable for high-current, high-power solar modules.

For battery storage, the X1-Lite-LV operates with 40–60V batteries and supports a maximum 220A charge/discharge current. Its EPS system delivers 8kVA rated power and up to twice the rated power for 10 seconds, with a switchover time of less than 8ms for fast backup response.

The inverter is rated IP65 for protection against dust and water ingress and operates from -25°C to +60°C. It also includes Type II surge protection on both DC and AC sides, with optional AFCI protection available.

With support for up to 10 units in parallel, smart load management, generator and microgrid functions, built-in shadow tracking, and Wi-Fi/LAN connectivity, the SolaX X1-Lite-LV 8kW provides a flexible solution for scalable on-grid and off-grid solar energy systems.
