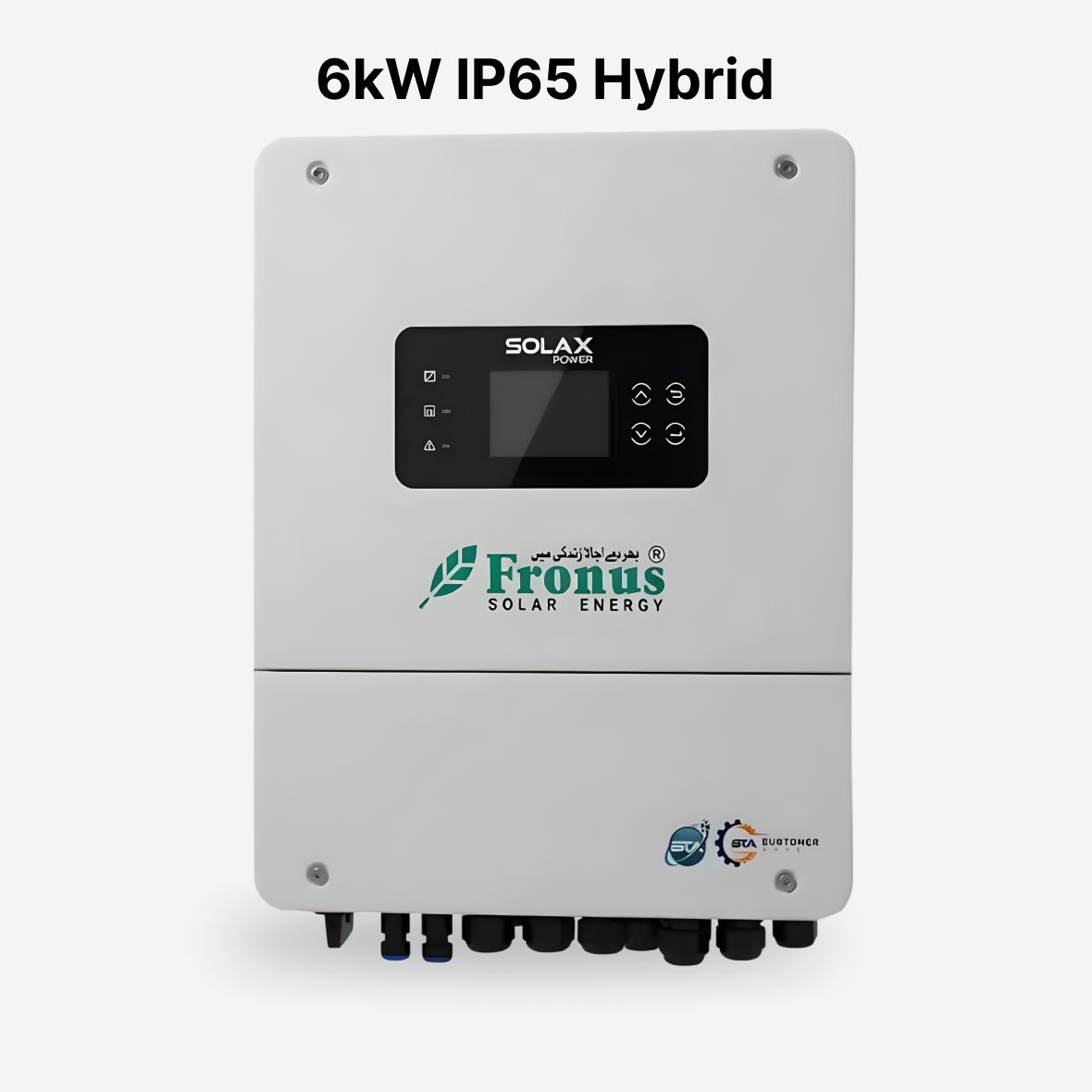

SolaX X1-HYB-LV 6.0kW Single-Phase Hybrid Inverter

Description

The SolaX X1-HYB-LV 6.0kW Hybrid Inverter is a high-efficiency single-phase hybrid inverter designed for residential solar energy systems. It supports up to 200% PV oversizing, allowing a maximum PV array power of 12kWp, while delivering up to 110% AC output for improved energy utilization.

The inverter features dual independent MPPTs, a maximum DC input current of 16A per MPPT, and a wide MPPT voltage range of 80–520V, making it suitable for modern high-power solar panels. Its built-in shadow tracking technology helps optimize PV generation under partial shading conditions.

With UPS-level switching time of less than 10ms, 200% peak EPS apparent power for 10 seconds, and maximum battery charging/discharging current of 120A, the X1-HYB-LV provides fast and reliable backup power. It also supports smart load management, CT compatibility, generator integration, and up to 10 units in parallel for on-grid and off-grid applications.

Key Features

• 6kW single-phase hybrid inverter
• Up to 200% PV oversizing
• Maximum 12,000W PV array power
• Maximum 9,000W PV input power
• Dual independent MPPTs
• 16A maximum input current per MPPT
• Built-in shadow tracking
• 80–520V MPPT voltage range
• Up to 110% AC output
• 200% peak EPS apparent power for 10 seconds
• Maximum 120A battery charging/discharging current
• Lithium and lead-acid battery compatibility
• UPS-level switching time below 10ms
• Smart load management
• CT compatible
• Generator compatible
• Up to 10 units parallel operation
• IP65 protection rating
• Integrated SPD
• AFCI protection available as an option
• Wi-Fi, LAN, 4G and RS485 communication options
• LED + LCD user interface
• 5-year warranty

Product Specifications

Product Details

The SolaX X1-HYB-LV 6.0kW Hybrid Inverter combines high PV capacity, advanced battery management, and fast backup switching in a compact single-phase design. Its 200% PV oversizing capability allows up to 12kW of PV array power, helping maximize solar generation throughout the day.

The inverter provides a 40–60V battery voltage range and supports both Lithium and Lead-Acid batteries, with up to 120A charging and discharging current. Its EPS function provides up to 12kVA peak apparent power for 10 seconds, while the transfer time remains below 10ms for fast backup response.

For outdoor installation, the X1-HYB-LV features an IP65 protection rating and operates from -25°C to +60°C, with power derating above 45°C. It also incorporates integrated surge protection and optional AFCI protection for enhanced system safety.

The SolaX X1-HYB-LV 6.0kW supports advanced communication through CAN, RS485, Wi-Fi, LAN, and optional 4G, while up to 10 units can operate in parallel, making it suitable for scalable on-grid and off-grid solar installations.
