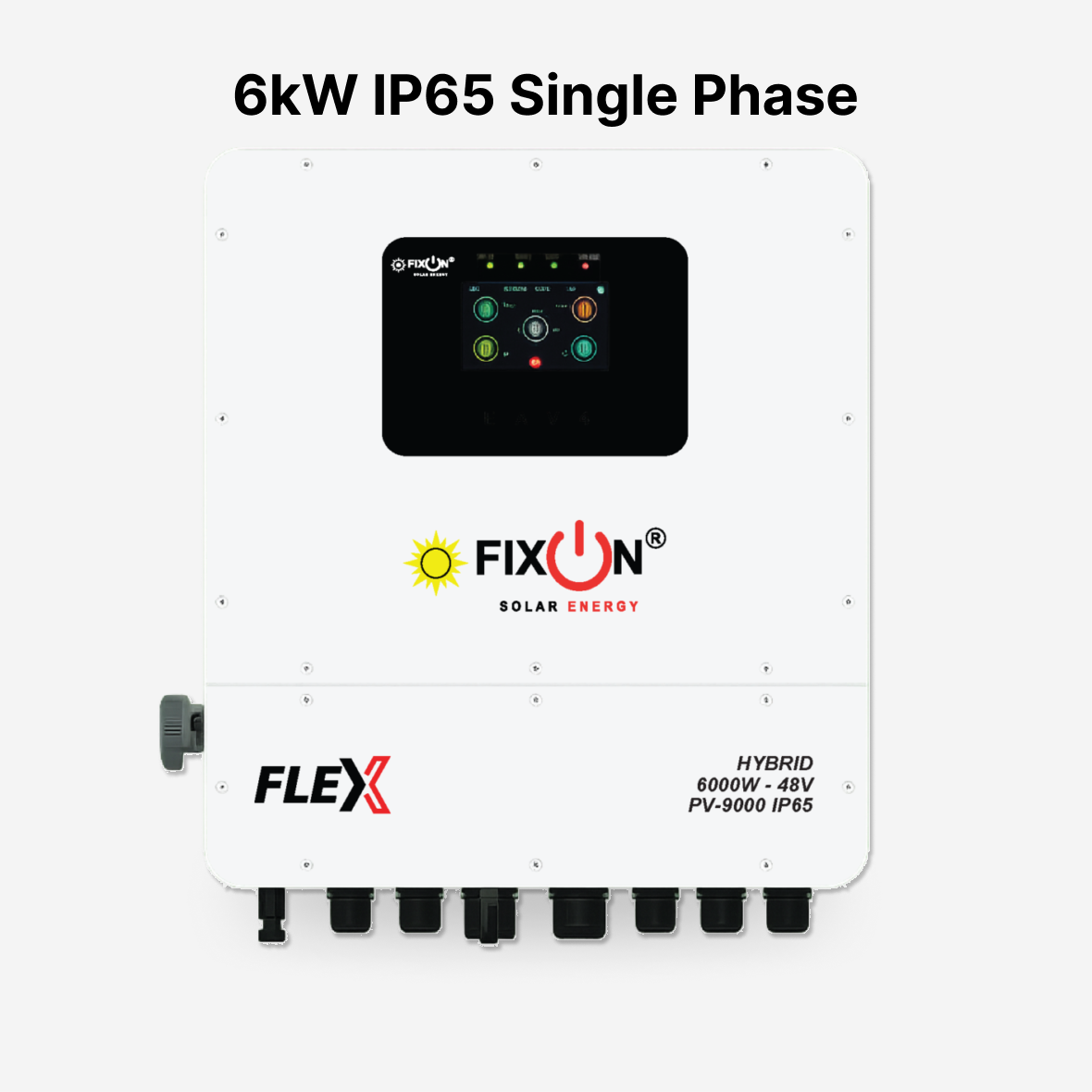

Fixon FLEX 6kW Single Phase Hybrid Solar Inverter – PV-9000 (FXN-6KW-FLX6)

The Fixon FLEX 6kW is a single-phase 48V hybrid solar inverter designed for homes and small businesses that want backup power with efficient solar charging. It has 2 MPPT trackers and accepts up to 9,000W of solar panel power, so you can install more panels than the inverter’s rated output. It has two independent AC inputs, two outputs, a touchscreen, and Wi-Fi for monitoring. The IP65 rating protects it against dust and water jets, and up to 6 units can be connected in parallel for larger systems. It comes with a 5-year warranty.

Key Features

• 6kW rated output, single-phase
• 9,000W maximum PV input with 2 MPPT trackers
• Wide MPPT voltage range of 50V to 450V DC
• 135A maximum solar charging current
• 2 independent AC inputs and 2 outputs
• Parallel operation of up to 6 units
• Current transformer (CT) supported
• Touchscreen display
• Wi-Fi monitoring
• Pure sine wave output
• IP65 protection
• 5-year warranty

Specifications

• Brand: Fixon
• Series: FLEX
• Model: FXN-6KW-FLX6 (PV-9000)
• Type: Hybrid inverter, single phase (1-phase in / 1-phase out)
• Rated Output Power: 6000W
• Maximum PV Input Power: 9000W
• Maximum Charging Power: 6000W
• Number of MPPT Trackers: 2
• Maximum Input Current: 18A per tracker
• MPPT Voltage Range: 50V to 450V DC
• Maximum DC Voltage: 520V
• PV Start-up Voltage: 117V DC
• Battery Voltage: 48V DC nominal
• Maximum Solar Charging Current: 135A
• AC Output Voltage: 220/230/240VAC
• Nominal Output Current: 26.1A
• Frequency: 50Hz / 60Hz (auto sensing)
• Power Factor: Above 0.99
• Maximum Conversion Efficiency (DC to AC): 97%
• Battery Mode Efficiency: 93%
• Maximum AC Input Current: 40A
• Parallel Operation: Up to 6 units for single-phase supply (3 units for three-phase supply)
• Communication: RS485, CAN, Wi-Fi, dry contact
• Dimensions: 521 x 470 x 236 mm
• Weight: 23.5kg
• Protection Rating: IP65
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95%, non-condensing
