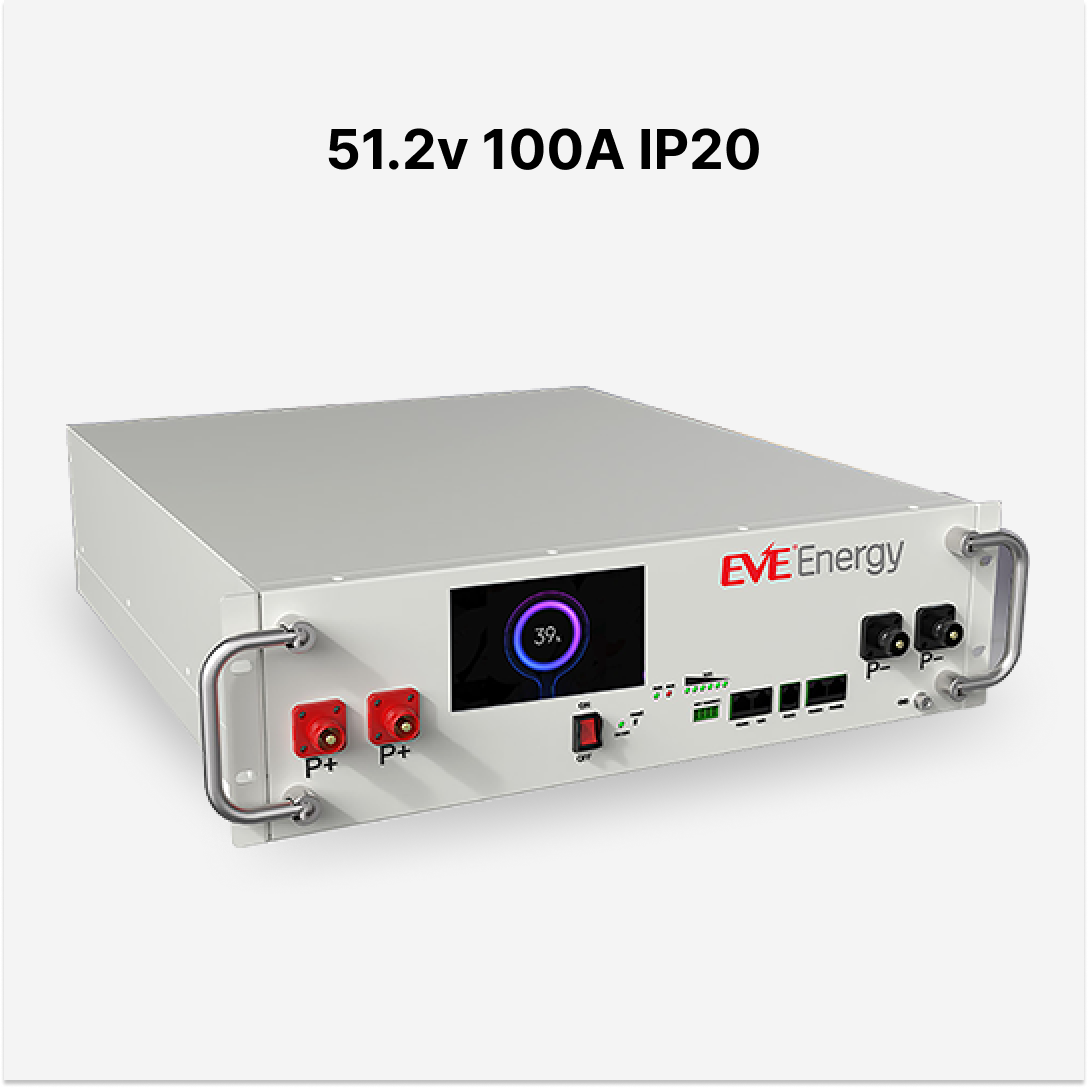

EVE-LVI-5.0 – Residential Subrack Lithium Battery System

Detailed Technical Specifications

General Overview

• Model: EVE-LVI-5.0
• System Type: Residential Subrack Battery (Rack-mounted)
• Battery Chemistry: LiFePO₄ (LFP – Lithium Iron Phosphate)
• Design: 19-inch rack compatible (3U height)
• Application: Residential / small commercial energy storage

Energy & Capacity

• Rated Energy: 5.12 kWh
• Rated Capacity: 100 Ah
• Nominal Voltage: 51.2 V
• Depth of Discharge (DoD): 90%

Cell Configuration

• Configuration: 1P16S
• Cell Type: LFP (long-life lithium cells)

Charge & Discharge Parameters

• Max Discharging Current: 100 A
• Optimized for stable daily cycling
• Smart BMS: Multi-layer protection & monitoring

Cycle Life & Durability

• Cycle Life: ≥6000 cycles
• Design Life: Up to 15 years
• High stability & long-term performance

Communication & Integration

• Communication Interfaces:
  • RS485 (×2)
  • CAN (×2)
• Protocols Supported: MODBUS / CAN
• Compatibility:
  • Works with major inverter brands:
    • Knox
    • GoodWe
    • Growatt
    • Pylontech
    • Deye
    • Solis
    • Itel

Scalability

• Parallel Support: Up to 15 batteries
• Flexible system expansion for higher capacity

Safety & Certifications

• Safety Features:
  • Advanced BMS protection system
  • Thermal stability (LFP chemistry)
• Certifications:
  • CE
  • UN38.3
  • IEC62619
  • UL9540A
  • UL1973 (design compliant)

Environmental Conditions

• Humidity: ≤70% (non-condensing)
• Operating Conditions: Indoor use recommended

Physical Specifications

• Dimensions (H × W × D):
  • 130.5 / 150 × 500 × 442 mm
• Weight: 43 kg
• Mounting: Rack-mounted (19-inch cabinet, 3U)

Cooling & Protection

• Cooling Method: Passive (natural cooling)
• Ingress Protection: IP20
