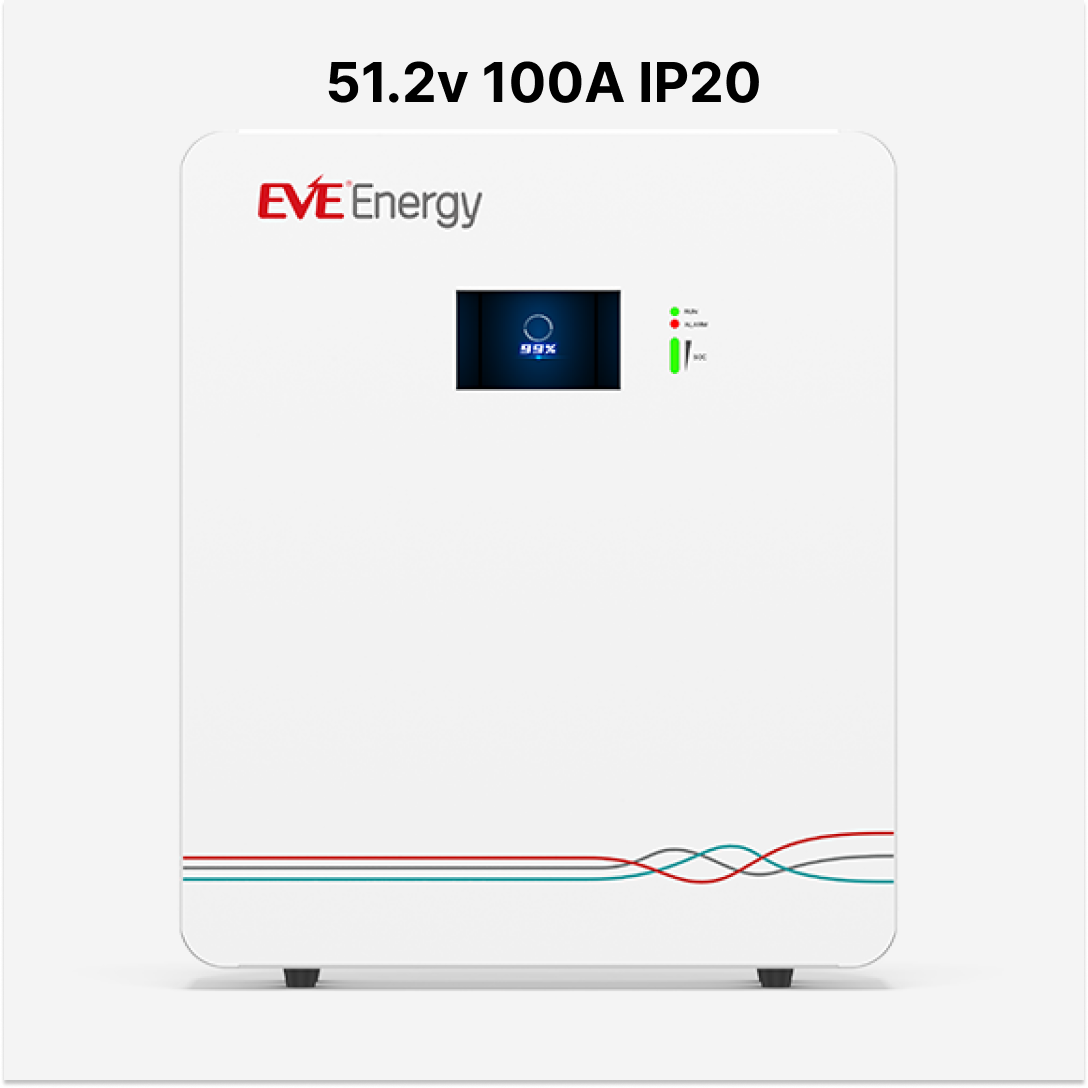

EVE-LVW-2.0 – Residential Wall-Mounted Lithium Battery System

Detailed Technical Specifications

General Overview

• Model: EVE-LVW-2.0
• System Type: Residential Wall-Mounted Battery
• Battery Chemistry: LiFePO₄ (LFP – Lithium Iron Phosphate)
• Design: Slim wall-mounted / floor-standing
• Application: Home energy storage systems

Energy & Capacity

• Rated Energy: 5.12 kWh
• Rated Capacity: 100 Ah
• Nominal Voltage: 51.2 V
• Depth of Discharge (DoD): 90%

Cell Configuration

• Configuration: 1P16S
• Cell Type: Long-life LFP cells

Charge & Discharge Parameters

• Standard Current: 50 A
• Max Discharging Current: 100 A
• Optimized for daily residential usage

Cycle Life & Durability

• Cycle Life: ≥6000 cycles
• Design Life: Up to 15 years
• High thermal stability & long lifespan

Communication & Integration

• Communication Interfaces:
  • RS485 (×2)
  • CAN (×2)
• Compatible Inverters:
  • Knox
  • GoodWe
  • Growatt
  • Pylontech
  • Deye
  • Solis
  • Itel

Scalability

• Parallel Support: Up to 15 units
• Flexible expansion for higher storage capacity

Safety & Certifications

• Safety Features:
  • Dual-layer protection (Air switch + Intelligent BMS)
  • Strong metal casing
• Certifications:
  • CE
  • UN38.3
  • IEC62619
  • UL9540A
  • UL1973 (design compliant)

Environmental Conditions

• Humidity: ≤70% (non-condensing)
• Recommended Use: Indoor installation

Physical Specifications

• Dimensions (H × W × D): 560 × 493 × 173 mm
• Weight: 50 kg (±2 kg)
• Design: Slim profile (137mm visual thickness look)

Cooling & Protection

• Cooling Method: Passive (natural cooling)
• Ingress Protection: IP20

Installation Options

• Wall-mounted
• Floor-mounted (vertical stacking possible)
