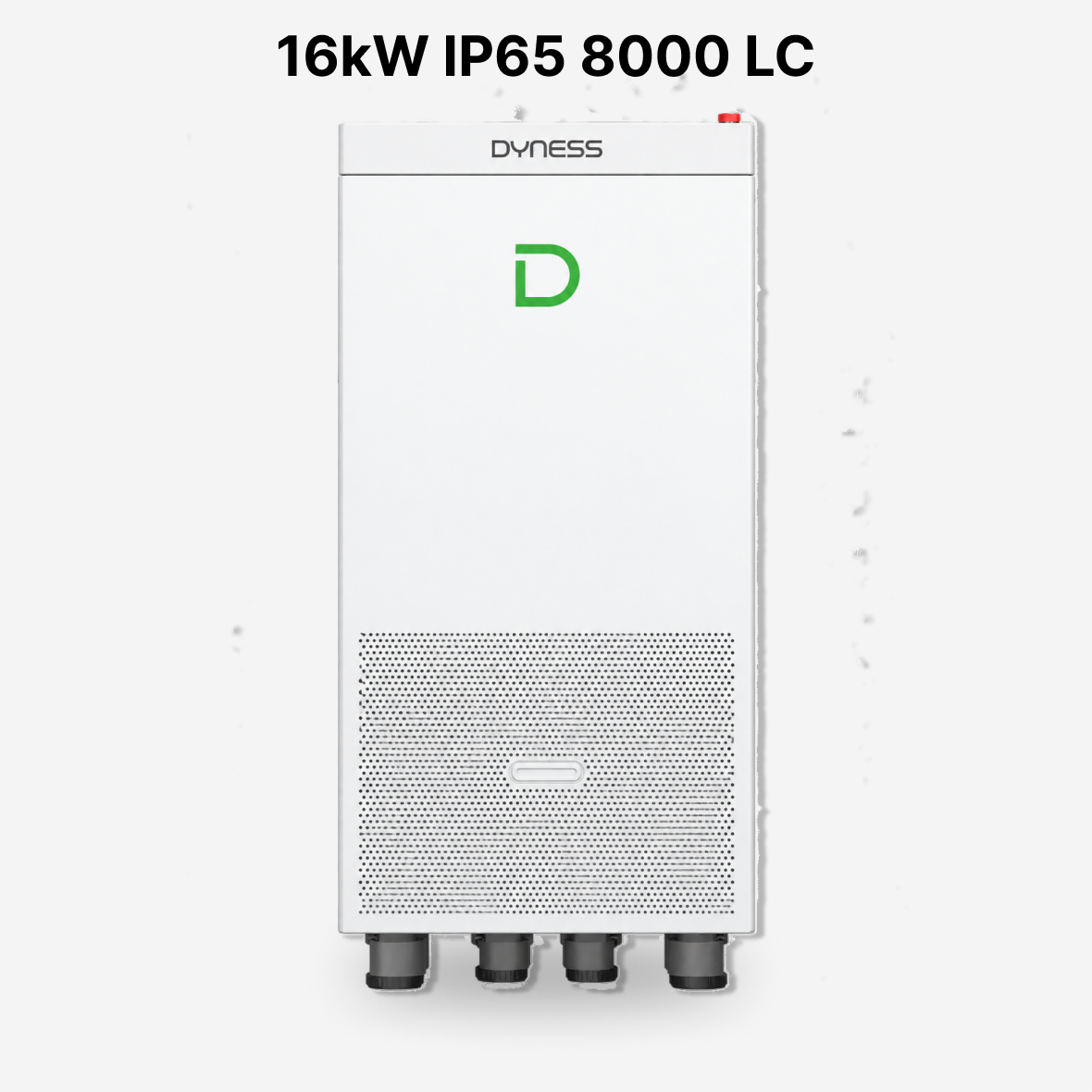

Dyness PowerBrick Plus 16KW 51.2v 314A Lithium Battery

Download Product Datasheet

Dyness PowerBrick Plus 16kWh – 51.2V LiFePO4 Home Energy Storage Battery:

The Dyness PowerBrick Plus is a 51.2V 314Ah low-voltage LiFePO4 battery designed for home energy storage. It has an IP65 rating for indoor or outdoor installation, a built-in fire extinguishing system for added safety, and can be mounted on the floor or wall. Up to 50 units can be connected in parallel for larger capacity. It works with most major inverter brands and comes with a 10-year warranty.

Key Features

• 314Ah LiFePO4 cells with 8000+ cycle life
• IP65 protection for indoor or outdoor installation
• Built-in aerosol fire extinguisher that detects and extinguishes fire in 5 seconds
• Maximum charge and discharge current of 200A
• Optional automatic self-heating for cold weather charging
• Floor-mounted or wall-mounted installation, with wheels for easy moving
• WiFi and app monitoring
• Expandable up to 50 units in parallel
• 10-year warranty

Specifications

• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Battery Energy: 16.07kWh
• Usable Battery Energy: 15.27kWh
• Nominal Capacity: 314Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V to 57.6V
• Depth of Discharge: 95 percent
• Recommended Charge/Discharge Current: 140A (0.45C)
• Maximum Charge/Discharge Current: 200A (0.64C)
• Peak Discharge Current: 300A for 2 minutes
• Recommended Charge/Discharge Power: 7.168kW
• Maximum Charge/Discharge Power: 10.24kW
• Cycle Life: 8000 cycles or more
• Charging Temperature: 0°C to 55°C (-20°C to 55°C with optional self-heating)
• Discharging Temperature: -20°C to 55°C
• Dimensions (W x D x H): 435 x 235 x 850 mm
• Net Weight: 119kg
• Protection Level: IP65
• Communication: CAN / RS485
• User Interface: WiFi and app
• Expansion: Up to 50 units in parallel (up to 803kWh)
• Certification: UN38.3 / IEC62619
• Compatible Inverters: Solis, Goodwe, Growatt, SMA, Victron, Deye, APsystem, and more
• Warranty: 10 years
