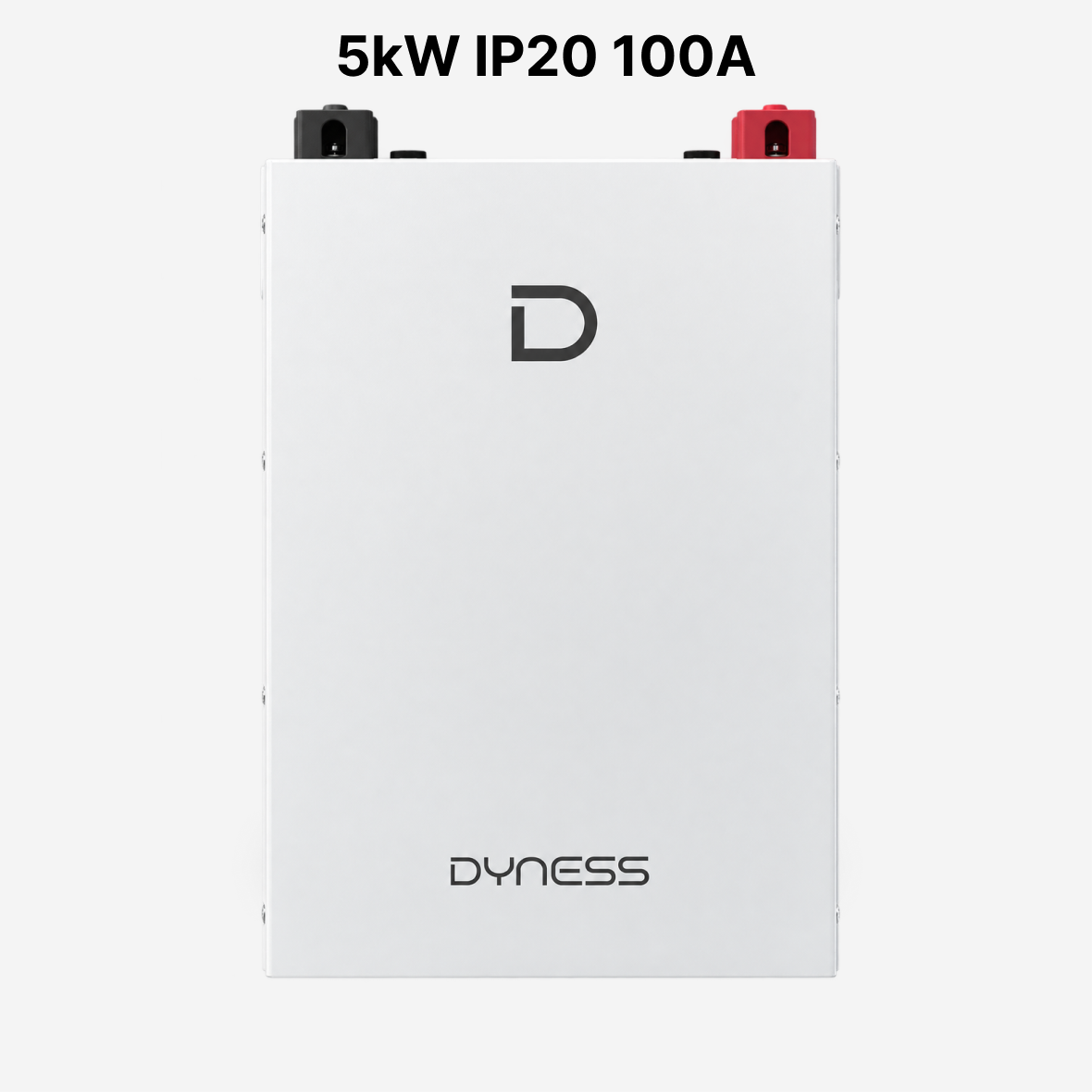

Dyness DL5.0F 5.12kWh 51.2V LiFePO4 Lithium Battery

Description

The Dyness DL5.0F is a high-performance 5.12kWh residential low-voltage lithium battery designed for reliable solar energy storage. Built with LiFePO4 (LFP) battery technology, it provides 100Ah capacity, 51.2V nominal voltage, and up to 5.12kW maximum discharge power.

With a 95% depth of discharge, 1C maximum discharge rate, flexible wall, rack, or floor installation, and support for up to 50 units in expansion, the DL5.0F is suitable for residential solar systems and scalable energy-storage applications. It also supports CAN/RS485 communication and is compatible with a wide range of inverter brands.

Key Features

• 5.12kWh nominal battery energy
• 4.864kWh usable battery energy
• LiFePO4 (LFP) battery technology
• 51.2V nominal voltage and 100Ah capacity
• Up to 1C / 100A maximum discharge rate
• Maximum discharge power up to 5.12kW
• 95% depth of discharge (DOD)
• ≥8,000-cycle life under specified test conditions
• Multiple installation options: wall-mounted, rack-mounted, or floor-mounted
• Compatible with standard 19-inch racks
• Expandable by connecting up to 50 units
• CAN and RS485 communication
• Optional Wi-Fi + APP monitoring
• Optional built-in aerosol fire extinguisher
• Compact CTP (Cell-to-Pack) design
• Operating discharge temperature from -20°C to 55°C
• Compatible with SMA, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye, Sungrow and other inverters

Product Specifications

Product Details

The Dyness DL5.0F 5.12kWh Lithium Battery is designed for homeowners and solar-energy systems requiring dependable and scalable energy storage. Its 51.2V low-voltage architecture, 100Ah capacity, and 95% DOD provide substantial usable energy while maintaining flexibility for daily solar charging and discharging.

The battery's compact Cell-to-Pack (CTP) design saves installation space, while its wall, rack, and floor-mounting options make it adaptable to different system configurations. Multiple DL5.0F batteries can be expanded to create larger storage systems, with support for up to 50 units.

With CAN/RS485 communication, optional Wi-Fi and APP monitoring, and broad inverter compatibility, the Dyness DL5.0F is a practical solution for residential solar energy storage, backup power, and scalable battery systems.
