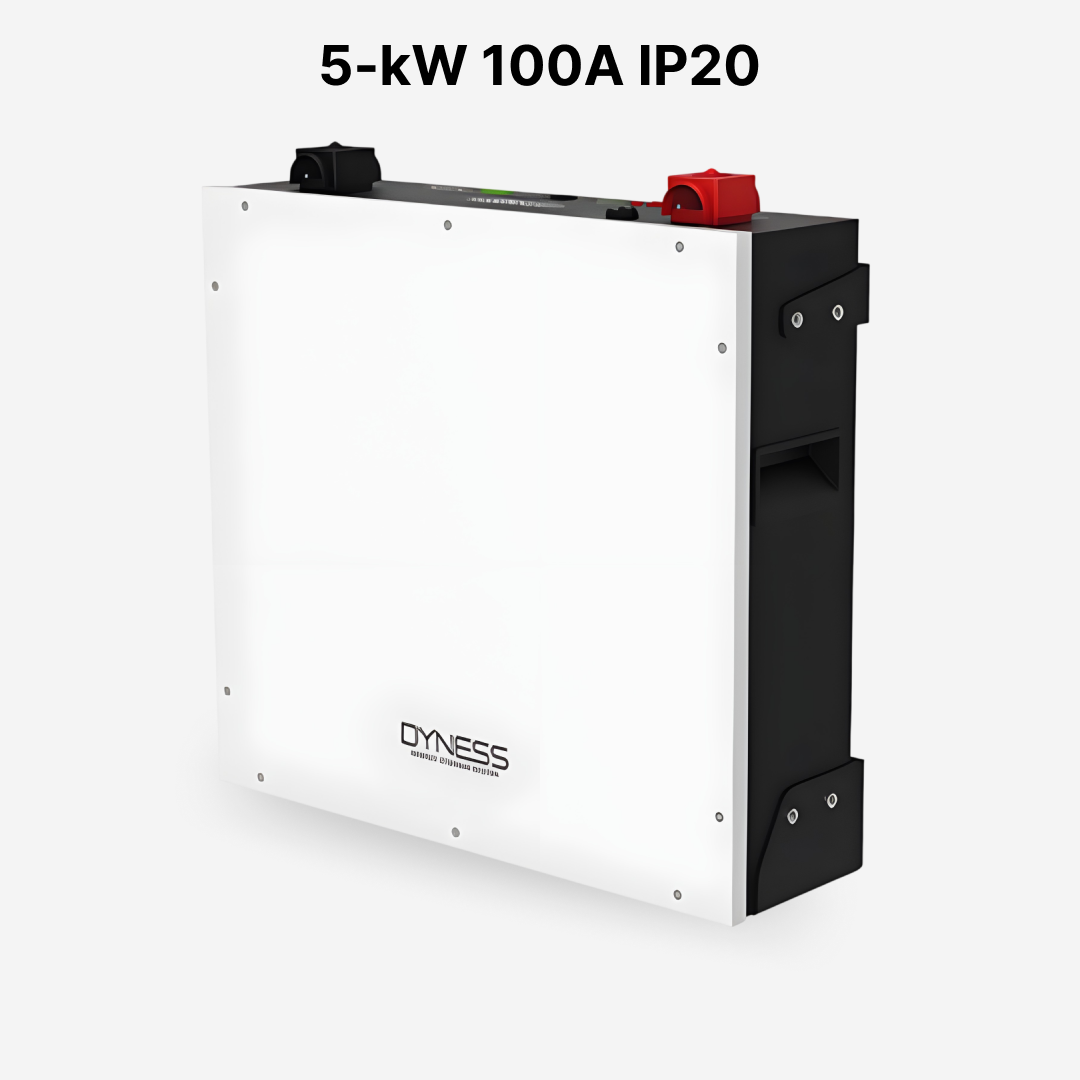

DL5.0C Pro is suitable for residential and small commercial/industrial scenarios, with up to 50 units in parallel and an energy range from 5.12 kWh to 256 kWh. High cycle life and built-in safety features ensure reliable, long-term electricity backup.
Key Features:
Technical Specifications:
| Spec | Value |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8–57.6V |
| Recommended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C Rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max. Charge/Discharge Current | Charge 75A / Discharge 100A |
| Peak Discharge Current | 120A @ 10min |
| Depth of Discharge (DOD) | 95% |
| Net Weight | 46kg |
| Dimension (W/D/H) | 488 / 515 / 150 mm |
| Charging Temp. Range | 0–55°C / -20–55°C (with heating function) |
| Discharging Temp. Range | -20–55°C |
| Communication | CAN / RS485 |
| WiFi Module | Built-in WiFi module; APP OTA function |
| Cycle Life | ≥8000 Cycles |
| Protection Level | IP20 |
| Active Fire Protection System | Optional Aerosol fire extinguisher |
| Expansion | Up to 50 units in parallel |
| Pros | Usable in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3 / CE-EMC / IEC62619 / CE-RED |
| Compatible Inverters | SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, DEYE, etc. |
