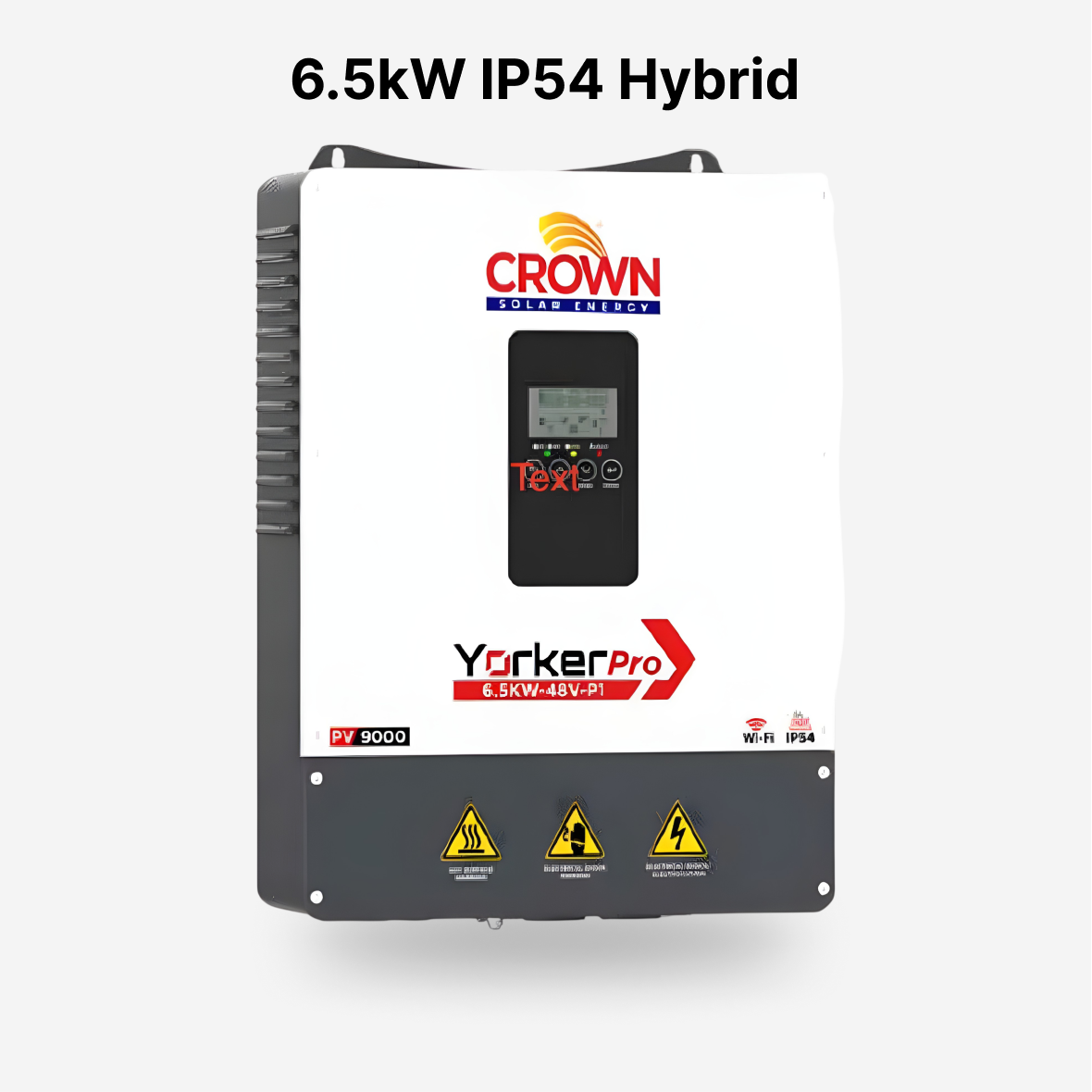

Crown Yorker Pro 6.5kW Pure Sine Wave Hybrid Solar Inverter

Key Features

• 6.5kW output power with battery and PV
• 6kW output power in battery-only mode
• Built-in MPPT solar charge controller with up to 99.5% tracking efficiency
• Supports up to 9000W PV input
• Supports 600W+ solar panels
• 120A maximum PV charging current
• Supports Crown Elektraboost and lead-acid batteries
• Works without a battery
• Bidirectional DC soft-start technology for extended service life
• Ti28 Series DSP for fast, stable, and reliable operation
• Wi-Fi monitoring through the Solar of Things App
• HMI LCD display
• RS485, CAN, and RS232 communication interfaces
• Pure sinusoidal waveform output
• 208/220/230/240VAC selectable output
• IP54 ingress protection rating
• Operating temperature from -10°C to 60°C

Product Specifications

Product Details

The Crown Yorker Pro 6.5kW Pure Sine Wave Hybrid Solar Inverter is a single-phase hybrid inverter designed to integrate solar power, battery storage, and AC power for reliable energy management. The CSE-Y(P)6.5K48VP1 delivers 6.5kW output with battery and PV, while battery-only operation provides up to 6kW.

The inverter features a built-in MPPT solar charge controller with up to 99.5% tracking efficiency and supports up to 9000W of PV input power. It has a 60–450Vdc MPPT range, 500Vdc maximum PV voltage, and supports 600W+ solar panels.

The 48V battery system supports AGM, FLD, LIB, FEL, and CUS battery types, with a battery voltage range of 42–61V. The inverter also supports operation without a battery and is compatible with Crown Elektraboost and lead-acid batteries.

For monitoring and communication, the Crown Yorker Pro 6.5kW includes an HMI LCD display, RS485, CAN, RS232, and Wi-Fi monitoring through the Solar of Things App. Its pure sinusoidal output supports selectable 208/220/230/240VAC output voltage.

With IP54 ingress protection, an operating temperature range of -10°C to 60°C, and a compact 487.2 × 347.6 × 122.7mm design, the Crown Yorker Pro 6.5kW is suitable for residential and commercial solar energy systems requiring high-capacity hybrid power management.
