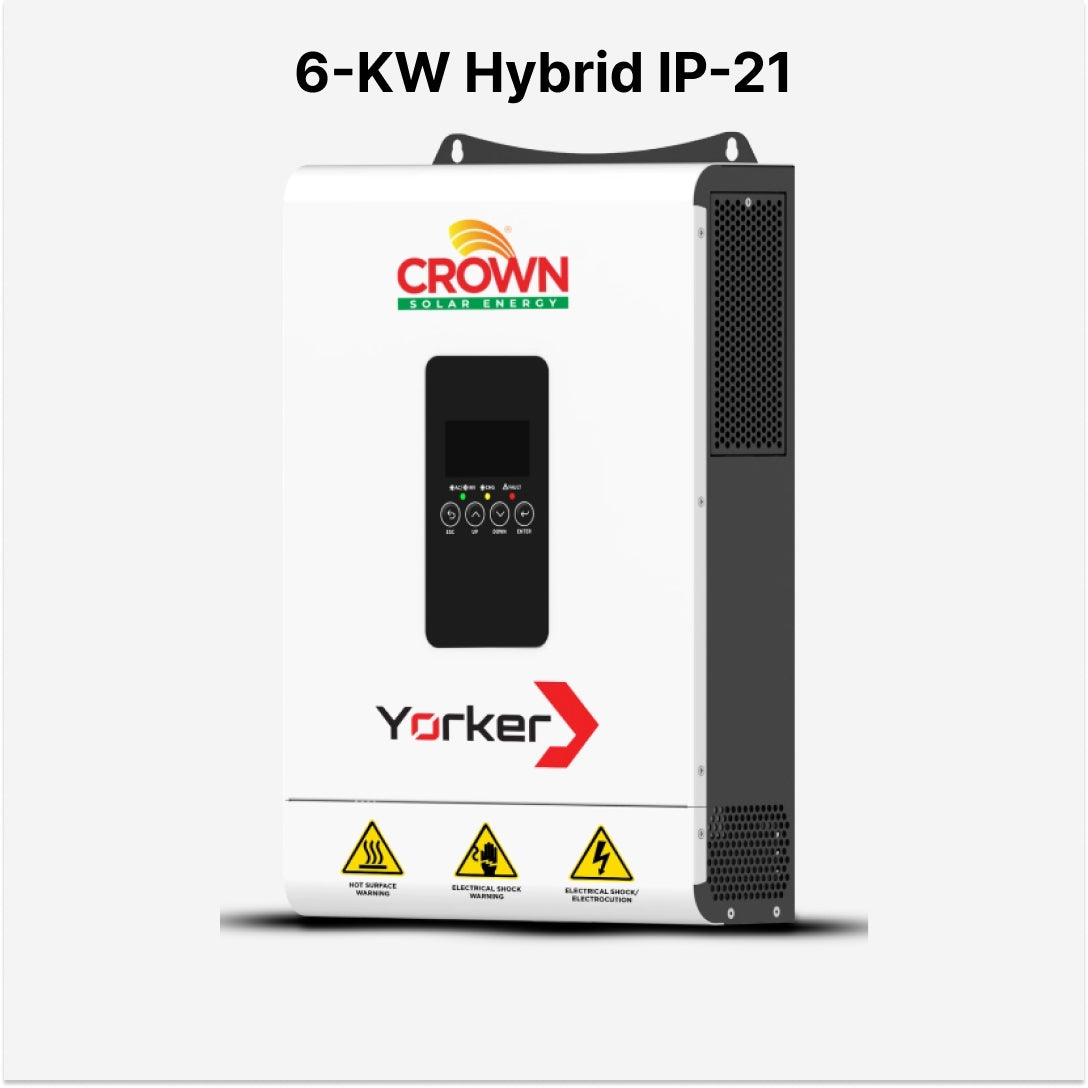

CSE-Y6K48VP1 – Single Phase Hybrid Inverter

Detailed Technical Specifications

General Overview

• Model: CSE-Y6K48VP1
• Product Type: Single Phase Hybrid Inverter
• Rated Output Power: 6000 VA / 9000 W (PV Supported)
• Topology: DSP-based hybrid inverter (TI 28 Series)
• Efficiency Features:
  • High-speed DSP processing for stable & reliable performance
  • MPPT tracking efficiency up to 99.5%
• Special Features:
  • Works without a battery
  • Bidirectional DC soft start (extends lifespan)
  • Compatible with Lithium & Lead-acid batteries
  • Crown Elektraboost supported
  • Remote monitoring via Solar of Things App

Battery Specifications

• Battery Type: Lithium / Lead-acid
• Nominal Voltage: 48 V DC
• Voltage Range: 42 – 61 V DC
• Maximum Charge Current: 120 A DC

PV (Solar Input) Specifications

• Maximum PV Input Power: 9000 W
• MPPT Tracking Voltage Range: 60 – 450 V DC
• Optimal Operating Voltage: 300 – 340 V DC
• Maximum PV Voltage (Absolute): 500 V DC
• Maximum PV Input Current: 27 A
• Maximum PV Short Circuit Current: 30 A

AC Input Specifications

• Nominal Voltage: 220 / 230 V AC
• Maximum Input Current: 40 A
• Frequency: 50 / 60 Hz

AC Output Specifications

• Nominal Voltage: 220 / 230 V AC
• Maximum Output Current: 27 A
• Frequency: 50 / 60 Hz
• Rated Power: 6000 VA
• Power Factor: 1.0

Overload Protection

• 110% – 130% Load: 10 seconds
• >150% Load: 0.2 seconds

Protection & Build

• Ingress Protection: IP21 (with dust ingress protection kit)
• Anti-dust Design: Yes
• Cooling Noise Level: ≤ 50 dB(A)

Environmental Conditions

• Operating Temperature: -10°C to +55°C
  • (Output derates above +50°C)
• Storage Temperature: -15°C to +60°C
• Humidity: 20% – 95% (Non-condensing)
• Altitude:
  • ≤1000m: Full performance
  • Up to 4000m with derating (IEC62040 compliant)

Physical Specifications

• Dimensions (W×H×D): 334 × 413 × 119 mm
• Net Weight: 8.82 kg

Display & Communication

• Display: LCD (shows running mode, load, input/output, etc.)
• Communication Interface: RS232
• Baud Rate: 2400 (9600 for lower variants like 3K6)

Key Highlights

• High-efficiency MPPT (99.5%)
• Battery-less operation support
• Handles high PV input (up to 9kW)
• Smart monitoring via mobile app
• Durable with soft-start & dust protection
