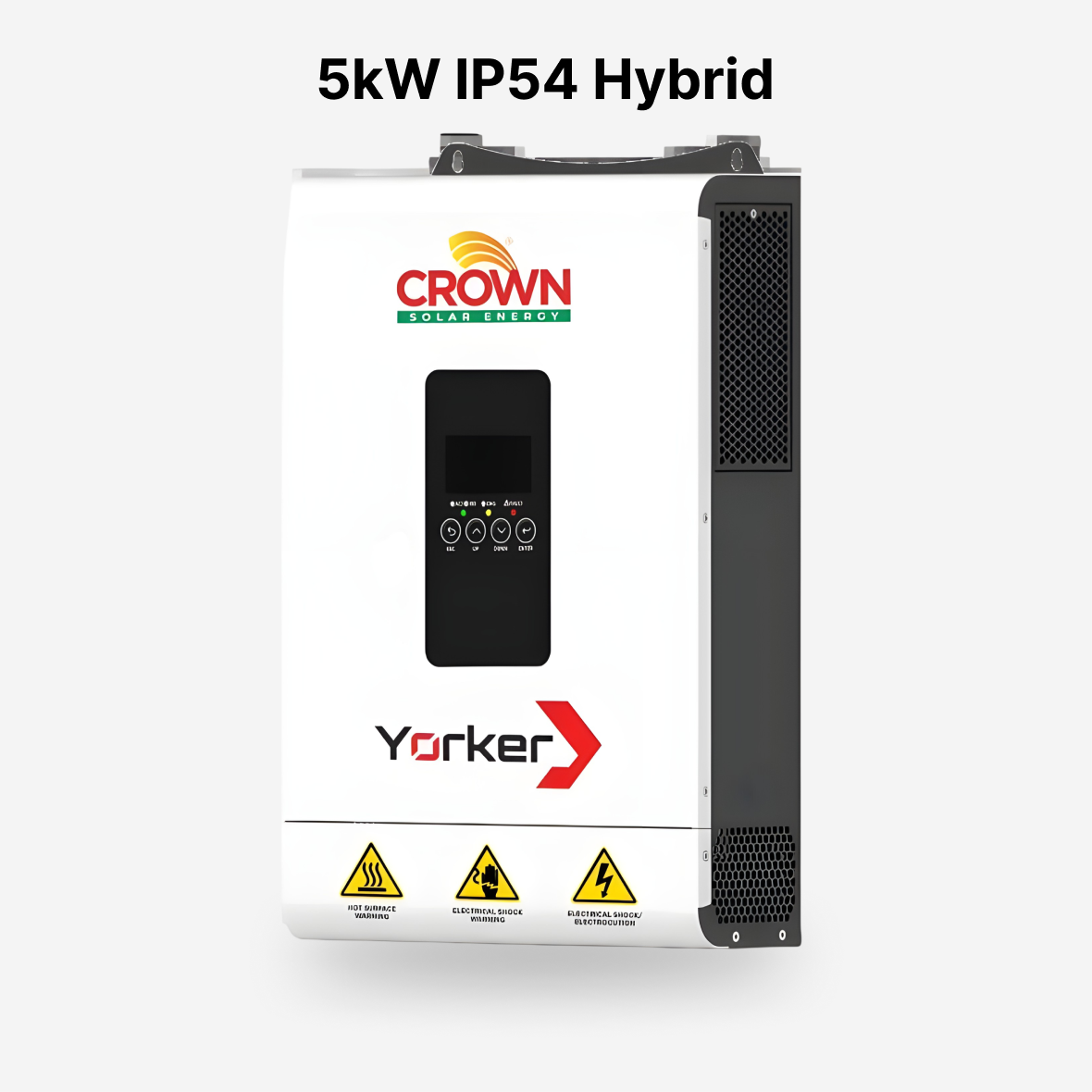

Crown Yorker Pro 5kW Pure Shine Wave Solar Inverter

Crown Yorker Pro 5kW Pure Sine Wave Hybrid Solar Inverter

Key Features

• 5kW output power with battery and PV
• 4kW output power in battery-only mode
• Built-in MPPT solar charge controller with up to 99.5% tracking efficiency
• Supports up to 9000W PV input
• Supports 600W+ solar panels
• 160A maximum PV charging current
• Works without a battery
• Supports Crown Elektraboost and lead-acid batteries
• Bidirectional DC soft-start technology for extended service life
• Ti28 Series DSP for fast, stable, and reliable operation
• Wi-Fi monitoring through the Solar of Things App
• LCD HMI display
• RS485, CAN, and RS232 communication interfaces
• Pure sinusoidal waveform output
• 220/230V nominal AC input
• 208/220/230/240V selectable AC output
• IP54 ingress protection rating
• Designed for operation from -10°C to 60°C

Product Specifications

Product Details

The Crown Yorker Pro 5kW Pure Sine Wave Hybrid Solar Inverter is a single-phase hybrid inverter designed to combine solar power, battery storage, and AC input for reliable energy management. The CSE-Y(P)5K24VP1 provides 5kW output with battery and PV, while battery-only operation provides up to 4kW.

The inverter features a built-in MPPT solar charge controller with up to 99.5% tracking efficiency and supports up to 9000W of PV input power. With an MPPT operating range of 60–450Vdc and a maximum PV voltage of 500Vdc, it is designed to accommodate high-power solar panel configurations, including 600W+ solar panels.

The Crown Yorker Pro uses a Ti28 Series DSP for fast, stable, and reliable operation. It also supports operation without a battery, while compatibility with Crown Elektraboost and lead-acid batteries provides flexibility for different energy-storage requirements.

For monitoring and communication, the inverter includes an HMI LCD display, RS485, CAN, RS232, and Wi-Fi monitoring through the Solar of Things App. Its pure sinusoidal output supports selectable 208/220/230/240VAC output voltage.

The Crown Yorker Pro 5kW has an IP54 ingress protection rating and operates from -10°C to 60°C, making it suitable for a wide range of residential and commercial solar applications.
