Crown Yorker 2kW Pure Shine Wave Solar Inverter

Crown Yorker 2kW Single Phase Hybrid Solar Inverter

Key Features

• 2kW maximum continuous output power with battery + PV
• 1.6kW maximum continuous output power on battery
• Built-in MPPT solar charge controller with tracking efficiency up to 99.5%
• Supports up to 3000W PV input power
• Supports 700W+ solar panels
• 100A maximum continuous battery charging current
• Supports AGM, FLD, LIB, FEL, and CUS battery types
• Works without a battery
• TI28 Series DSP for fast, stable, and reliable operation
• Bidirectional DC soft-start technology for extended inverter service life
• Supports Crown Elektra Boost lithium and lead-acid batteries
• LCD display for system monitoring
• RS485, CAN, and RS232 communication interfaces
• Built-in Wi-Fi for monitoring and communication
• Single-phase operation
• Power factor of 1
• Designed for operation in temperatures from -10°C to 60°C
• Anti-dust kit support

Product Specifications

Product Details

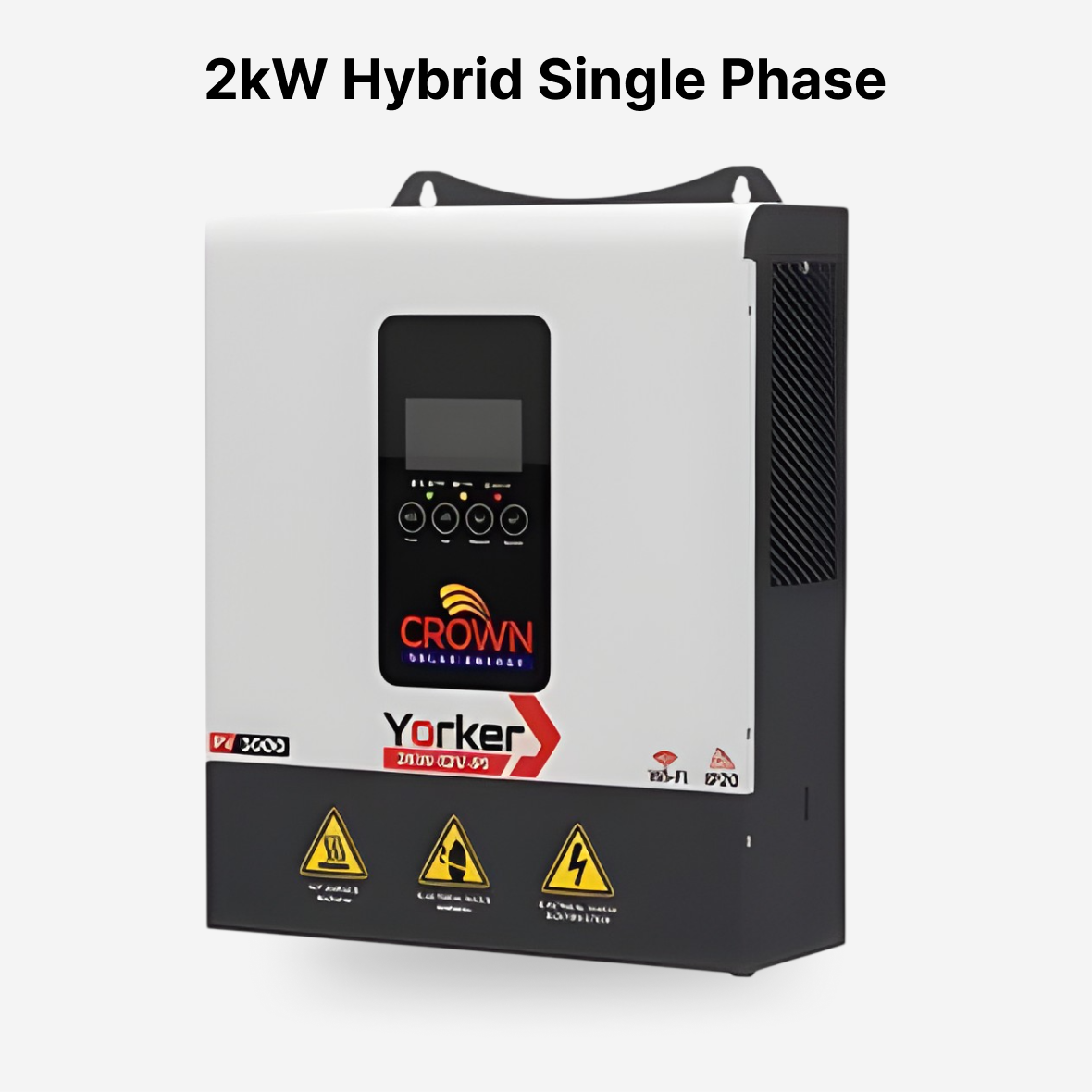

The Crown Yorker 2kW Single Phase Hybrid Solar Inverter, model CSE-Y2K12VP1, is a compact hybrid inverter designed to combine solar power, battery storage, and AC power for reliable energy management. It provides up to 2kW continuous output power when using battery and PV, while battery-only operation supports up to 1.6kW.

The inverter features a built-in MPPT solar charge controller with tracking efficiency of up to 99.5% and supports up to 3000W of PV input power. Its PV input supports an operating voltage range of 40–450Vdc, with an absolute maximum PV voltage of 450Vdc and maximum operating PV input current of 18A.

The Crown Yorker 2kW supports multiple battery types, including AGM, FLD, LIB, FEL, and CUS, with a maximum continuous charging current of 100A. It also supports Crown Elektra Boost lithium and lead-acid batteries. The inverter can operate without a battery, providing additional flexibility for solar applications.

For monitoring and communication, the inverter includes an LCD display, RS485, CAN, RS232, and Wi-Fi. Its TI28 Series DSP provides fast and stable operation, while bidirectional DC soft-start technology is designed to extend the inverter's service life.

The inverter operates from -10°C to 60°C, supports humidity levels of 5%–95% non-condensing, and can operate at altitudes up to 4000m with derating above 2000m. The compact unit measures 338 × 268 × 104mm and weighs approximately 4.5kg. The supplied datasheet does not specify an IP rating, so no IP rating should be claimed in the product listing.
