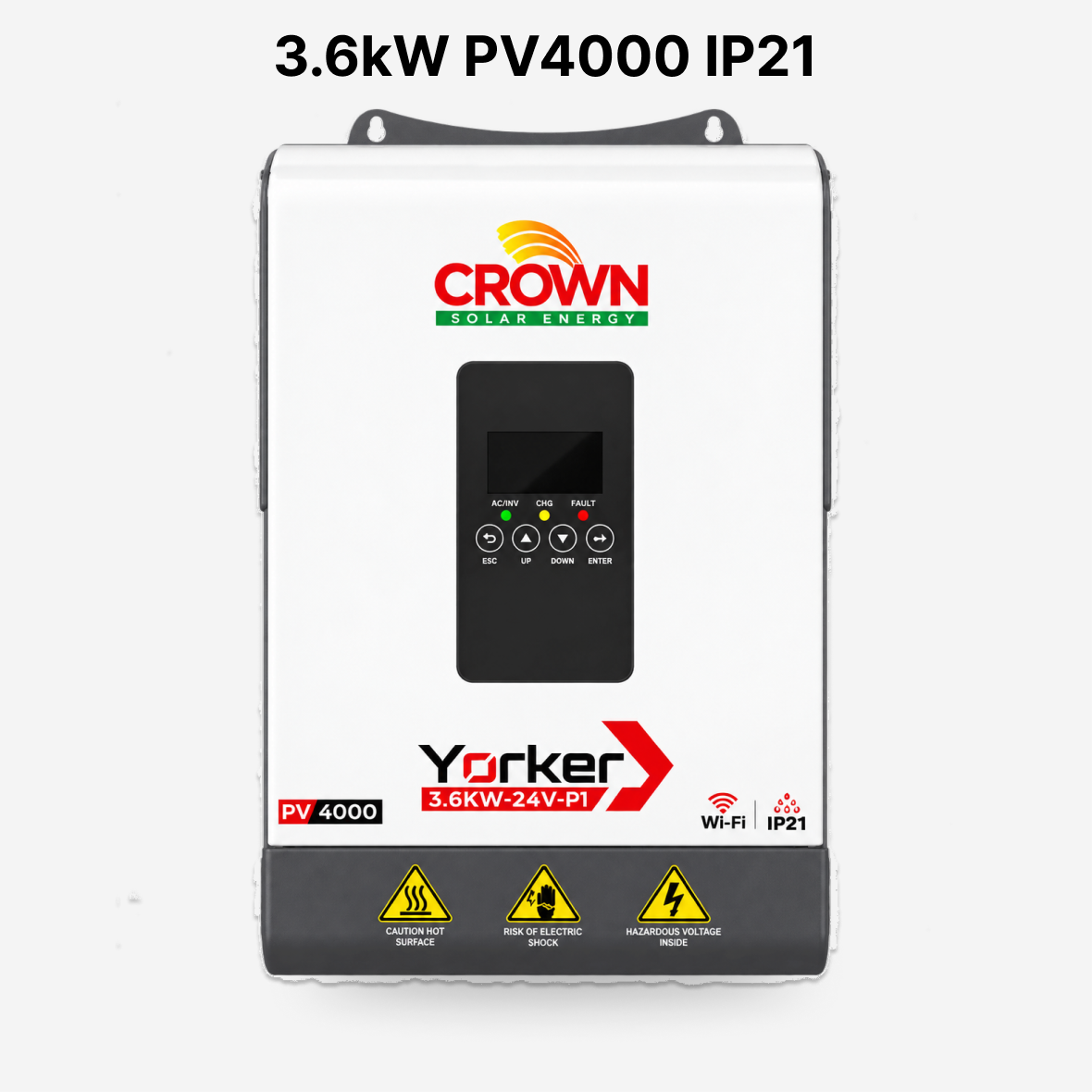

Crown Yorker 3.6kW Off-Grid Single Phase Hybrid Solar Inverter

Download Product Datasheet

Crown Solar Energy Yorker 3.6kW – Off-Grid Single Phase Hybrid Inverter:

The Crown Yorker 3.6kW is an off-grid single phase hybrid inverter designed for homes and businesses that want reliable backup power with efficient solar charging. It has a built-in MPPT solar charge controller with tracking efficiency up to 99.5 percent, works with both lithium and lead-acid batteries, and can run without a battery connected. It supports parallel operation with up to 6 units for higher power needs. It comes with a 3-year warranty.

Key Features

• Built-in MPPT solar charge controller, up to 99.5 percent tracking efficiency
• Works with lithium and lead-acid batteries, including Crown Elektraboost batteries
• Can operate without a battery connected
• Parallel operation supported, up to 6 units
• Bidirectional DC soft start for longer service life
• Remote monitoring through the Solar of Things app
• IP21 protection rating
• Anti-dust kit included
• 3-year warranty

Specifications

• Rated Output Power: 4000W / 4000VA
• Maximum PV Input Power: 6000W
• Maximum PV Input Current: 18A
• MPPT Tracking Range: 120V to 430V DC
• Best PV Operating Voltage: 300V to 340V DC
• Maximum PV Open Circuit Voltage: 500V DC
• AC Output Voltage: 220/230VAC
• AC Output Frequency: 50/60Hz
• Maximum Continuous AC Output Current: 15.6A
• Power Factor: 1
• Battery Type: Lithium or lead-acid
• Battery Voltage Range: 42V to 56.4V DC
• Nominal Battery Voltage: 48V DC
• Maximum Continuous Charge Current: 80A
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity: 20 percent to 95 percent, non-condensing
• Noise Level: 50dBA or less
• Display: LCD, shows running mode, load, input, and output
