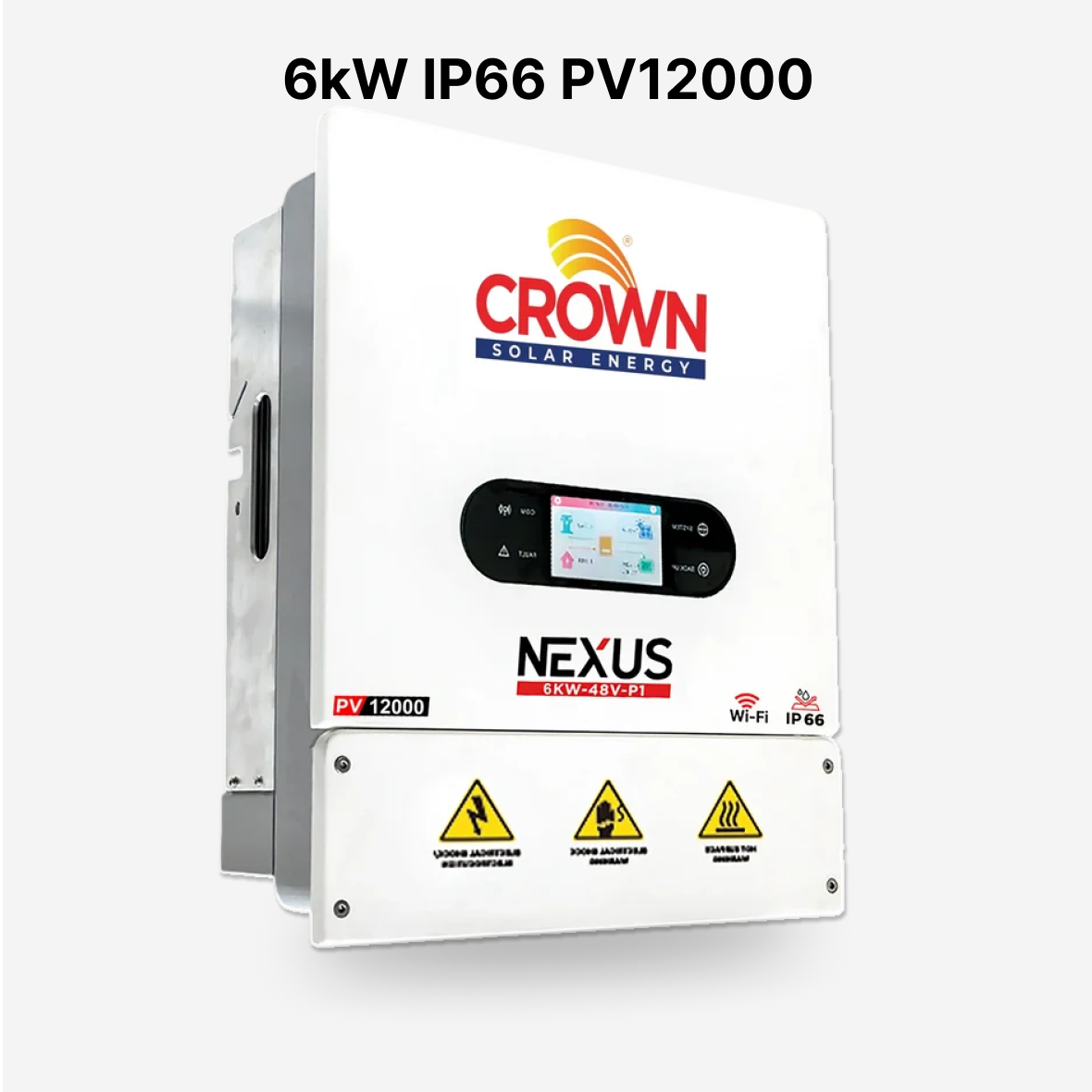

Crown Nexus 6kW PV12,000 Single Phase Hybrid Solar Inverter

Crown Solar Energy Nexus 6kW Single-Phase Hybrid Inverter

Key Features

• HF isolation for enhanced electrical safety
• Up to 2× PV oversizing capability for greater solar yield
• 6kW rated output power
• Parallel operation of up to 6 inverters
• IP66 outdoor protection rating
• Dual output for smart and prioritized load control
• Built-in BMS for safer battery integration
• Supports lithium and lead-acid batteries via BMS
• 6 programmable charging and discharging time periods
• Built-in Wi-Fi connectivity
• Remote monitoring through the Solar of Things app
• Supports both on-grid and off-grid operation
• Wide 150V–450V DC input voltage range
• AC surge protection category OVC II
• DC surge protection category OVC III
• 5-year complete replacement warranty

Product Specifications

Product Details

The Crown Solar Energy Nexus 6kW Single-Phase Hybrid Inverter (CSE-N6K48VP1) is a high-performance hybrid inverter designed for reliable energy management in modern residential and small commercial solar systems. With a 6kW rated output and support for up to 2× PV oversizing, it allows greater solar input to maximize overall energy harvesting.

Designed for outdoor installation, the Nexus features an IP66 protection rating, providing protection against harsh weather conditions. Its HF isolation technology enhances electrical safety, while AC OVC II and DC OVC III surge protection categories provide additional system protection.

The inverter supports lithium and lead-acid batteries through BMS integration and includes an inbuilt BMS for safer battery management. Six programmable charging and discharging periods allow users to schedule battery operation according to their energy requirements.

With dual outputs, the Crown Nexus 6kW provides smart load control and prioritized power management. It also supports on-grid and off-grid operation, while parallel capability allows up to six units to be connected for increased system capacity.

Built-in Wi-Fi connectivity enables remote monitoring through the Solar of Things app, giving users convenient access to system information and performance. The Crown Solar Energy Nexus 6kW combines high PV oversizing capability, outdoor-rated construction, flexible battery compatibility, and advanced energy management in one hybrid inverter.
