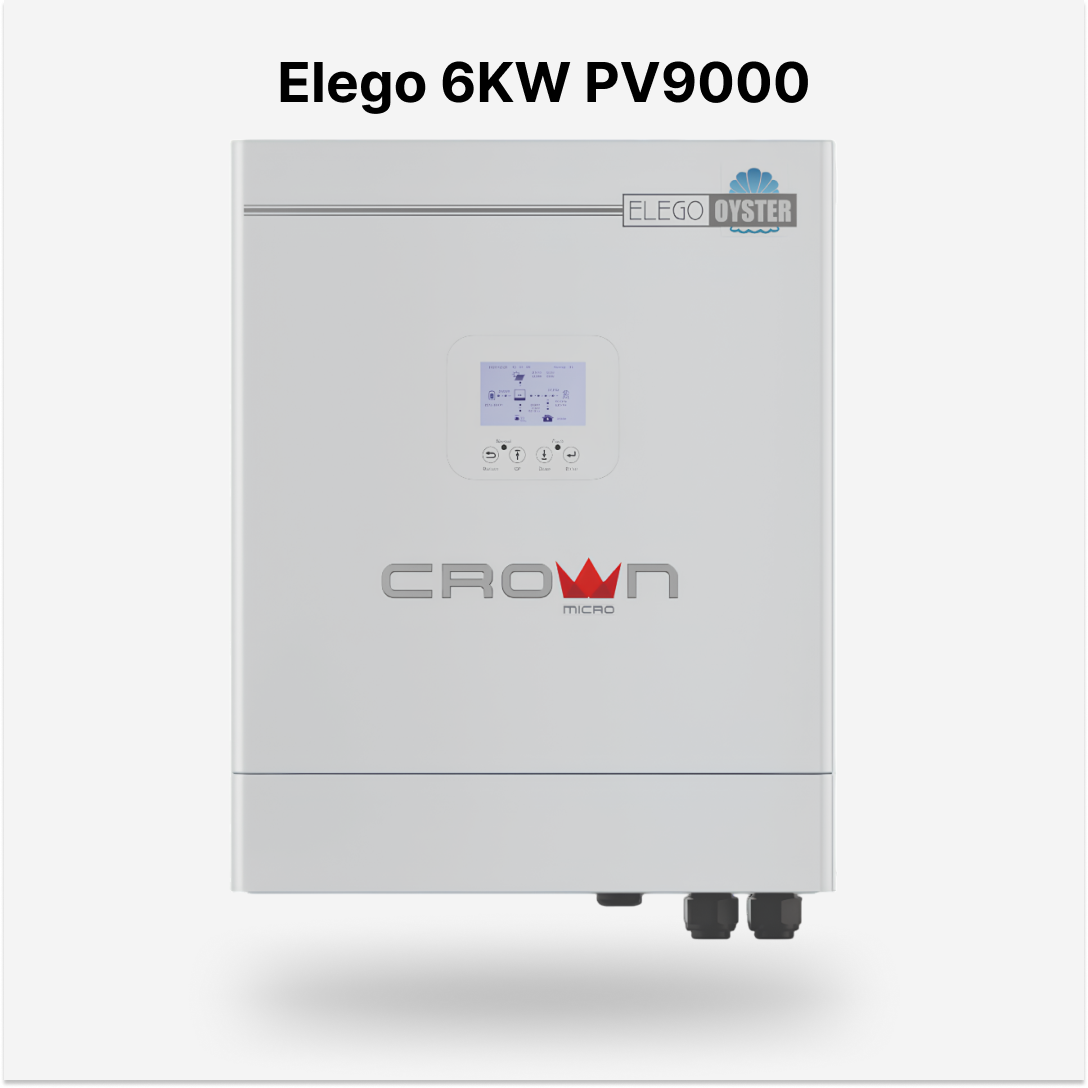

ELEGO OYSTER 6KW – Hybrid Single Phase Solar Inverter (PV-9000)
Overview
The ELEGO OYSTER 6KW hybrid inverter is a smart, efficient, and durable solar power solution designed for homes and small businesses.
It supports on-grid, off-grid, and hybrid operation — giving you full control over solar, battery, and grid energy for 24/7 backup.
🔧 Key Features
-
3-in-1 System: Works on-grid, off-grid, or hybrid
-
Dual MPPT Inputs: Ensures maximum solar conversion
-
Supports All Batteries: Lead-acid and Lithium-ion (48V)
-
Smart Cooling + Aluminum Casing: Long lifespan & corrosion protection
-
Fast UPS Switching (<20 ms) for uninterrupted power
-
Parallel Operation: Connect up to 6 inverters for expansion
-
Built-in Surge & Short Circuit Protection
-
Full Remote Monitoring: via mobile app or web (Wi-Fi / RS485 / CAN)
-
IP66 Weather-Proof Design – suitable for outdoor installation
-
LCD RGB Display: User-friendly real-time control
Technical Specifications
| Category | Details |
|---|---|
| Model | ELEGO-OYSTER-6KW (PV-9000) |
| Rated Power | 6000VA / 6000W |
| Max. PV Array Power | 9000W |
| Rated PV Input Voltage | 360V |
| PV Input Voltage Range | 100 – 530 V |
| MPPT Voltage Range | 150 – 425 V |
| Number of MPPTs | 2 |
| Max PV Input Current per MPPT | 18 A |
| Max PV Short-Circuit Current per MPPT | 32 A |
| Battery Type | Lithium / Lead-acid |
| Rated Battery Voltage | 48 V |
| Battery Voltage Range | 40 – 60 V |
| Max. Charge / Discharge Current | 125 A / 140 A |
| Max. Charge / Discharge Power | 6000 W |
| Force Wake-up from PV | Yes |
| AC Rated Voltage | 230 V |
| Rated AC Frequency | 50 / 60 Hz |
| Rated AC Output Current | 26 A |
| Max. AC Input Power | 12000 W |
| Power Factor | 0.99 |
| THDI | < 3 % |
| Max. Continuous AC Pass-Through Current | 52 A |
| UPS Rated Output Power | 6000 W |
| UPS Switching Time | < 20 ms |
| Waveform | Pure Sine Wave |
| THDV | < 5 % |
| MPPT Efficiency | 99.9 % |
| Max. Inverter Efficiency | 97.3 % |
| Charge / Discharge Efficiency | 94.5 % |
| Surge Protection (AC/DC) | Type III |
| Cooling Type | Smart Cooling |
| Display Type | LCD + RGB |
| Communication | RS485 / Wi-Fi / CAN |
| Enclosure Protection | IP66 |
| Dimensions (W × H × D) | 487 × 455 × 211.7 mm |
| Weight | 29 kg |
| Noise Level | < 25 dB |
| Operating Temperature Range | –25 °C to +60 °C |
| Altitude Limit | ≤ 2000 m |
| Topology | Transformer-less |
Benefits
-
Excellent solar yield with 99.9 % MPPT efficiency
-
Durable IP66 outdoor-ready body
-
Seamless switching during load shedding
-
Expandable design for future solar growth
-
Works with Crown 51.2V – 100Ah or similar lithium batteries
-
Ideal for 6 kW to 9 kW solar systems
