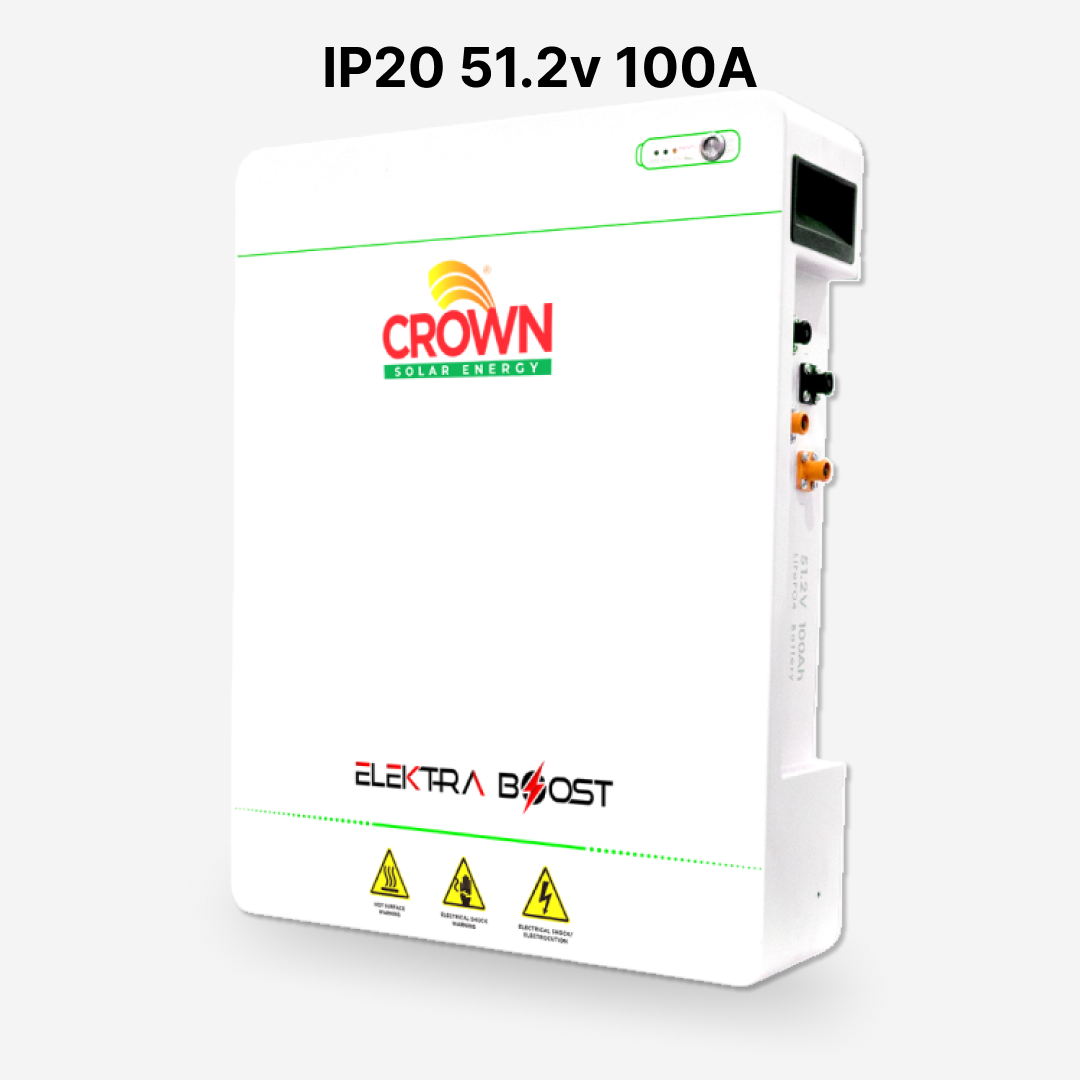

Crown Electra Boost 5kW 100A Lithium Battery

Download Product Datasheet

Battery Specs:

• Model: CSE-ESS-51.2V100Ah
• Battery Type: LiFePO4 (LFP)
• Battery Capacity: 5.12kWh
• Usable Capacity: 4.6kWh
• Voltage: 51.2V
• Capacity: 100Ah

Voltage Range

• Operating Voltage: 40V – 57.6V
• Recommended Voltage: 44.8V – 56.8V

Charging / Power

• Recommended Charge & Discharge Current: 50A
• Recommended Power: 2.56kW
• Max Charge Current: 100A
• Max Discharge Current: 100A
• Max Charge Power: 5.12kW
• Max Discharge Power: 5.12kW

Battery Performance

• DOD: 90%
• Cycle Life: 6000+ cycles


Temperature

• Charging Temperature: 0°C to 55°C
• Discharge Temperature: -20°C to 55°C
• Recommended Temperature: 15°C to 30°C

Build

• Weight: 45kg
• Size: 454 × 585 × 135 mm
• Protection Rating: IP20

Connectivity

• RS485
• RS232
• CAN

Installation

• Floor Stand

Cooling

• Natural Cooling

Environment

• Indoor Use
• Humidity: 5% – 95%
• Max Altitude: 2000m

Certifications

• CE
• IEC62619
• UN38.3

Compatibility

• Works with:
  • Single-phase inverters
  • Three-phase inverters
  • Hybrid inverters
  • Retrofit inverters
