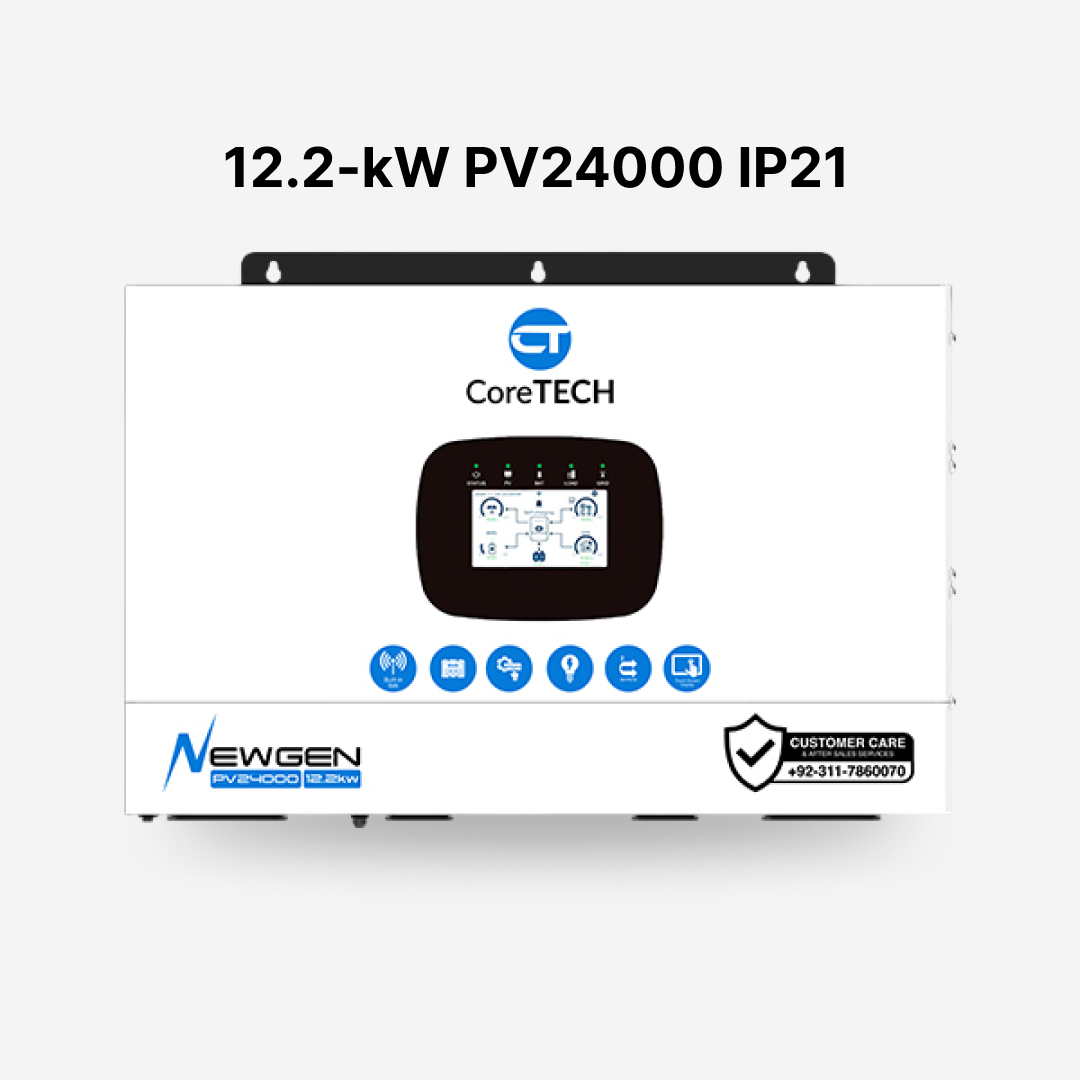

CoreTech NewGen 12.2kW PV 24,000 Single-Phase Hybrid Solar Inverter

CoreTECH PV24000 12.2kW Single-Phase Hybrid Inverter

Key Features

• 12.2kW nominal AC output power
• Up to 24kW maximum PV input power
• Up to 200% PV access and 150% PV oversizing capability
• 48V battery system with up to 280A maximum battery discharge current
• Supports Li-Ion and lead-acid batteries
• 2 MPPT trackers with 2 strings per MPPT
• Up to 500V maximum PV input voltage
• 90–450V MPPT voltage range
• 99.9% or higher MPPT efficiency
• 94% peak inverter efficiency
• 4ms UPS-level transfer time for seamless power switching
• Supports up to 2× rated power for 5 seconds in off-grid mode
• Dual AC outputs for smart load management
• GEN port for diesel generator connection
• Parallel connection of up to 9 units
• Built-in Wi-Fi, CAN, RS485, USB, and dry-contact communication
• 4.3-inch 800 × 480 interactive touchscreen display
• IP21 protection with fan cooling
• Designed for full-power operation under high-temperature conditions

Product Specifications

Product Details

The CoreTECH PV24000 12.2kW Single-Phase Hybrid Inverter is a high-capacity energy storage inverter designed for residential, commercial, and demanding backup power applications. With a 12.2kW nominal output and up to 24kW PV input capacity, it provides substantial solar input capability while supporting up to 150% PV oversizing.

The inverter operates with a 48V battery system and supports Li-Ion and lead-acid batteries. Its battery system can handle up to 280A of discharge current, enabling higher loads to be powered directly from the battery. It also supports Li-Ion battery activation and CAN/RS485 communication.

For uninterrupted power, the inverter provides a 4ms UPS-level transfer time and can deliver up to twice its rated power for 5 seconds in off-grid mode. Dual AC outputs allow smart load management, while the dedicated GEN port provides flexible generator integration.

With two MPPT trackers, 24kW maximum PV input power, 99.9% or higher MPPT efficiency, built-in Wi-Fi, and parallel capability for up to nine units, the CoreTECH 12.2kW hybrid inverter offers a flexible solution for high-power solar and energy storage systems.
