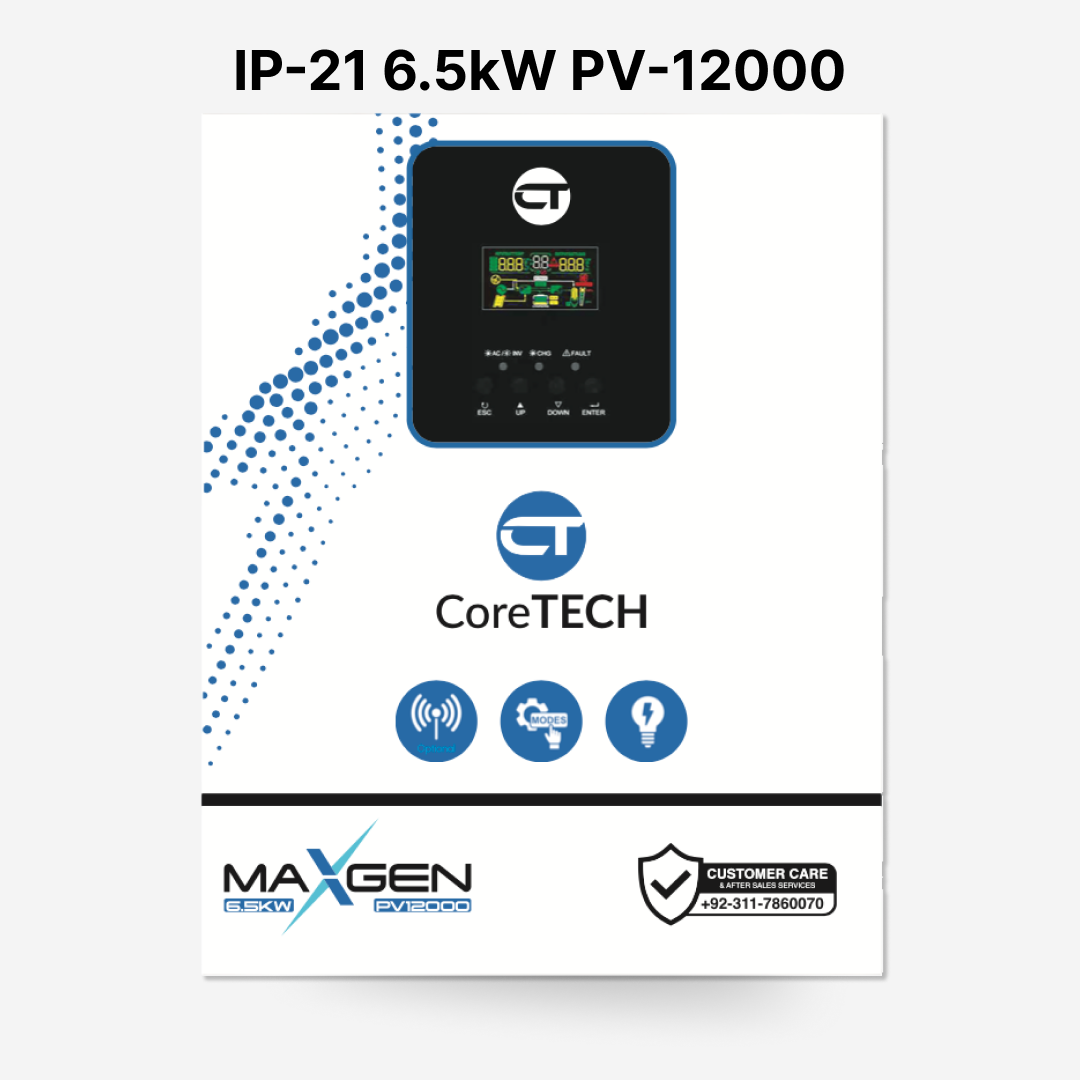

CoreTECH MaxGen 6.5kW PV12000 Solar Inverter

Download Product Datasheet

CoreTECH MaxGen 6.5KW PV12000:
Basic:

• Model: PV12000
• Rated Power: 6.5kW
• Type: Pure Sine Wave Solar Inverter
• Output Voltage: 230V AC
• Frequency: 50Hz / 60Hz

Solar (PV) Input

• Maximum PV Input Power: 12,000W (6000W + 6000W)
• Maximum PV Voltage: 500V DC
• Startup Voltage: 120V DC
• MPPT Voltage Range: 70V – 400V DC
• Rated PV Voltage: 370V DC
• Maximum PV Input Current: 18A + 18A
• MPPTs: 2

AC Input

• Nominal Input Voltage: 230V AC
• Maximum AC Input Voltage: 300V AC
• Input Frequency: 50Hz / 60Hz
• Voltage Range:
  • UPS Mode: 170V – 280V
  • Appliance Mode: 90V – 280V

AC Output

• Rated Output Power: 6.5kW
• Output Waveform: Pure Sine Wave
• Voltage Regulation: 230V ±5%
• Output Frequency: 50Hz / 60Hz

Overload & Surge

• 105–110% Load: 30 seconds
• ≥110% Load: 10 seconds
• ≥150% Load: 1 second
• Surge Capacity: 2× Rated Power for 2 seconds

Transfer Time

• UPS Mode: 10ms
• Appliance Mode: 20ms

Power Consumption

• No-load Consumption: <10W

Protection

• Circuit Breaker Short-Circuit Protection
• Anti-Islanding Protection
• Overload Protection
• Surge Protection
• Grid Protection

Physical

• Dimensions: 335.5 × 245 × 103 mm
• Weight: 4.5 kg

Environment

• Operating Temperature: -10°C to 55°C
• Derating Above: 45°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% – 95% (Non-condensing)

Certification

• CE Certified

Quick Summary

• Power: 6.5kW
• PV Capacity: 12kW
• PV Voltage: 500V Max
• MPPTs: 2
• PV Current: 18A + 18A
• Transfer Time: 10ms
• Weight: 4.5kg
• Waveform: Pure Sine Wave
• Certification: CE
