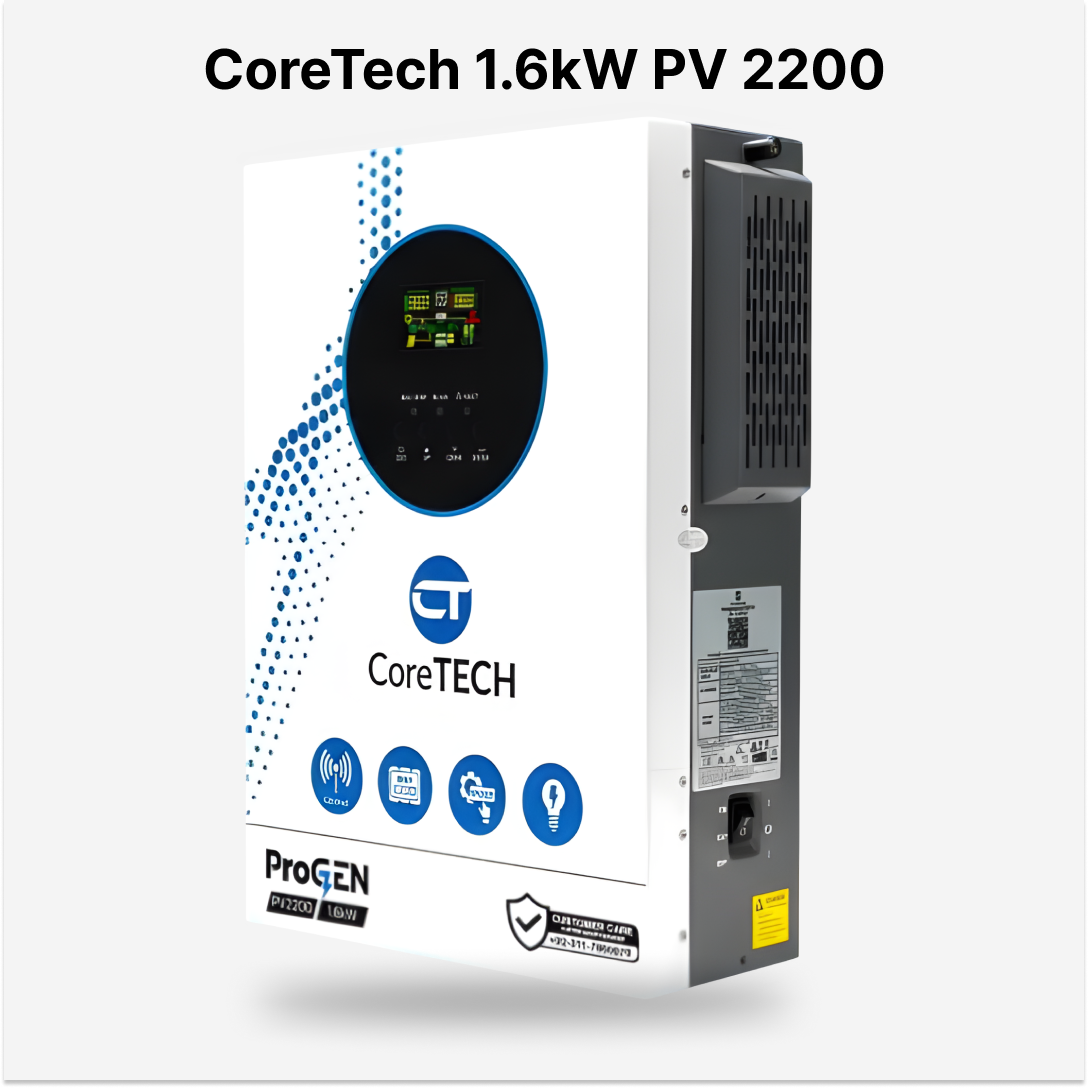

CoreTech 1.6kW PV 2200 IP21 OffGrid Solar Inverter

Download Product Datasheet

CoreTECH ProGEN PV 2200 – 1.6kW OffGrid Solar Inverter

Product Overview

The CoreTECH ProGEN PV 2200 (1.6kW) is a compact hybrid solar inverter designed to power home appliances efficiently. It converts solar energy into battery storage and provides uninterrupted power during night time or power outages.

General Specifications

• Model: ProGEN PV 2200

• Rated Output Power: 1600W

• Maximum PV Input Power: 2200W

• Peak Power: 3200VA

• Waveform: Pure Sine Wave

• Efficiency (Battery Mode): Up to 94%

AC Input

• Input Wiring: L + N + PE

• Rated Input Voltage: 220 / 230 / 240 VAC

• Voltage Range:

  • 90–280 VAC ±3V (APL Mode – Home Appliances)

  • 170–280 VAC ±3V (UPS Mode – Computers)

• Frequency: 50Hz / 60Hz (Auto Adaptive)

AC Output

• Rated Capacity: 1600W

• Output Voltage: 220 / 230 / 240 VAC ±5%

• Output Frequency: 50 / 60 Hz ±0.1%

• Transfer Time:

  • UPS Mode (Computers): 10ms

  • APL Mode (Appliances): 20ms

Battery

• Battery Voltage: 12V DC

• Constant Charging Voltage (Adjustable): 14.1V DC

• Float Charging Voltage (Adjustable): 13.5V DC

Solar Charging (MPPT)

• PV Charging Mode: MPPT

• Max PV Input Power: 2200W

• MPPT Voltage Range: 30 – 500V DC

• Best Operating Voltage: 300 – 400V DC

• Max PV Input Voltage: 500V DC

• Max PV Charging Current: 100A

• Max AC Charging Current: 60A

• Max Total Charging Current: 100A

Display & Interface

• Display: LCD (Running Mode, Load, Input, Output, etc.)

• RS232: Supported (Baud Rate: 2400)

• Communication Options:

  • Lithium Battery BMS Card

  • WiFi Card

  • Dry Contact

• Parallel Operation: ❌ Not Supported

Environmental Conditions

• Operating Temperature: -10°C to 50°C

• Operating Humidity: 20% – 95% (Non-condensing)

• Storage Temperature: -15°C to 60°C

• Altitude:

  • Up to 1000m (Full performance)

  • Max 4000m with derating (IEC 62040)

• Noise Level: ≤ 50 dB

• Ingress Protection: IP21

Ideal For

• Small homes & shops

• Lights, fans, TV, router, computers

• High-voltage solar panels (up to 500V)

• Lithium & lead-acid batteries
