Efficient, Intelligent & Designed for Modern Energy Needs

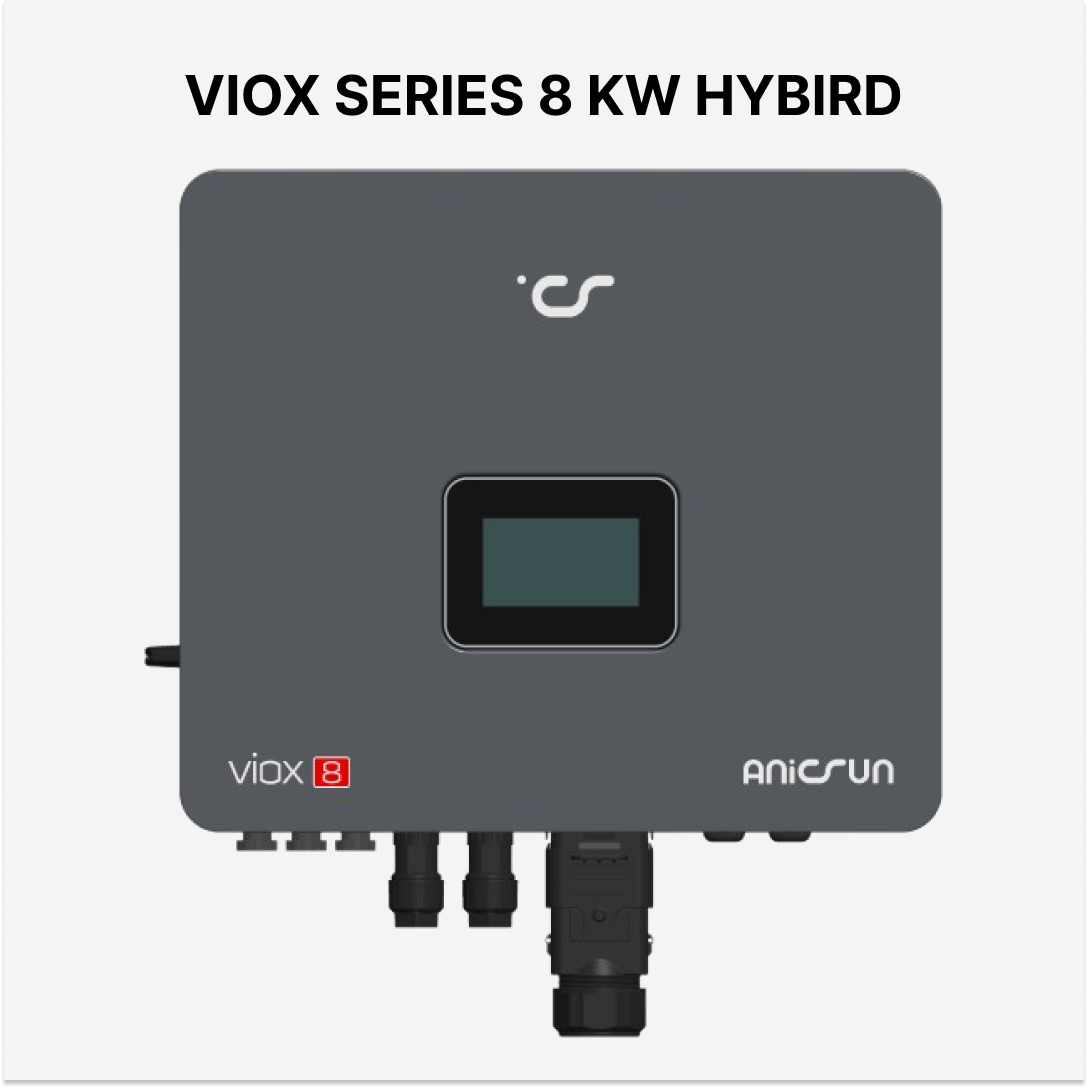

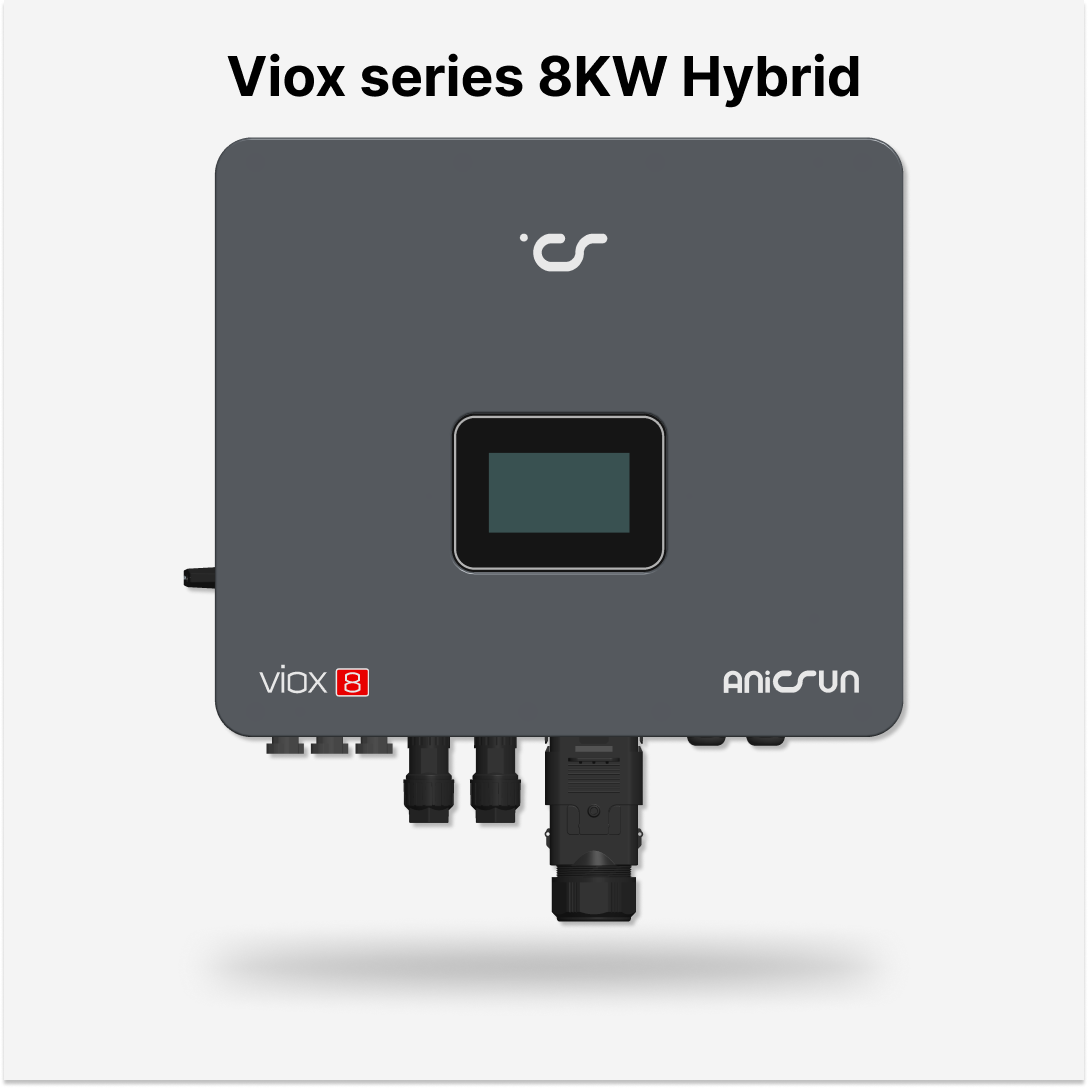

The VIOX Series combines high-performance solar capabilities with intuitive design. Built to support both 6kW and 8kW configurations, it’s ideal for smart energy management in residential and small commercial setups.
| Feature | Details |
|---|---|
| Touch Display | Yes – Interactive LCD Touchscreen |
| Ingress Protection (IP Rating) | IP65 – Dust-tight & Water-resistant |
| Cooling | Natural Airflow |
| RGB Lights | No |
| BMS Support | Yes – Built-in |
| Operating Temperature | -25°C to 60°C |
| Weight | 20.7 kg |
| Dimensions (DxWxH) | 455 x 215 x 385 mm |
| Parameter | Value |
|---|---|
| Rated Power Options | 6kW / 8kW |
| Maximum PV Input Power | 9kW (for 6kW model) |
| 12kW (for 8kW model) | |
| PV Voltage Range | 100V – 550V |
| Max. PV Input Current | 16A |
| Specification | Value |
|---|---|
| Input Voltage | 230 VAC |
| AC Voltage Regulation (Battery Mode) | 230V |
| Efficiency | Max. 97.2% |
| Battery Management System (BMS) | Integrated |
| Feature | Available Options |
|---|---|
| Communication Ports | RS485 / WiFi / GPRS / CAN / DRM |
| Display Type | LCD Touch Screen |
Dual model support: 6kW & 8kW
IP65-rated durable enclosure
Advanced battery protection via BMS
Sleek touchscreen display for real-time monitoring
Supports remote monitoring via WiFi/GPRS
High PV input capacity for greater flexibility
Quiet, fanless operation in extreme environments
